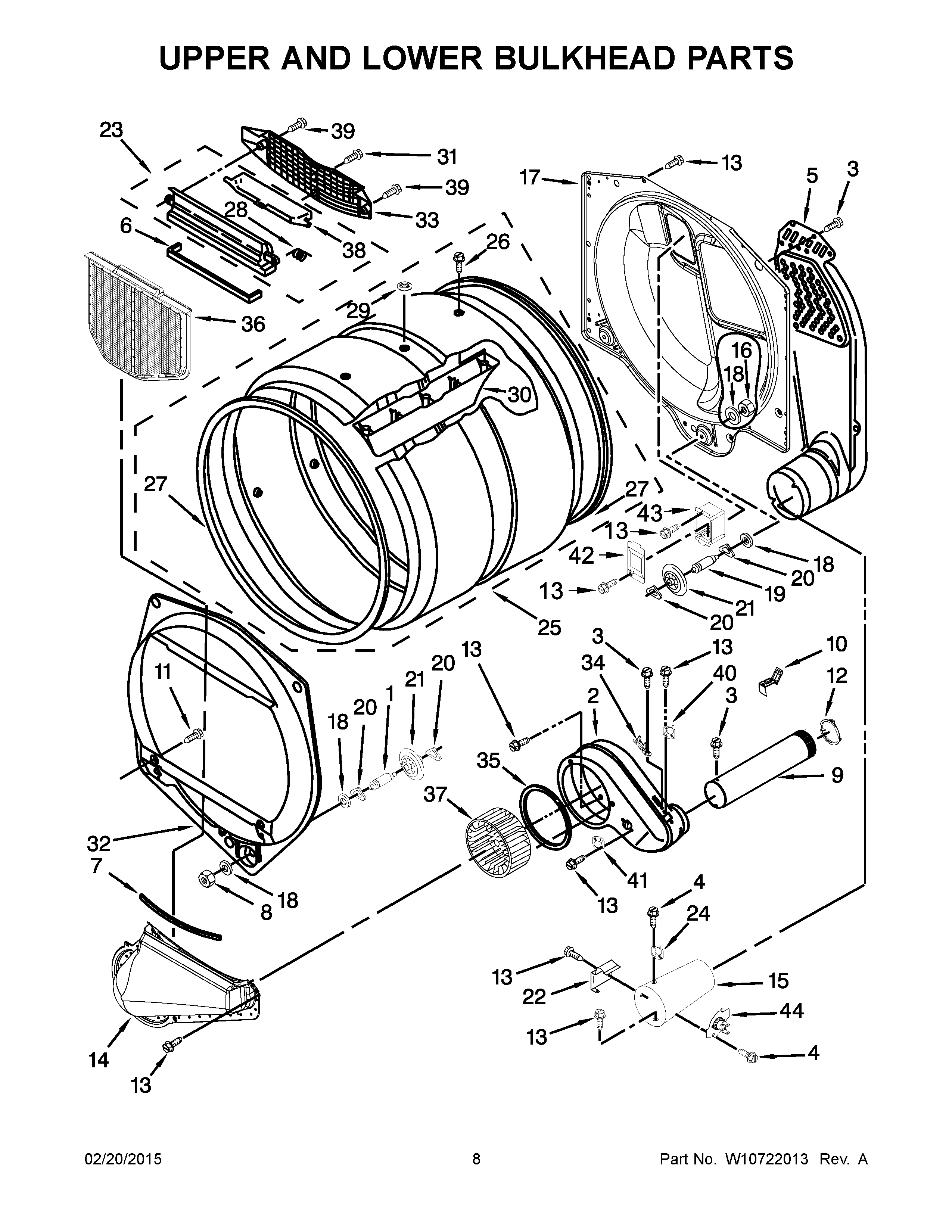

MLG27PDBGW0 05 – UPPER AND LOWER BULKHEAD PARTS

Products

PositionProduct
1SHAFT, DRUM ROLLER RIGHT HAND THREAD
2MAY W10119255
3MAY 8533971
4SCREW,8-18 X 3/8
5MAY 3394346
6MAY 697813
7MAY 697814
8NUT, HEX
9Exhaust Pipe
10CLIP, EXHAUST
11SCREW
12MAY W10344699
13SCREW
14Lint Duct Assembly
15MAY 8573824
16NUT, HEX (LEFT HAND THREAD)
17MAY 8520836
18WASHER
19SHAFT, DRUM ROLLER – LEFT HAND THREAD
20WASHER, TRI RING
21ROLLER, SUPPORT
22MAY 338906
23ASSEMBLY, OUTLET HOUSING
24THERMOSTAT 255° F HIGH LIMIT
25MAY W10545922
26MAY W10219342
27MAY W10521118
28Spring, Lint Screen Door
29CAP, PLUG
30BAFFLE, DRUM
31Screw, 8-18 x 1/2
32BULKHEAD, FRONT
33GRILL, OUTLET
34Fuse, Thermal (91 C)
35SEAL, PLATE COVER
36LINT SCREEN (WHITE)
37MAY W10349492
38MAY W10685668
39SCREW
40THERMOSTAT, CYCLING (140F)
41MAY W10206206
42MAY 3402841
43MAY 8578825
44MAY W10181549
