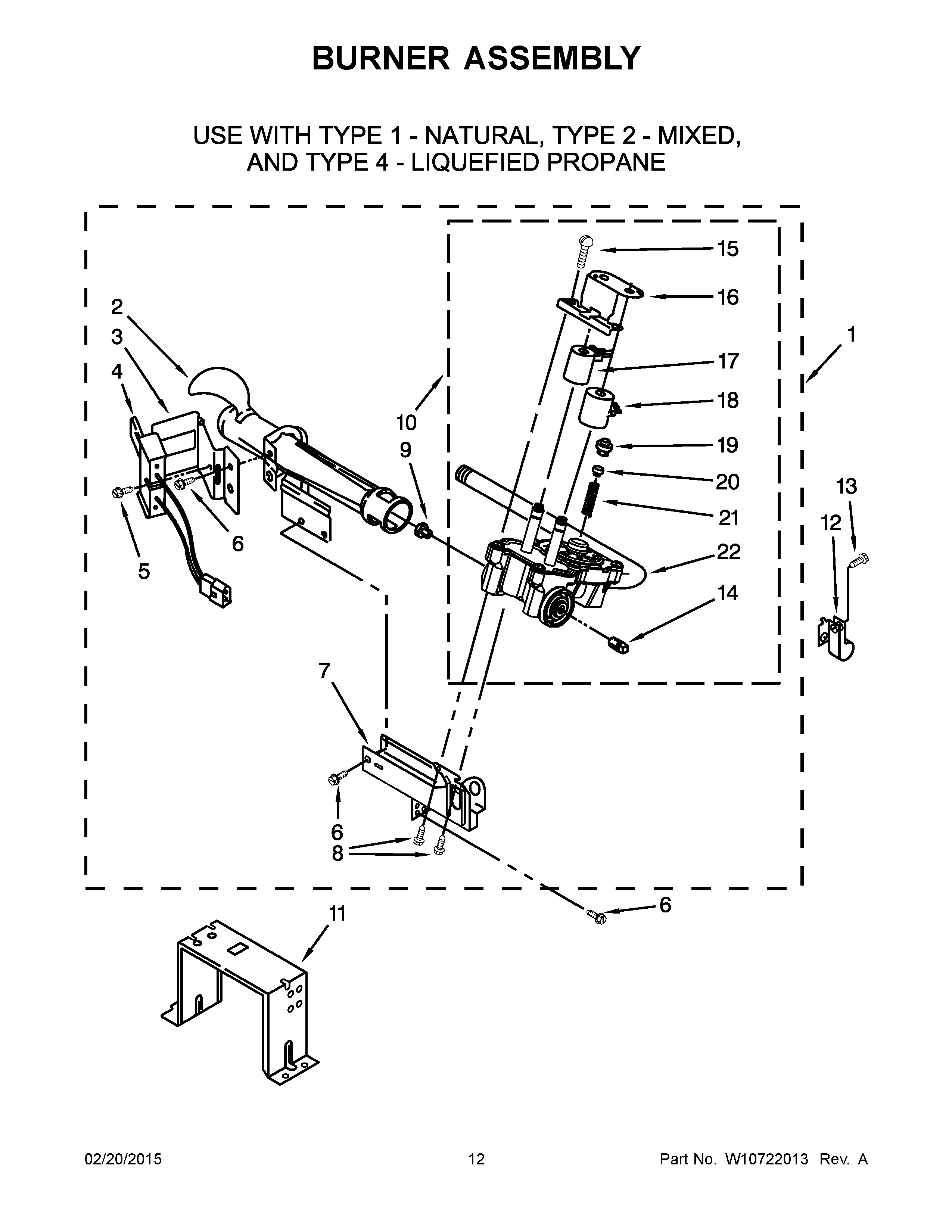

MLG27PDBGW0 07 – BURNER ASSEMBLY

Products

Position	Product
NI	MAY W10233219
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10096909
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY 3389871
8	SCREW
9	ORIFICE, BURNER (TYPE 1)
9A	MAY 234868
10	VALVE, GAS 50 HZ. (COMPLETE)
11	MAY 3389889
12	MAY 3978776
13	SCREW
14	MAY W10295523
15	SCREW, COIL
16	MAY 694538
17	COIL, 50 HZ. (2 TERMINAL) (MAIN)
18	MAY 695298
19	MAY 694424
20	MAY 694423
21	MAY 694422
22	MAY W10097610
