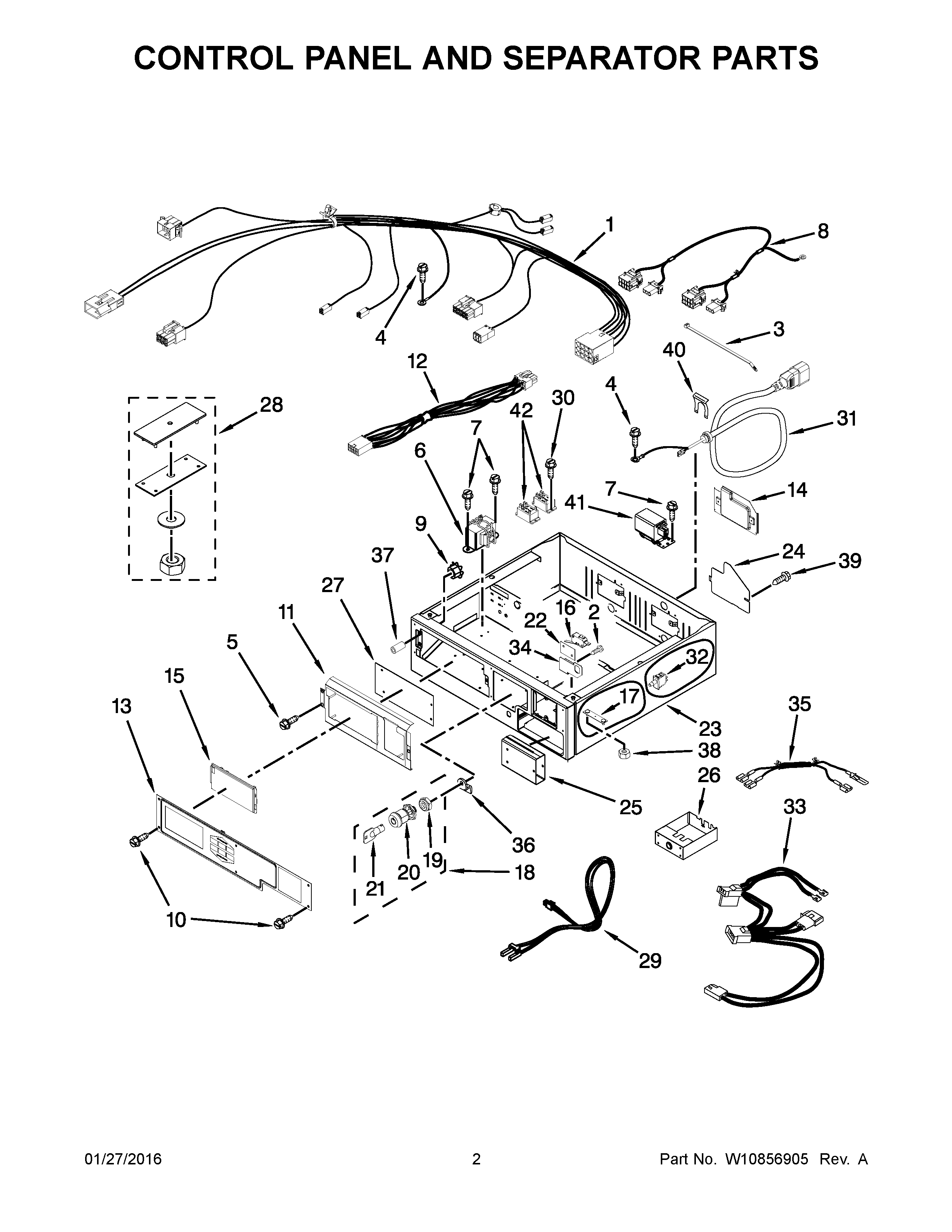

MLG27PDBGW1 02 – CONTROL PANEL AND SEPARATOR PARTS

Products

PositionProduct
NI10A CORD LOCK
NI10A CORD ADAPTER (EUROPEAN)
NI10A CORD ADAPTER (BRITISH)
NILINER (NOT A SERVICEABLE PART)
NIMAY W10476818
1MAY W10807490
2SCREW, 4-40 X 5/8
3MAY 8529895
4SCREW
5MAY W10140652
6MAY W10237957
7MAY 8533971
8MAY W10807493
9NUT
10SCREW
11MAY W10657185
12MAY W10111027
13MAY W10678231
14MAY W10850065
15MAY W10133268
16MAY W10133281
17MOUNTING STRAP, WELD ASSEMBLY
18ASSEMBLY, LOCK ACCESS DOOR
19NUT, HEX
20NUT, HEX
21KEY, ACCESS DOOR
22MAY W10151156
23MAY W10862445
24MAY 3396795
25VAULT BODY, ASSEMBLY
26COIN BOX
27MAY W10678221
28MAY W10169579
29MAY W10226074
30SCREW
31CORD-POWER
32SWITCH, VAULT SERVICE DOOR
33MAY W10250902
34MAY W10160652
35MAY W10272448
36MAY W10233256
37STANDOFF, CIRCUIT BOARD
38NUT, HEX (LEFT HAND THREAD)
39Screw, 8-18 x 3/8
40STRAIN-RELIEF CLIP
41MAY W10189038
42MAY W10258680
