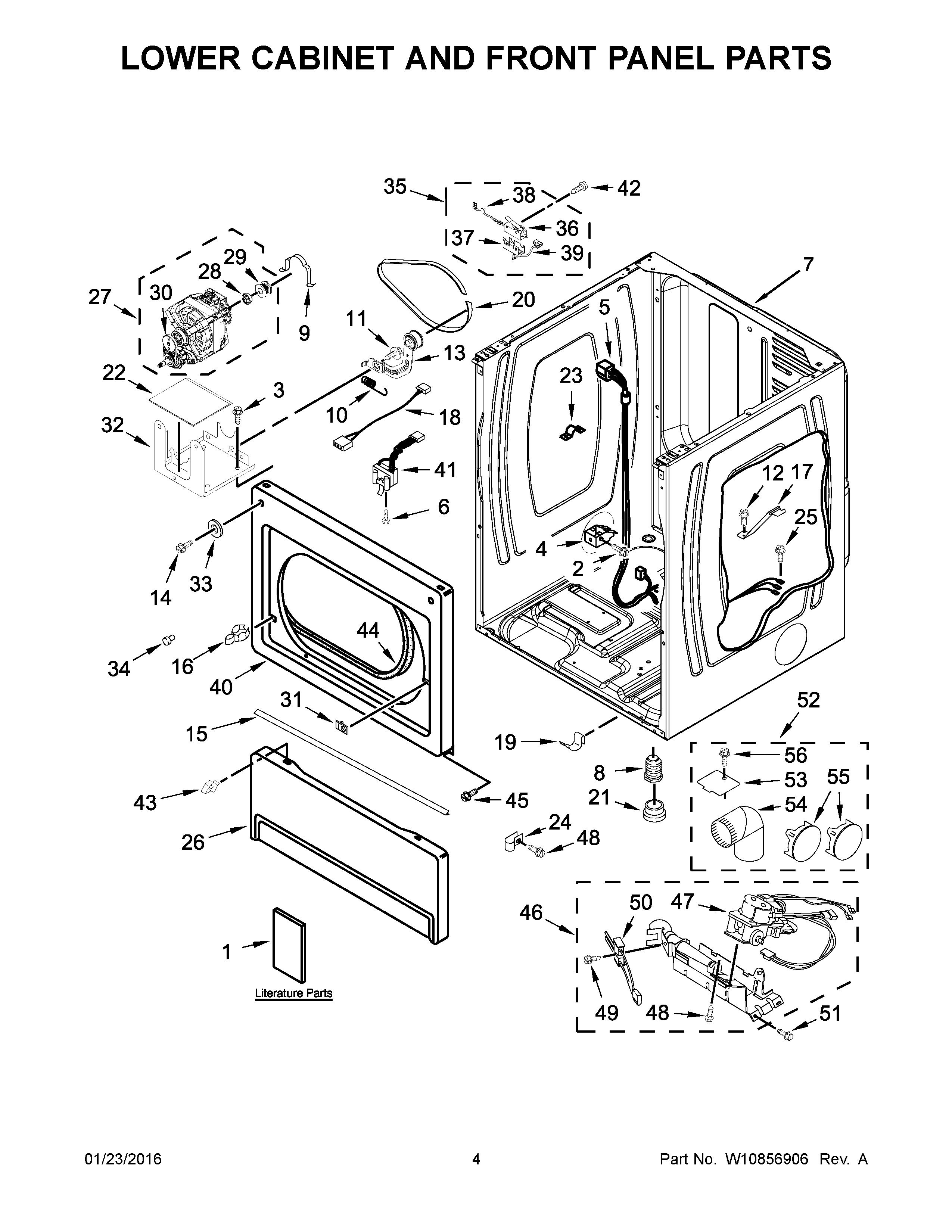

MLG27PDBWW1 03 – LOWER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1A	MAY W10135168
1	MAY W10761035
2	SCREW
3	SCREW
4	CLIP, FRONT PANEL
5	MAY W10807483
6	SCREW
7	MAY W10547697
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
12	Screw
13	MAY W10344192
14	SCREW
15	MAY W10576519
16	Strike, Door
17	MAY 8529757
18	JUMPER, DOOR SWITCH
19	CLIP
20	BELT, DRIVE
21	BOOT, FOOT
22	DAPENING PANEL
23	Clip
24	MAY 3387561
25	SCREW
26	Toe Panel (Includes Item. 2) (White)
27	MAY W10396034
28	MAY 3393657
29	PULLEY, MOTOR
30	MAY 3405160
31	COVER, STRIKE (WHITE)
32	MAY W10135695
33	WASHER
34	BUMPER
35	MAY W10155571
36	Switch, Broken Belt
37	MAY 8564011
38	Wire, Belt (To Protector)
39	MAY 8539892
40	PANEL, FRONT
41	MAY 3406109
42	Screw, 6-20 x 1-1/16
43	RETAINER
44	MAY 3387242
45	MAY 342055
46	MAY W10135231
47	VALVE, GAS (60 HZ -COMPLETE)
48	SCREW
49	MAY 3393909
50	MAY 686590
51	SCREW
52	MAY 279818
53	MAY 3394331
54	MAY 49026
55	MAY 697750
56	MAY 488729
