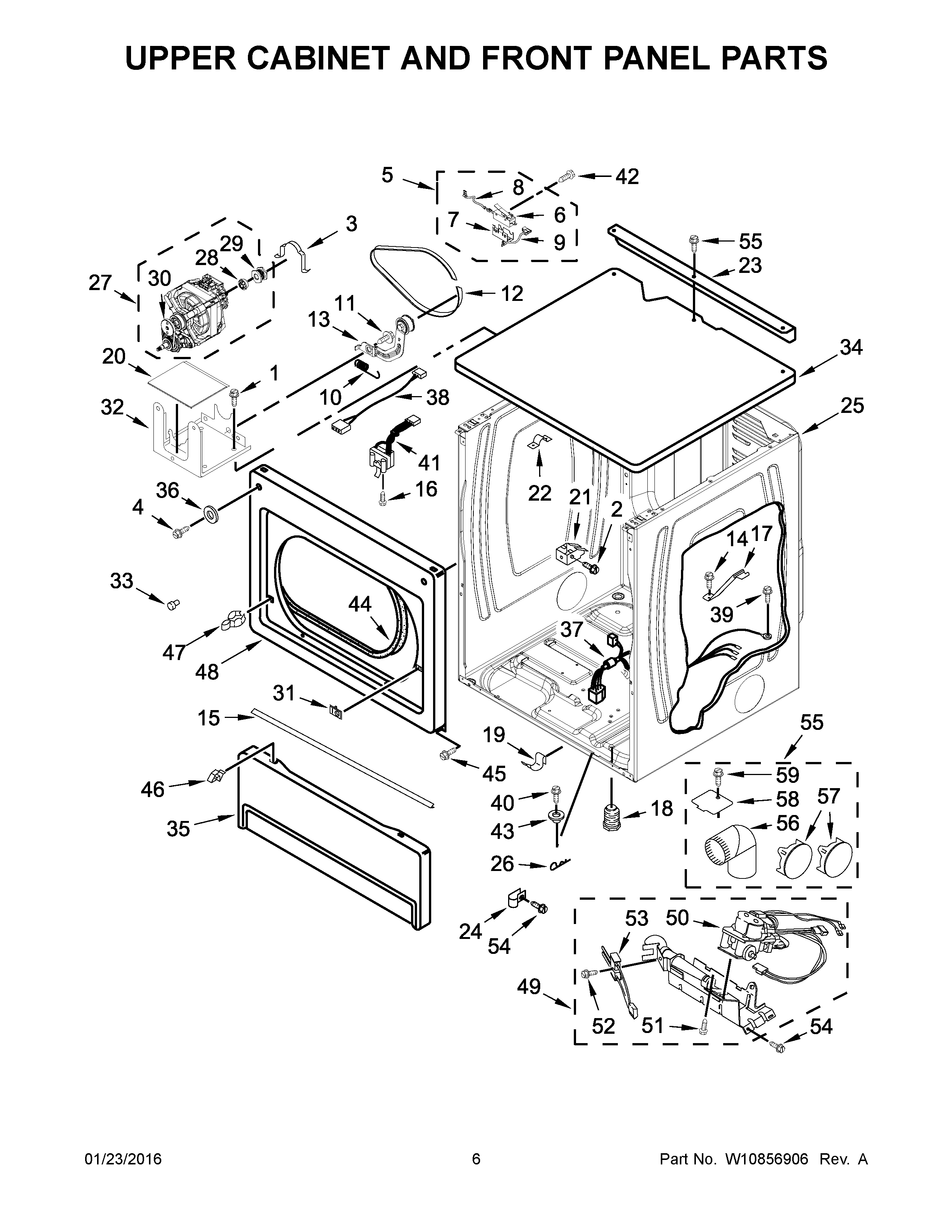

MLG27PDBWW1 04 – UPPER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1	SCREW
2	SCREW
3	MAY 660658
4	SCREW
5	MAY W10155571
6	Switch, Broken Belt
7	MAY 8564011
8	Wire, Belt (To Protector)
9	MAY 8539892
10	MAY W10446781
11	SCREW
12	BELT, DRIVE
13	MAY W10344192
14	Screw
15	MAY W10576519
16	SCREW
17	MAY 8529757
18	FOOT, DRYER PLASTIC
19	CLIP
20	DAPENING PANEL
21	CLIP, FRONT PANEL
22	Clip
23	MAY 3979115
24	MAY 3387561
25	MAY W10547697
26	MAY W10117347
27	MAY W10396034
28	MAY 3393657
29	PULLEY, MOTOR
30	MAY 3405160
31	COVER, STRIKE (WHITE)
32	MAY W10135695
33	BUMPER
34	TOP (WHITE)
35	Toe Panel (Includes Item. 2) (White)
36	WASHER
37	MAY W10807483
38	JUMPER, DOOR SWITCH
39	SCREW
40	BOLT, SECURITY
41	MAY 3406109
42	Screw, 6-20 x 1-1/16
43	MAY 3389233
44	MAY 3387242
45	MAY 342055
46	RETAINER
47	Strike, Door
48	PANEL, FRONT
49	MAY W10135231
50	VALVE, GAS (60 HZ -COMPLETE)
51	SCREW
52	MAY 3393909
53	MAY 686590
54	SCREW
55	MAY 279818
56	MAY 49026
57	MAY 697750
58	MAY 3394331
59	MAY 488729
