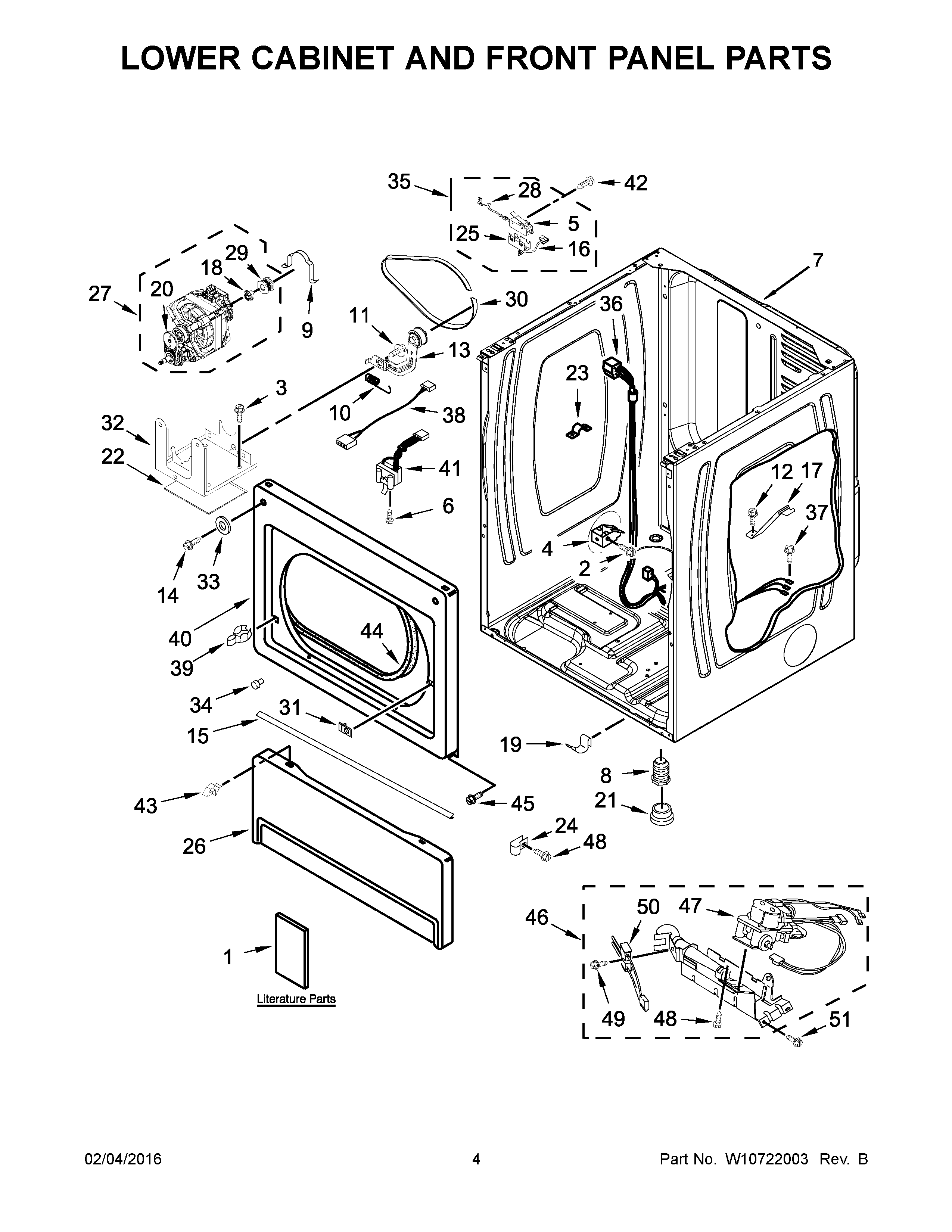

MLG27PDBXW0 03 – LOWER CABINET AND FRONT PANEL PARTS

Products

Position	Product
NI	MAY W10470674
1	MAY W10761035
1A	MAY W10135168
2	SCREW
3	SCREW
4	CLIP, FRONT PANEL
5	Switch, Broken Belt
6	SCREW
7	MAY W10547697
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
12	Screw
13	MAY W10344192
14	SCREW
15	MAY W10576519
16	MAY 8539892
17	MAY 8529757
18	MAY 3393657
19	CLIP
20	MAY 3405160
21	BOOT, FOOT
22	DAPENING PANEL
23	Clip
24	MAY 3387561
25	MAY 8564011
26	Toe Panel (Includes Item. 2) (White)
27	MAY W10396034
28	Wire, Belt (To Protector)
29	PULLEY, MOTOR
30	BELT, DRIVE
31	COVER, STRIKE (WHITE)
32	MAY W10135695
33	WASHER
34	BUMPER
35	MAY W10155571
36	MAY W10702046
37	SCREW
38	JUMPER, DOOR SWITCH
39	Strike, Door
40	PANEL, FRONT
41	MAY 3406109
42	Screw, 6-20 x 1-1/16
43	RETAINER
44	MAY 3387242
45	MAY 342055
46	MAY W10135231
47	VALVE, GAS (60 HZ -COMPLETE)
48	SCREW
49	MAY 3393909
50	MAY 686590
51	SCREW
