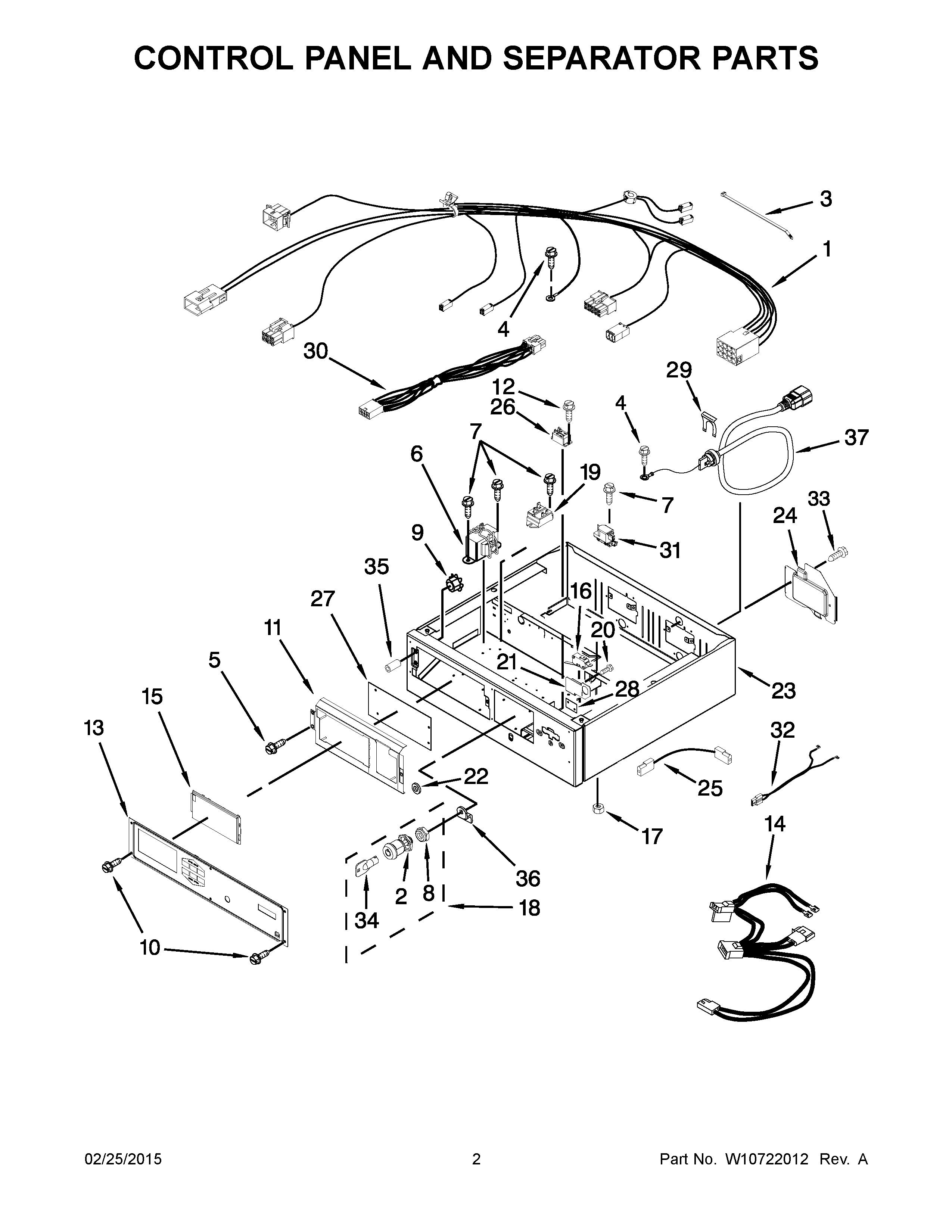

MLG27PNBGW0 02 – CONTROL PANEL AND SEPARATOR PARTS

MLG27PNBGW0 02 – CONTROL PANEL AND SEPARATOR PARTS

Written by

in

MLG27PNBGW0 02 – CONTROL PANEL AND SEPARATOR PARTS

Products

PositionProduct
NI10A CORD ADAPTER (BRITISH)
NIMAY W10476818
NI10A CORD ADAPTER (EUROPEAN)
NI10A CORD LOCK
NILINER (NOT A SERVICEABLE PART)
1MAY W10702052
2NUT, HEX
3MAY 8529895
4MAY 8533974
5MAY W10140652
6MAY W10237957
7MAY 8533971
8NUT, HEX
9NUT
10SCREW
11MAY W10657185
12SCREW
13MAY W10678233
14MAY W10250902
15MAY W10133268
16MAY W10133281
17NUT, HEX (LEFT HAND THREAD)
18ASSEMBLY, LOCK ACCESS DOOR
19MAY W10133335
20SCREW, 4-40 X 5/8
21MAY W10160652
22MAY 2006252
23MAY W10678213
24MAY 3396795
25MAY W10769481
26MAY W10258680
27MAY W10678221
28MAY W10151156
29STRAIN-RELIEF CLIP
30MAY W10111027
31MAY W10189038
32MAY W10272448
33SCREW
34KEY, ACCESS DOOR
35STANDOFF, CIRCUIT BOARD
36MAY W10233256
37CORD-POWER
