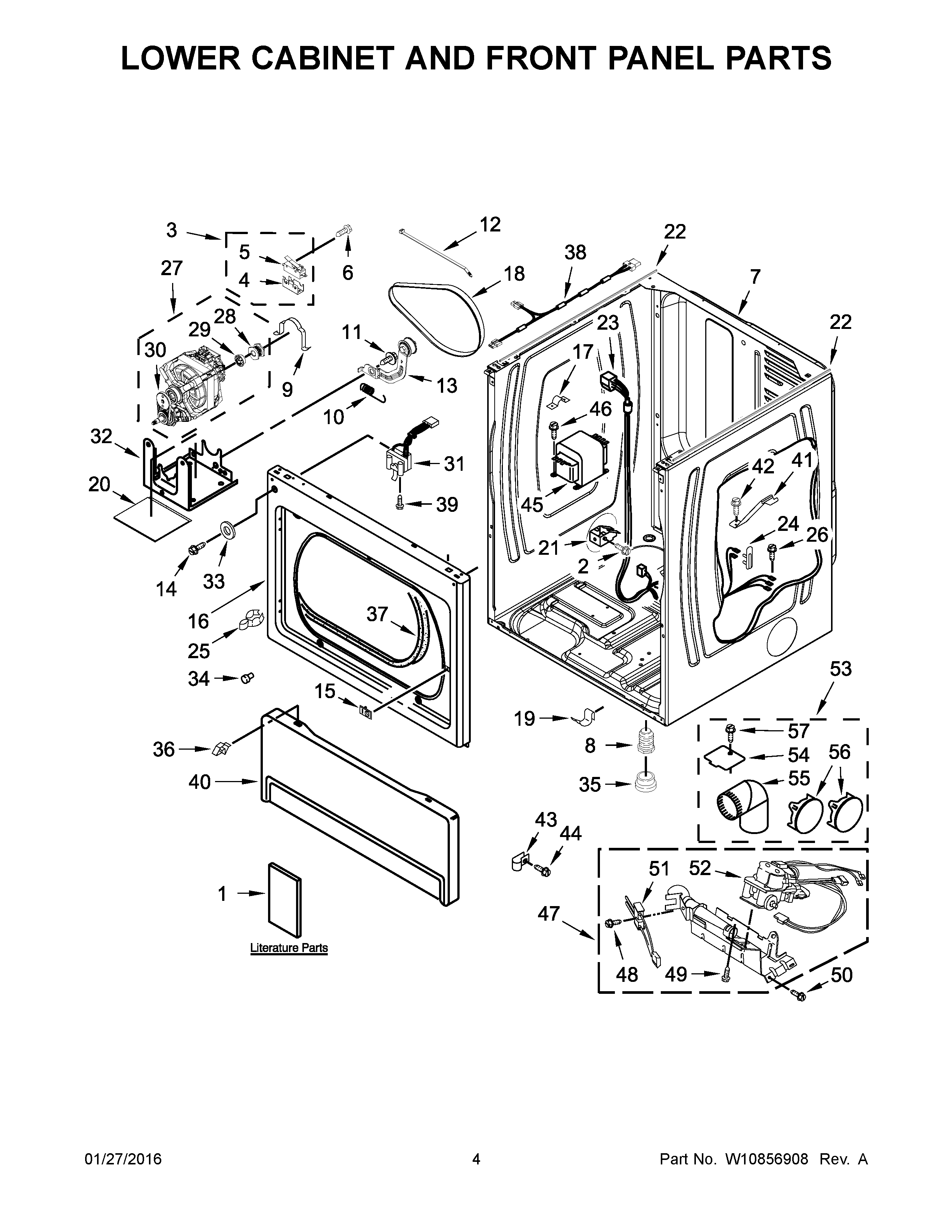

MLG27PNBGW1 03 – LOWER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1A	MAY W10722022
1	MAY W10722015
1B	MAY W10184546
2	SCREW
3	ASSEMBLY, SWITCH
4	MAY 8564011
5	ASSEMBLY, SWITCH ACTUATOR
6	SCREW
7	MAY W10547697
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
12	CABLE TIE
13	MAY W10344192
14	SCREW
15	COVER, STRIKE (WHITE)
16	MAY W10694721
17	Clip
18	BELT, DRIVE
19	CLIP
20	DAPENING PANEL
21	CLIP, FRONT PANEL
22	SEAL-FOAM (IEC)
23	MAY W10807488
24	Fuse, Thermal (91 C)
25	Strike, Door
26	SCREW
27	ASSEMBLY, MOTOR 50 HZ.
28	MAY W10167237
29	MAY 3393657
30	MAY 3405160
31	MAY W10237959
32	MAY W10135695
33	WASHER
34	BUMPER
35	BOOT, FOOT
36	RETAINER
37	MAY 3387242
38	MAY W10231861
39	SCREW
40	Toe Panel (Includes Item. 2) (White)
41	MAY W10181903
42	Screw
43	MAY 3387561
44	MAY 8533971
45	MAY W10753690
46	SCREW
47	MAY W10096909
48	MAY 3393909
49	SCREW
50	SCREW
51	MAY 686590
52	VALVE, GAS 50 HZ. (COMPLETE)
53	MAY 279818
54	MAY 3394331
55	MAY 49026
56	MAY 49252
57	MAY 488729
