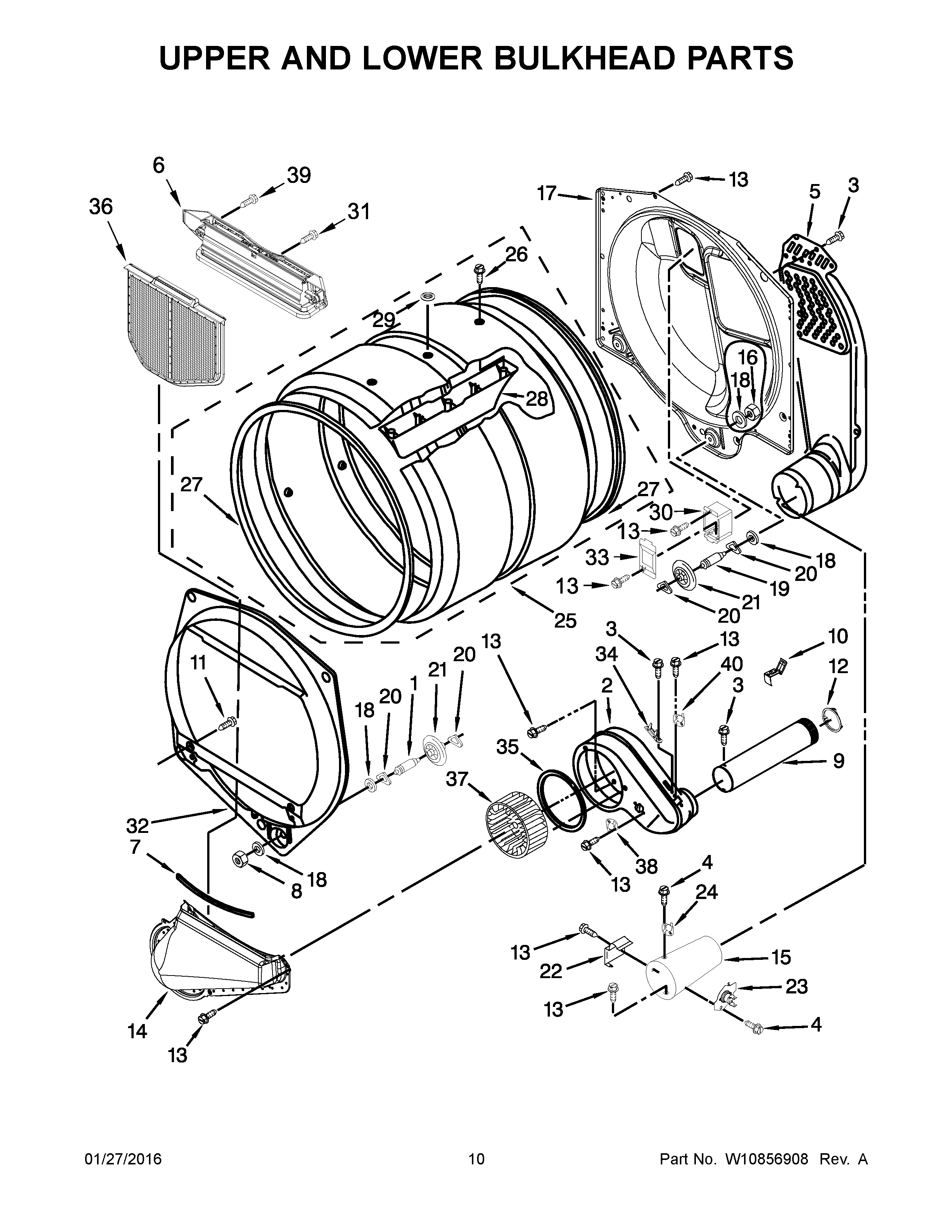

MLG27PNBGW1 06 – UPPER AND LOWER BULKHEAD PARTS

Products

PositionProduct
1SHAFT, DRUM ROLLER RIGHT HAND THREAD
2MAY 8544362
3MAY 8533971
4SCREW,8-18 X 3/8
5MAY 3394346
6MAY W10181929
7MAY 697814
8NUT, HEX
9Exhaust Pipe
10CLIP, EXHAUST
11SCREW
12MAY W10344699
13SCREW
14Lint Duct Assembly
15MAY 8573824
16NUT, HEX (LEFT HAND THREAD)
17MAY 8520836
18WASHER
19SHAFT, DRUM ROLLER – LEFT HAND THREAD
20WASHER, TRI RING
21ROLLER, SUPPORT
22MAY 338906
23MAY W10181549
24THERMOSTAT 255° F HIGH LIMIT
25MAY W10545922
26MAY W10219342
27MAY W10521118
28BAFFLE, DRUM
29CAP, PLUG
30MAY 8578825
31Screw, 8-18 x 1/2
32BULKHEAD, FRONT
33MAY 3402841
34Fuse, Thermal (91 C)
35SEAL, PLATE COVER
36LINT SCREEN (WHITE)
37MAY W10349492
38MAY W10206206
39SCREW
40THERMOSTAT, CYCLING (140F)
