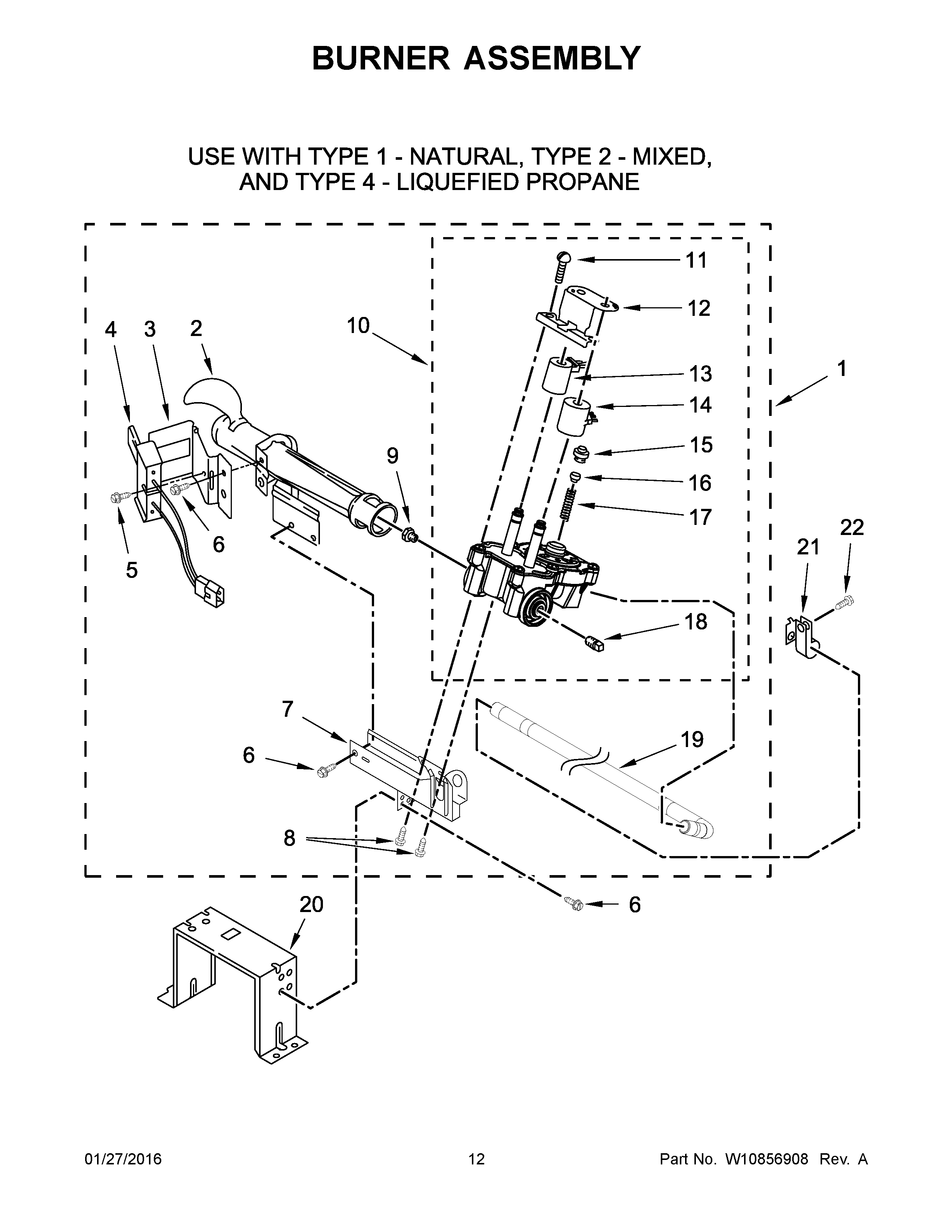

MLG27PNBGW1 07 – BURNER ASSEMBLY

MLG27PNBGW1 07 – BURNER ASSEMBLY

Written by

in

MLG27PNBGW1 07 – BURNER ASSEMBLY

Products

PositionProduct
NILP CONVERSION KIT (AUS TYPE 4)
NILP CONVERSION KIT (FR/BE NAT GAS)
NILINER (NOT A SERVICEABLE PART)
NIMAY W10233219
1MAY W10096909
2MAY 688617
3MAY 694298
4MAY 686590
5MAY 3393909
6SCREW
7MAY 3389871
8SCREW
9ORIFICE, BURNER (TYPE 1)
10VALVE, GAS 50 HZ. (COMPLETE)
11SCREW, COIL
12MAY 694538
13COIL, 50 HZ. (2 TERMINAL) (MAIN)
14MAY 695298
15MAY 694424
16MAY 694423
17MAY 694422
18MAY W10295523
19MAY W10097610
20MAY 3389889
21MAY 3978776
22SCREW
