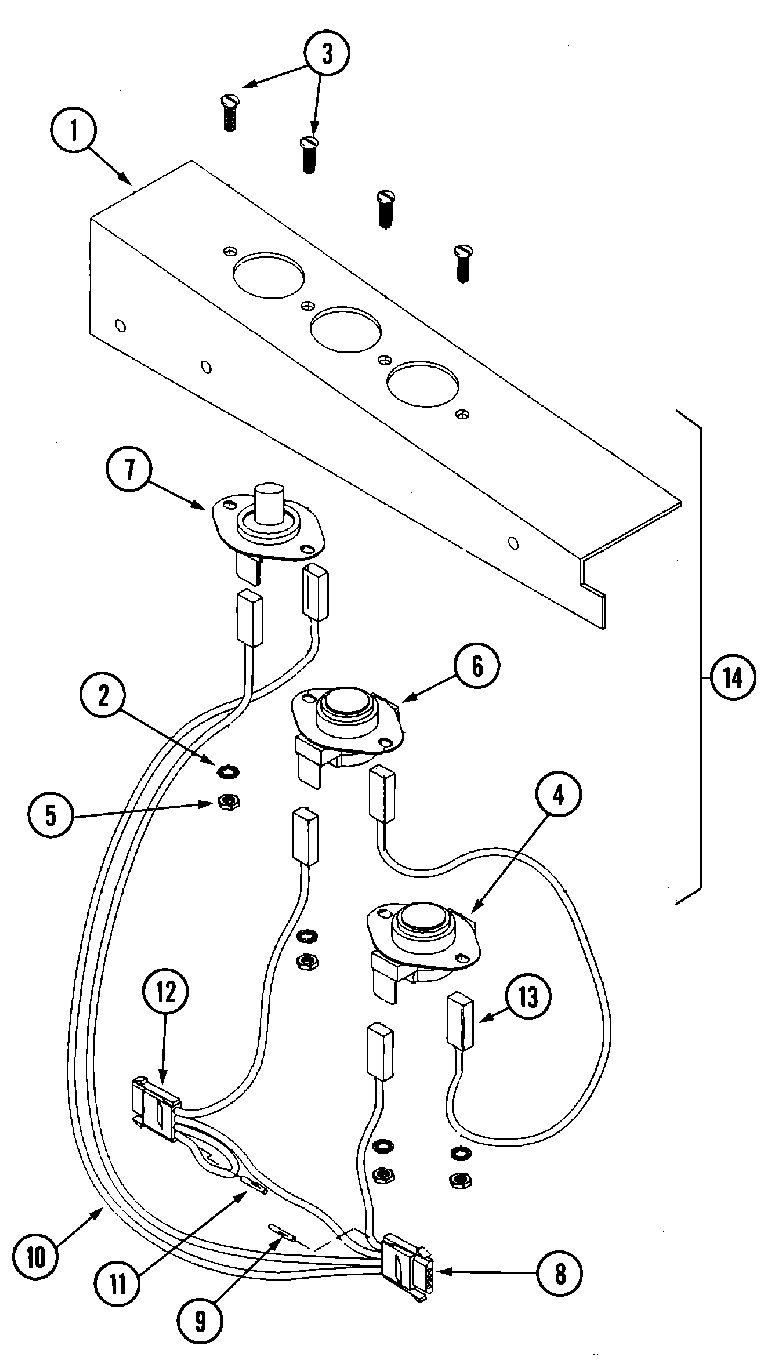

MLG32PDBWA 08 – TEMP. SENSOR BRKT. ASSEMBLY (MLG32PDAWx)
Written by
in
MLG32PDBWA 08 – TEMP. SENSOR BRKT. ASSEMBLY (MLG32PDAWx)
Products
| Position | Product |
|---|---|
| 000 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | MAY A311505 |
| 002 | MAY A153010 |
| 003 | SCREW, PHILL (6-32 X 1/4“)RND |
| 004 | MAY A130111 |
| 004 | MAY A883227 |
| 005 | MAY A152000 |
| 006 | MAY A130116 |
| 007 | MAY A130115 |
| 010 | MAY A821987 |
| 010 | MAY A821988 |
| 011 | MAY A122700 |
| 012 | MAY A122604 |
| 013 | MAY A122636 |
| 014 | MAY A882107 |
| 014 | MAY A881970 |
