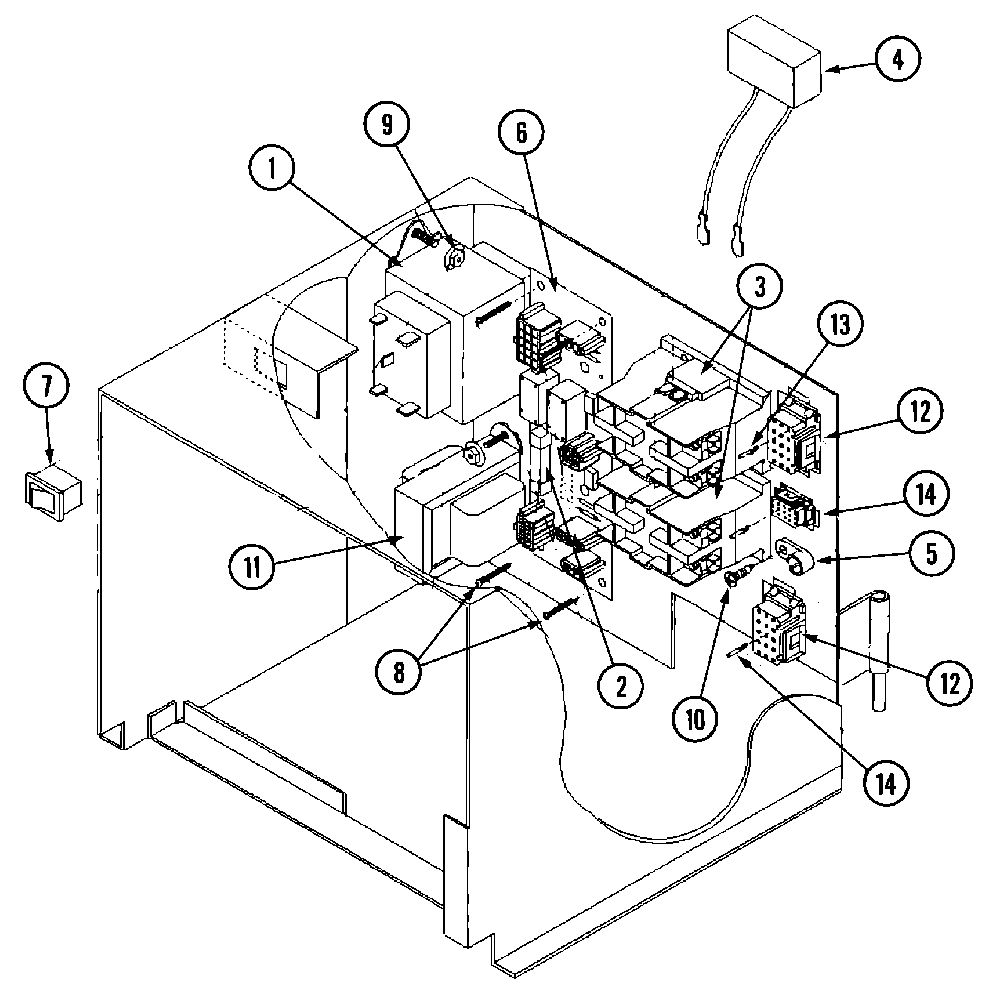

MLG32PDBWW 02 – CONTROL BOX ASSEMBLY
Products
| Position | Product |
|---|---|
| 000 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | MAY A132068 |
| 002 | MAY A136057 |
| 003 | CONTACTOR, 2-POLE (24 VAC) |
| 004 | MAY A824828 |
| 005 | MAY A121010 |
| 006 | MAY A137241 |
| 007 | SWITCH, ROCKER |
| 008 | SCREW, PHILL (6-32 X 1/4``)RND |
| 009 | MAY A151001 |
| 010 | MAY A150300 |
| 011 | MAY A821982 |
| 012 | MAY A122626 |
| 013 | MAY A122705 |
| 014 | MAY A122631 |
