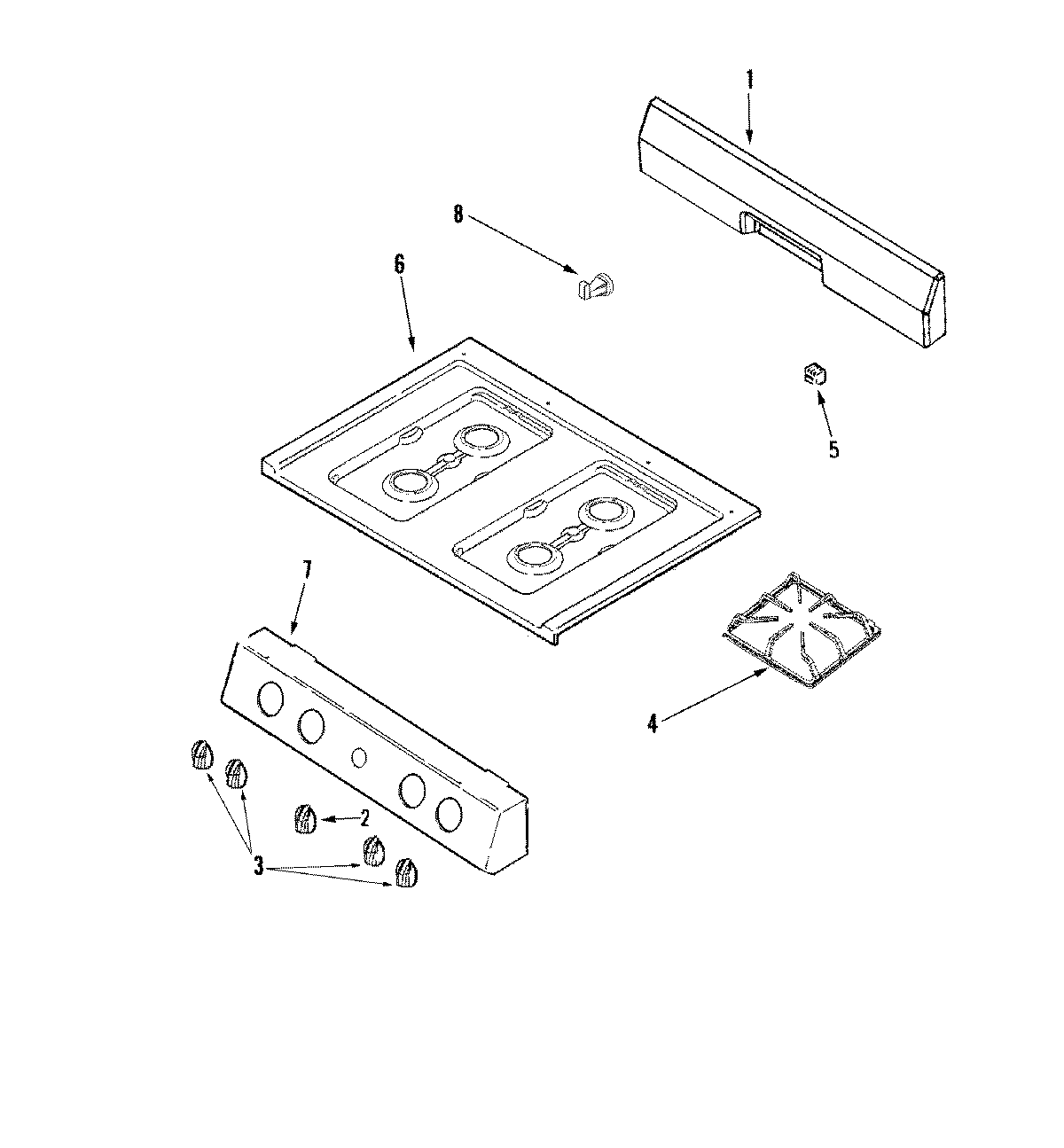

MLR1110AJQ 02 – CONTROL PANEL/TOP ASSEMBLY

MLR1110AJQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MLR1110AJQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010451
2MAY 74010647
3MAY 74005115
4WP2003X030-00 Whirlpool Burner Grate
5MAY 74009708
6MAY 74005045
7MAY 74010708
7COVER, BROIL ACCESS FITTING
7WP74003976 Whirlpool Screw
8SPACER, HINGE (MAIN TOP)
