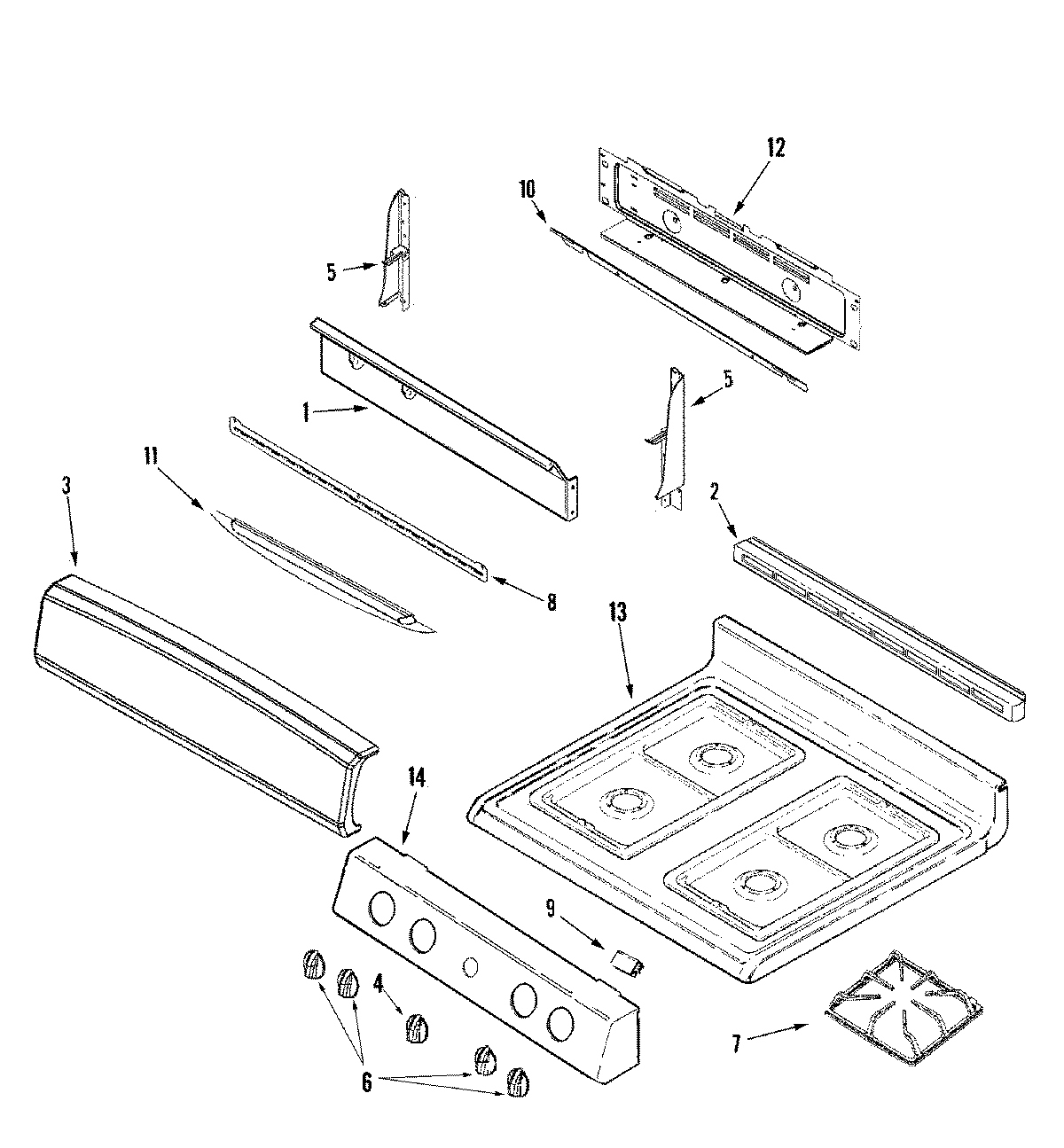

MLR1415AJQ 02 – CONTROL PANEL/TOP ASSEMBLY

MLR1415AJQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MLR1415AJQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009779
2SCREW (10ABX1/4P TR ZN)
2MAY 74009797
3MAY 74010716
4MAY 74010734
4MAY 74010726
5MAY 74010714
5MAY 74010712
5WP98008545 Whirlpool Screw
5WP74003976 Whirlpool Screw
6MAY 74010434
7WP2003X030-00 Whirlpool Burner Grate
8MAY 74009780
9MAY 74004827
10SCREW
10MAY 74009978
11MAY 74009798
11WP74009541 Whirlpool Screw Assembly
12MAY 74009943
12MAY 74006536
12MAY 71001394
12WP90767 Whirlpool Screw
13W11189172 Whirlpool Glide Drawer
13MAY 74010709
13WP74005546 Whirlpool RU Spacer
14MAY 74010729
