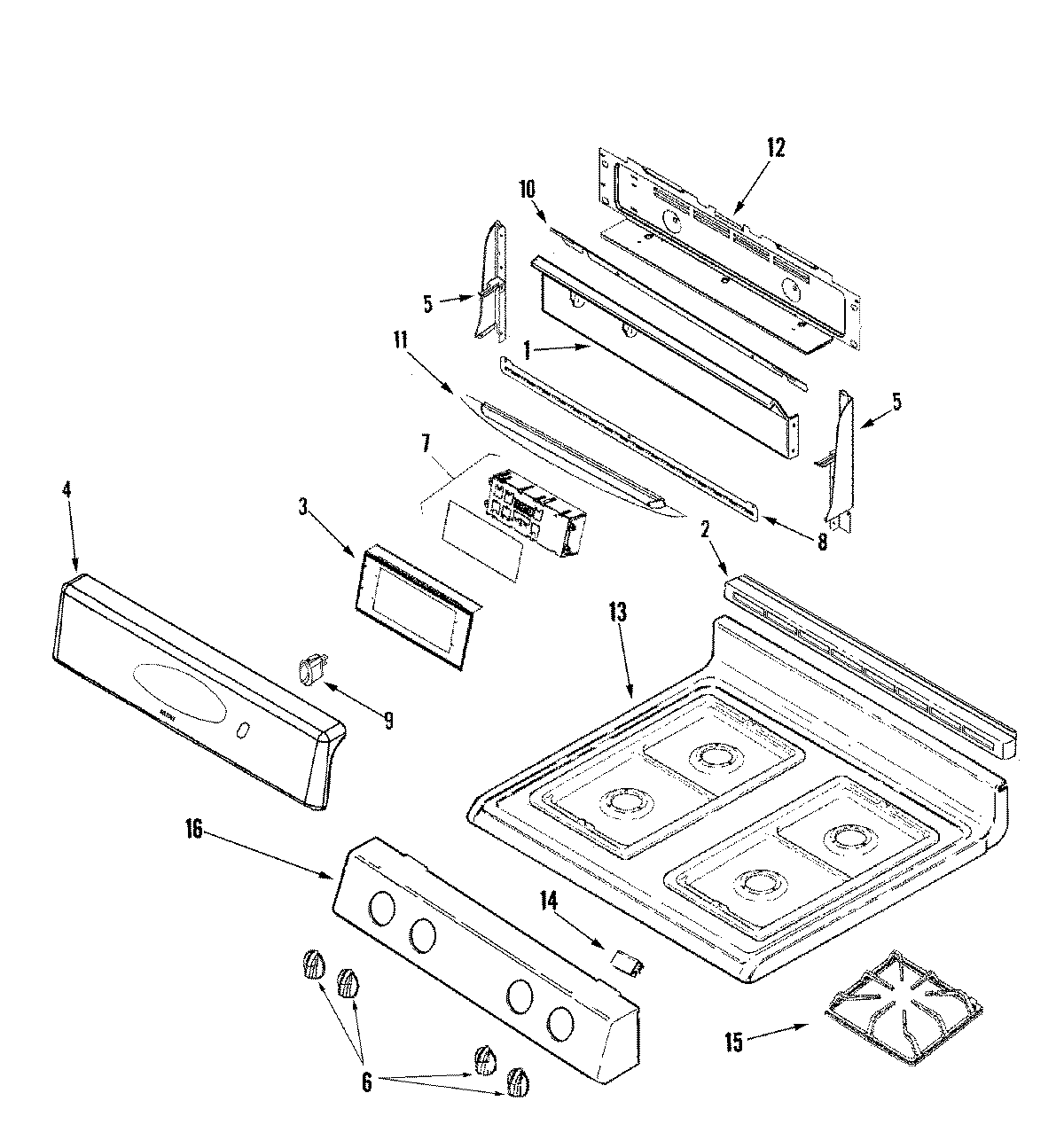

MLR4451AJQ 02 – CONTROL PANEL/TOP ASSEMBLY

MLR4451AJQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MLR4451AJQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 7101P147-60
1MAY 74009779
2SCREW (10ABX1/4P TR ZN)
2MAY 74009797
3MAY 74008716
4MAY 74009110
5MAY 74010214
5MAY 74010213
5WP74009541 Whirlpool Screw Assembly
674009774 Whirlpool Oven Knob Bisque
7WP74003976 Whirlpool Screw
7MAY 74011149
7MAY 74009881
8MAY 74009780
97403P985-60 Whirlpool Rocker Switch (Black)
97403P984-60 Whirlpool RO Switch
9WP74010226 Whirlpool RO Switch
10SCREW
10MAY 74009708
11MAY 74009803
11MAY 74009798
12MAY 71001394
12WP90767 Whirlpool Screw
12MAY 74009943
12MAY 74006536
13W11189172 Whirlpool Glide Drawer
13WP74005546 Whirlpool RU Spacer
13MAY 74010709
14MAY 74004827
15MAY 74001769
16MAY 74009830
