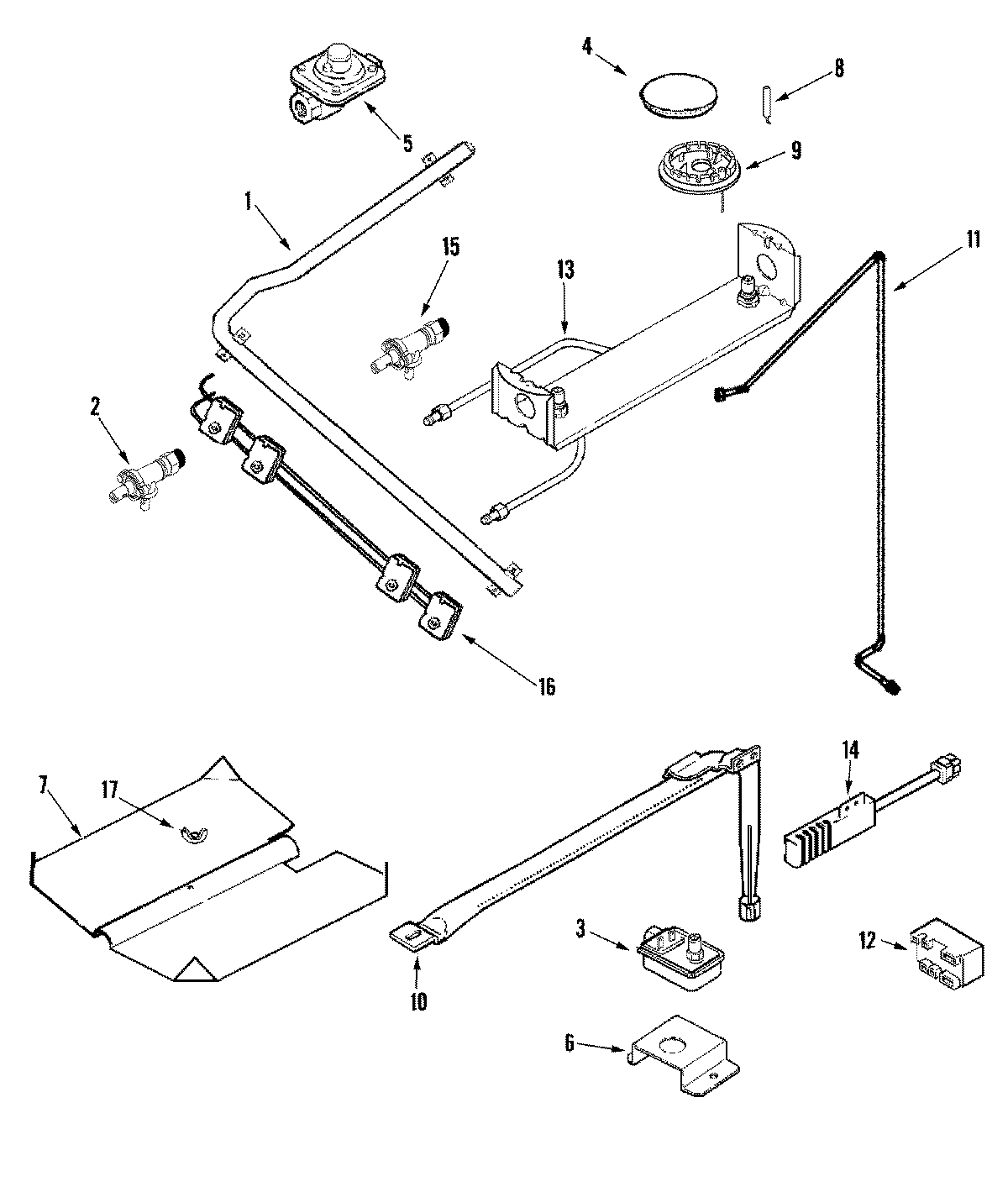

MLR4451AJQ 04 – GAS CONTROLS

Products

Position	Product
1	MAY 74009886
2	MAY 74009770
2	MAY 74009462
3	MAY 74010466
4	MAY 74007534
5	MAY 74007524
6	MAY 74005051
7	MAY 74002393
8	WP8523793 Whirlpool Oven Surface Igniter
9	MAY 7101P343-60
9	MAY 74007528
9	MAY 74007527
10	SCREW
10	MAY 74002434
11	MAY 74006417
12	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
12	Module, Spark (4+0)
12	MODULE, SPARK
13	MAY 74010721
13	MAY 74010718
13	MAY 74010717
13	MAY 74010722
14	SCREW (10-24X5/16-NI)
14	74007498 Whirlpool Range Flat Igniter
15	MAY 74009460
15	MAY 71003231
16	WPW10180490 Whirlpool Wire Harness
17	NUT, WING
