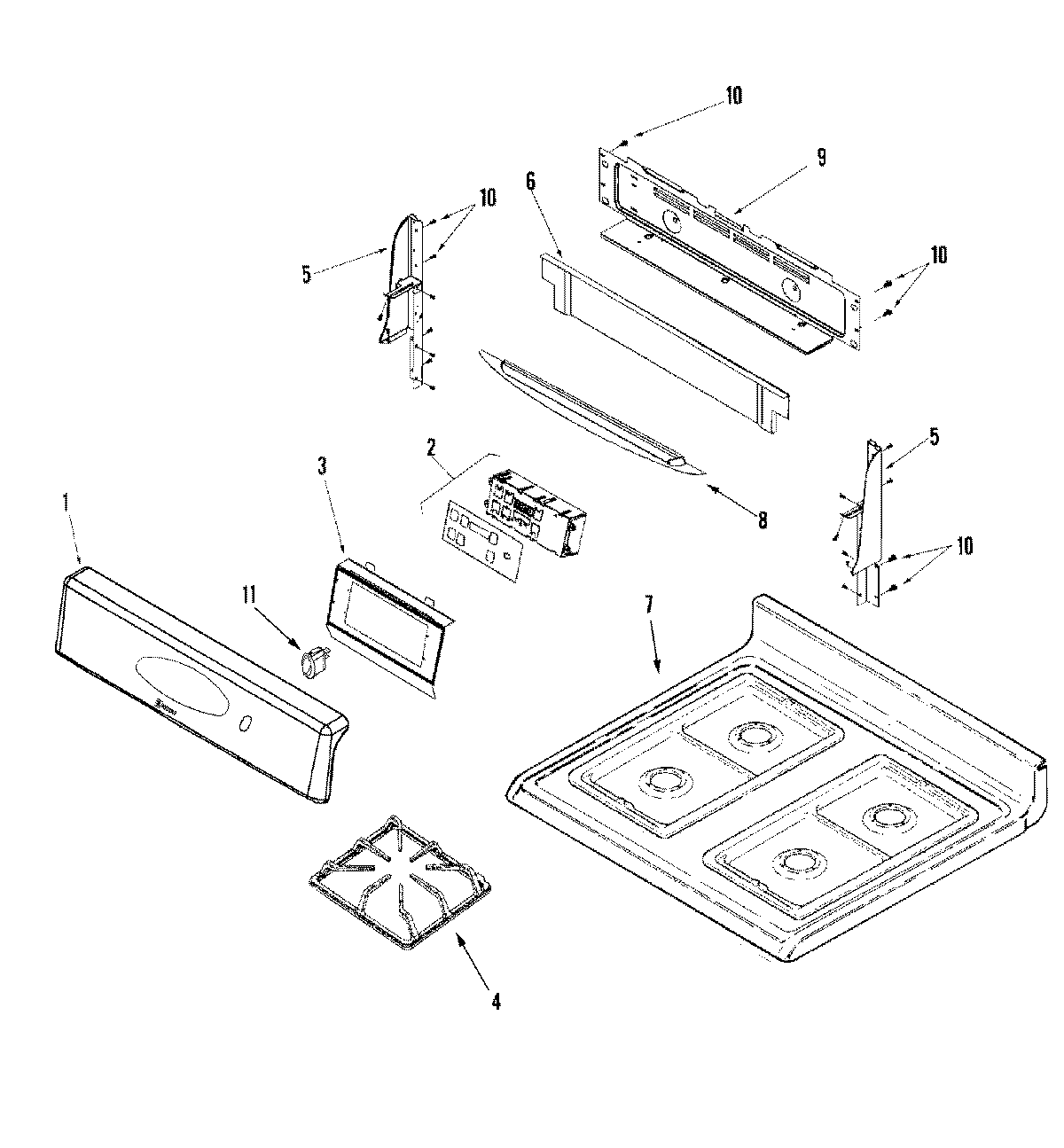

MLR5755QDS 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009108
2WP74009217 Whirlpool Control Board
3BRACKET, CLOCK
4MAY 74009133
4W10919249 Whirlpool Burner Grate Foot
4MAY M0275597
5End Cap (Left Black)
5End Cap (Right Black)
6MAY 74009444
7MAY 74009125
8MAY 74009202
8SCREW, SHOULDER
9MAY 74009093
9MAY 74010804
9COVER, BROIL ACCESS FITTING
9SCREW (8BX3/8-NI)
10SCREW
117403P985-60 Whirlpool Rocker Switch (Black)
1274008761 Whirlpool Spacer Snap-In
