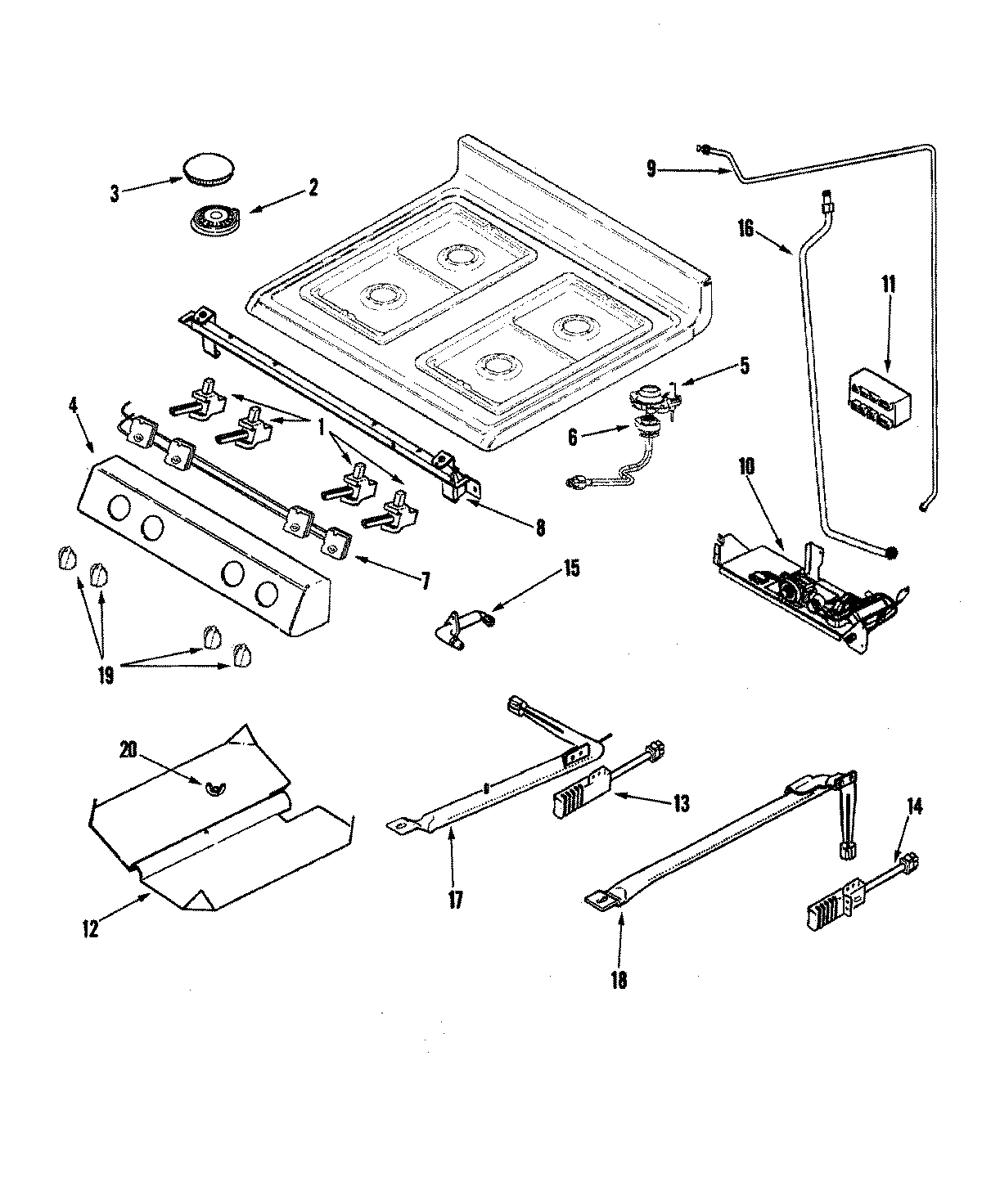

MLR5755QDS 05 – GAS CONTROLS

Products

Position	Product
1	MAY 74010622
1	WP74009857 Whirlpool Screw
2	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
2	WP400021-1 Whirlpool Screw
3	WP74007925 Whirlpool Burner Cap
4	W11693756 Whirlpool Screw Assembly
4	MAY 74009128
5	WP74009958 Whirlpool Spark Electrode Assembly
6	MAY 74010637
6	MAY 74010624
6	MAY 74010625
6	MAY 74010636
7	WP74010630 Whirlpool Switch Harness
8	MAY 74008809
9	TUBING, SUPPLY
10	MAY 74010621
11	74008821 Whirlpool Spark Module
12	MAY 74008819
13	74007498 Whirlpool Range Flat Igniter
14	SCREW (10-24X5/16-NI)
14	WP7432P136-60 Whirlpool Oven Igniter
15	MAY 74010623
15	SCREW
16	74008830 Whirlpool Oven Broil Tubing
17	BURNER, BROIL
18	MAY 31945701
19	MAY 74009094
20	NUT, WING
