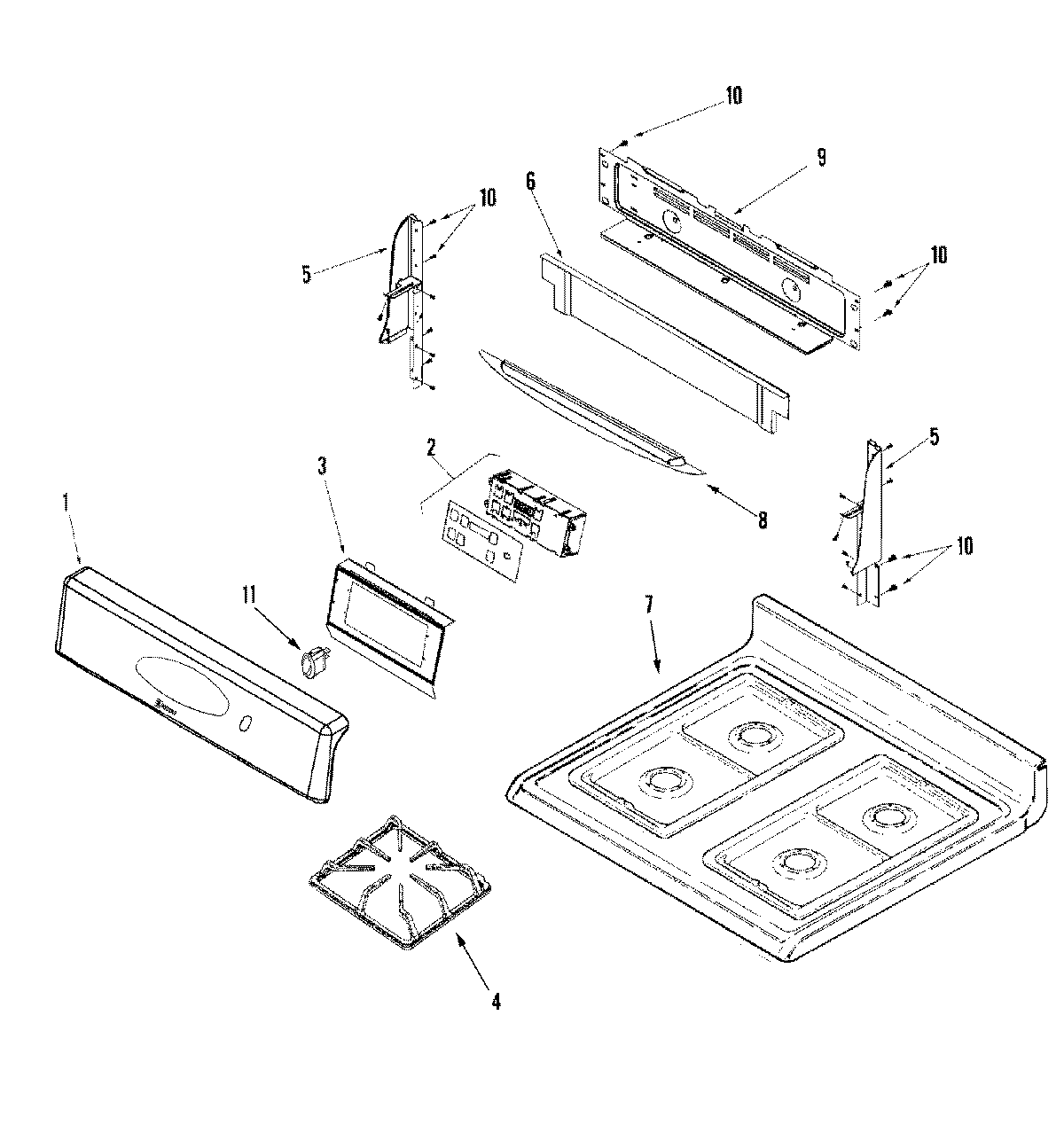

MLR5755QDW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009109
2WP74009217 Whirlpool Control Board
3BRACKET, CLOCK
4MAY 74009131
4W10919249 Whirlpool Burner Grate Foot
4MAY M0275597
5End Cap (Left White)
5End Cap (Right White)
6MAY 74009444
7MAY 74009126
8MAY 74009203
8SCREW, SHOULDER
9MAY 74009093
9MAY 74010804
9COVER, BROIL ACCESS FITTING
9SCREW (8BX3/8-NI)
10SCREW
11WP74010226 Whirlpool RO Switch
1274008761 Whirlpool Spacer Snap-In
