MLR5755QDW 04 – DOOR/DRAWER

MLR5755QDW 04 – DOOR/DRAWER

Written by

in

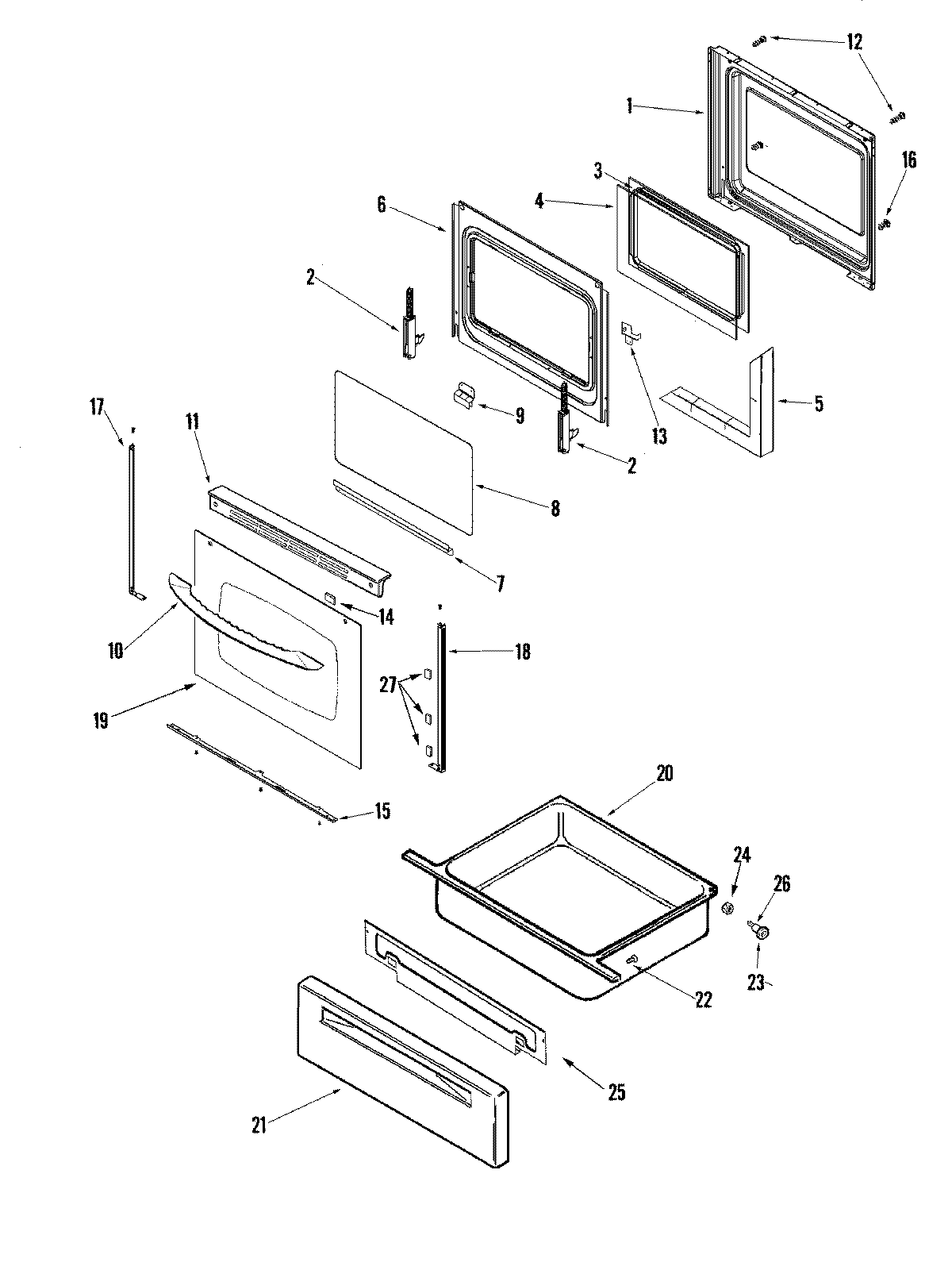

MLR5755QDW 04 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008926
274010546 Whirlpool Range Oven Door Hinge
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6MAY 74008744
7WP74004224 Whirlpool Tape
8WP488130 Whirlpool Air Conditioner Nut
9SHIELD, DRAWER HEAT
10WP74011768 Whirlpool Door Handle
11Trim, Door Top (White)
11WP98008544 Whirlpool Screw Assembly
12WP74006515 Whirlpool Washer Screw
13BRACKET, DOOR HANDLE (RT)
13BRACKET, DOOR HANDLE (LT)
14WP74009014 Whirlpool Double Tape
15WP98008545 Whirlpool Screw
15WP3608F092-71 Whirlpool Bottom Trim
16SCREW (10-24X5/16-NI)
17MAY 74010561
18SHAFT, STORAGE DRAWER ROLLER
19Glass, Door (White)
20WP3405F037-80 Whirlpool Utility Drawer
21PANEL, DRAWER (WHT)
22SCREW
23WP74004078 Whirlpool Door Roller
24WP74005546 Whirlpool RU Spacer
