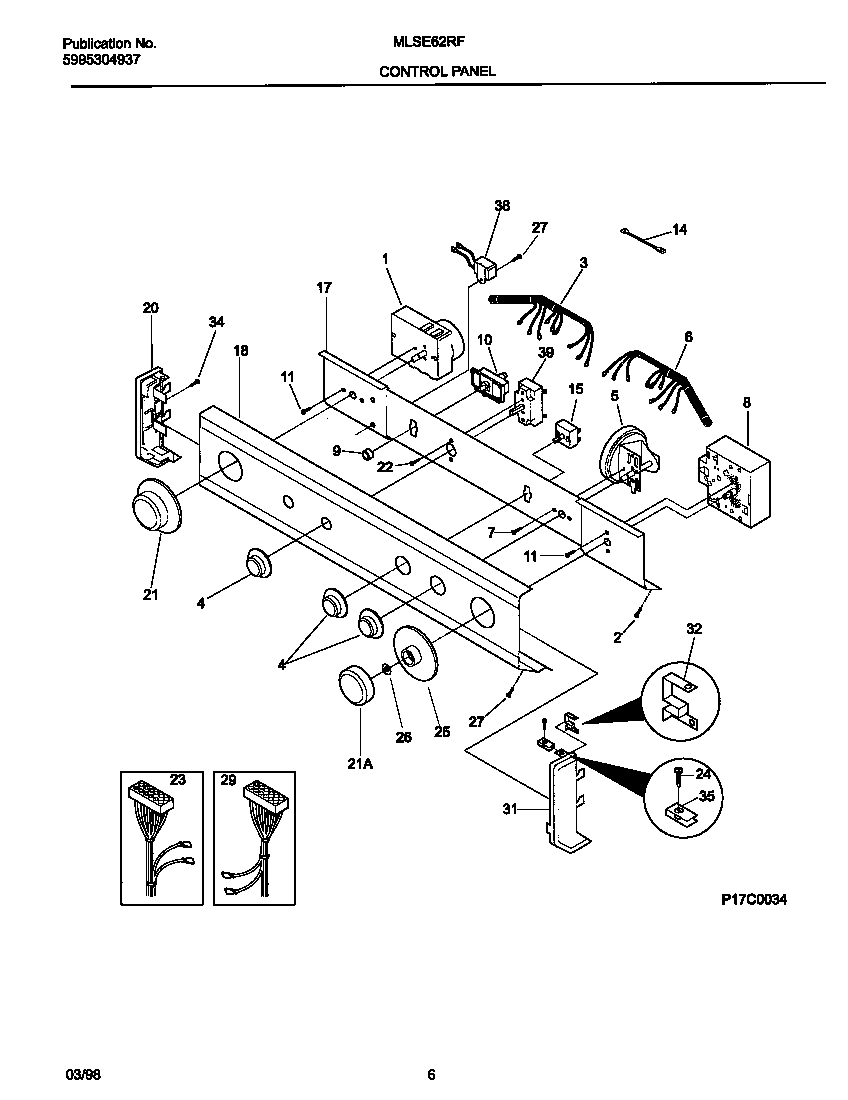

MLSE62RFW0 04 – CONTROL PANEL

MLSE62RFW0 04 – CONTROL PANEL

Written by

in

MLSE62RFW0 04 – CONTROL PANEL

Products

PositionProduct
*602405303161300 Frigidaire Strap
15303297177 Frigidaire Dryer Control Timer
3WCI 131662500
4131858004 Frigidaire Control Knob, White
5WCI 131337900
6WCI 131592700
7131168200 Frigidaire Dryer Screw
8131437500 Frigidaire Washer Timer
9KNOB-START SWITCH, BLACK
10WCI 131628900
11218359202 Frigidaire Refrigerator Screw
14RESISTOR-POWER, 4.4K
15WCI 131621100
17WCI 131622902
18WCI 131693600
20WCI 131288100
21WCI 5303210341
21131859104 Frigidaire Dryer Timer Knob
22WCI 3161259
23WCI 131512600
24134156200 Frigidaire Screw
25WCI 5303209901
26SPACER-TIMER-SHAFT
27SCREW (2)
29WCI 131654700
31WCI 131288210
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
38WCI 5303286537
39SWITCH-DRYER TEMP
