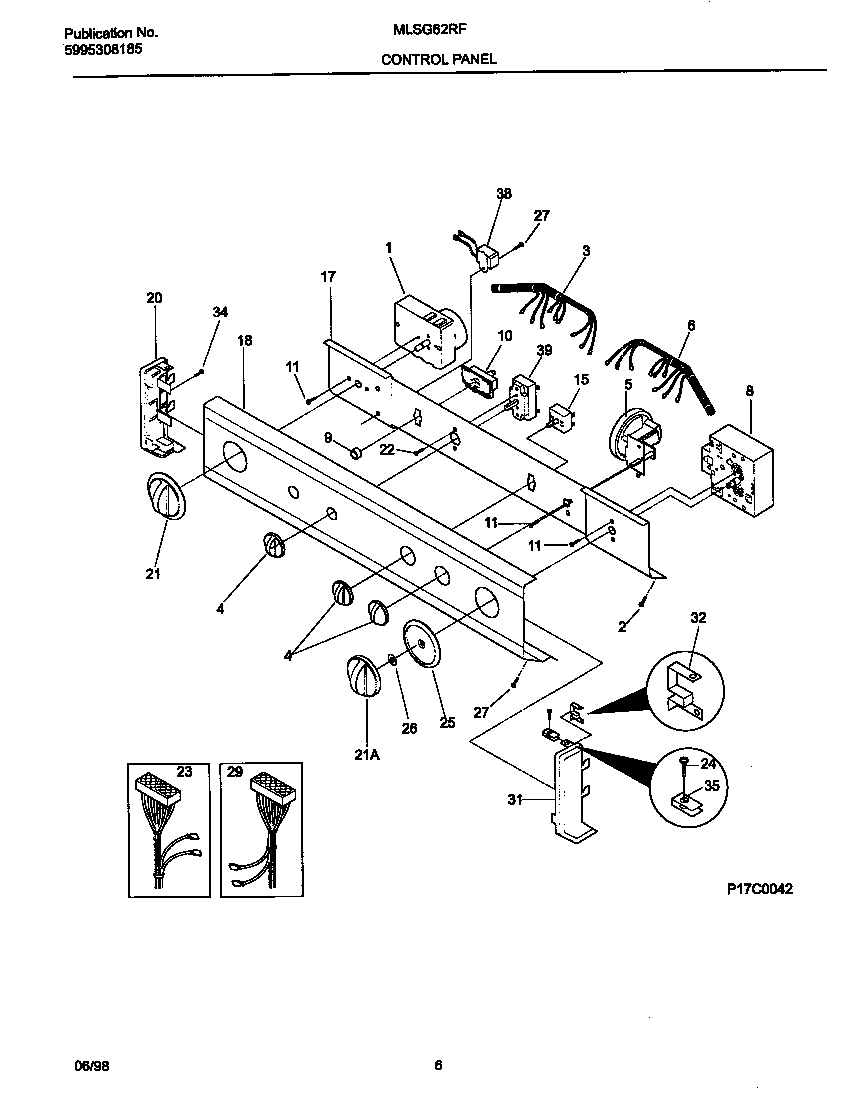

MLSG62RFW1 04 – CONTROL PANEL

Written by

Products

Position	Product
*94483	5303161300 Frigidaire Strap
*94482	131209800 Frigidaire Clamp
1	TIMER
2	131168200 Frigidaire Dryer Screw
3	WCI 131662600
4	131858004 Frigidaire Control Knob, White
5	134493500 Frigidaire Switch
6	WCI 131668500
8	131437500 Frigidaire Washer Timer
9	KNOB-START SWITCH, BLACK
10	WCI 131628900
11	218359202 Frigidaire Refrigerator Screw
15	WCI 131621100
17	WCI 131693302
18	WCI 131693600
20	WCI 131288100
21	WCI 5303210341
21	131859104 Frigidaire Dryer Timer Knob
22	WCI 3161259
23	WCI 131658300
24	134156200 Frigidaire Screw
25	WCI 5303209901
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131654700
31	WCI 131288210
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
39	SWITCH-DRYER TEMP
