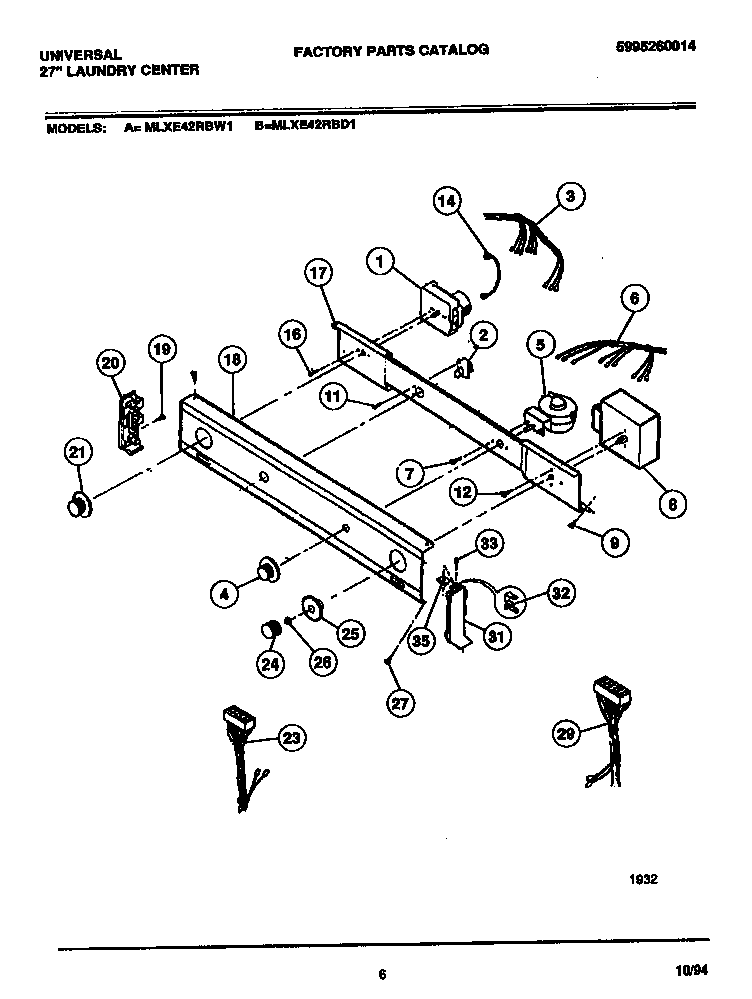

MLXE42RBW1 04 – CONSOLE & CONTROLS

Products

Position	Product
*84484	SPACER PAD-CONTROL PANEL BRACKET (2)
1	TIMER-DRYER
2	WCI 5303209890
3	WCI 131305700
4	131858004 Frigidaire Control Knob, White
5	WCI 5303209894
6	WCI 131315100
8	WCI 131314900
9	131168200 Frigidaire Dryer Screw
14	RESISTOR-POWER, 4.4K
16	218359202 Frigidaire Refrigerator Screw
17	BRACKET-CONTROLS
18	PANEL-CONTROL, ALMOND
19	131243700 Frigidaire Screw
20	WCI 5303209671
21	131859104 Frigidaire Dryer Timer Knob
24	HARNESS-MAIN DRYER
24	WCI 5303210341
25	WCI 5303209901
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131200500
31	WCI 5303210650
32	WCI 3204357
33	134156200 Frigidaire Screw
35	CLIP (8)
