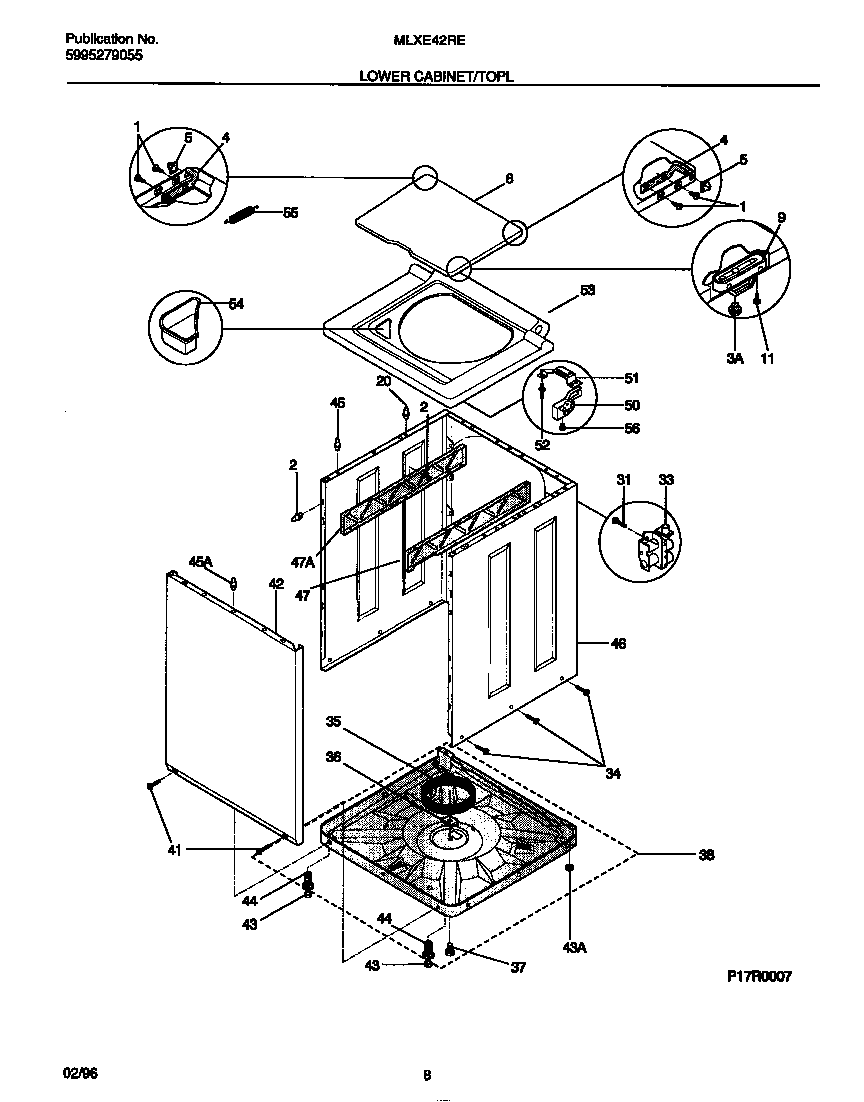

MLXE42RED0 05 – LOWER CABINET/TOP

MLXE42RED0 05 – LOWER CABINET/TOP

Written by

in

MLXE42RED0 05 – LOWER CABINET/TOP

Products

PositionProduct
*88004131453000 Frigidaire Bushing
*880065303309503 Frigidaire Clip
*880055303303590 Frigidaire Dryer 4.0" Cable Tie
1SCREW
2131168200 Frigidaire Dryer Screw
3134075500 Frigidaire Bumper-LID
45304489657 Frigidaire Bar Hinge Kit
55303208743 Frigidaire Grommet
6WCI 5303212873
9131390000 Frigidaire Door Catch-Strike
113204368 Frigidaire Screw-Strike
203204374 Frigidaire Pin
31131202300 Frigidaire Screw
33134190200 Frigidaire Washer Water Valve
34131205500 Frigidaire Screw
35SNUBBER RING
36SHIPPING BLOCK
37WCI 131102900
38WCI 5303311213
41131302800 Frigidaire Drum Vane Screw
42WCI 131104305
43WCI 131422100
43131422200 Frigidaire P-1 Self Level Leg Pad
44134548800 Frigidaire Washer Leg Levelling
45WCI 131346400
45131346401 Frigidaire Pin
46WCI 131452802
47MARRIAGE BRACKET-LH
47MARRIAGE BRACKET-RH
50WCI 3205646
51BRACKET-LID LOCK
52RIVET (3)
53BWCI 5303212875
53AWCI 131452520
54WCI 3204394
55134890500 Frigidaire Spring
56131243800 Frigidaire Screw
