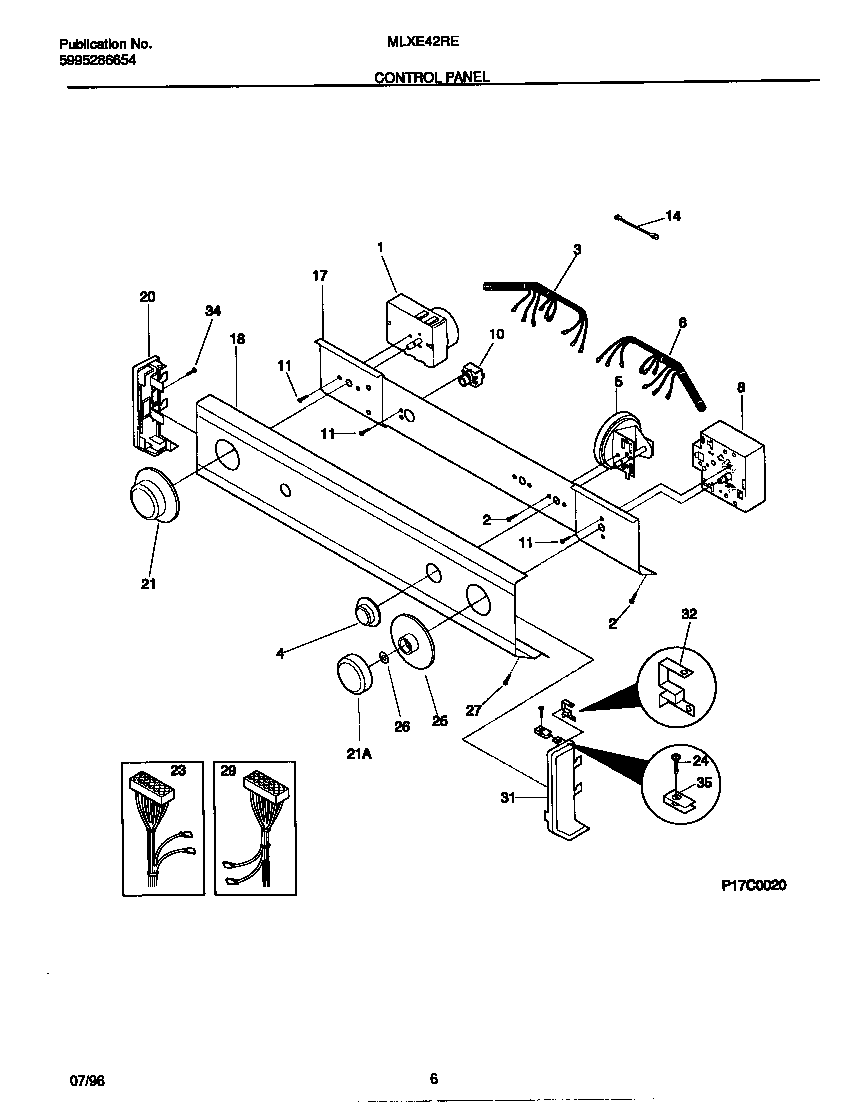

MLXE42REW1 04 – CONTROL PANEL

Products

Position	Product
*51562	5303161300 Frigidaire Strap
*51563	5303303590 Frigidaire Dryer 4.0" Cable Tie
1	TIMER-DRYER
2	131168200 Frigidaire Dryer Screw
3	WCI 131305700
4	131858004 Frigidaire Control Knob, White
5	WCI 5303209894
6	WCI 131449600
8	WCI 131437300
10	WCI 5303209890
11	218359202 Frigidaire Refrigerator Screw
14	RESISTOR-POWER, 4.4K
17	BRACKET-CONTROLS
18	WCI 131546600
20	WCI 131288100
21	131859104 Frigidaire Dryer Timer Knob
21	WCI 5303210341
23	WCI 131512600
24	134156200 Frigidaire Screw
25	WCI 5303209901
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131520800
31	WCI 131288210
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
