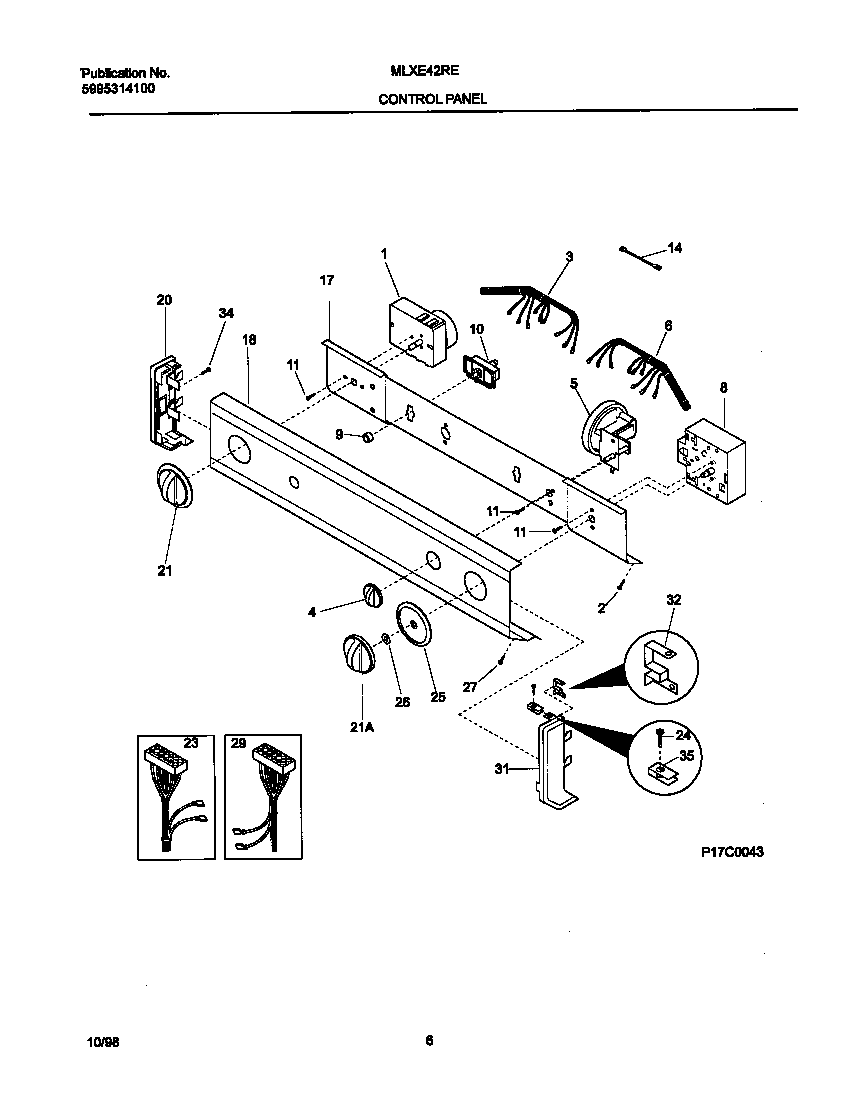

MLXE42REW5 04 – P17C0043 CONTROL PANEL

Products

Position	Product
*94401	5303161300 Frigidaire Strap
1	TIMER-DRYER
2	131168200 Frigidaire Dryer Screw
3	WCI 131305700
4	131858004 Frigidaire Control Knob, White
5	134422700 Frigidaire Switch
6	WCI 131694400
8	WCI 131437300
9	KNOB-START SWITCH, BLACK
10	WCI 131628900
11	218359202 Frigidaire Refrigerator Screw
14	RESISTOR-POWER, 4.4K
17	WCI 131712602
18	WCI 131709800
20	WCI 131288100
21	131859104 Frigidaire Dryer Timer Knob
21	WCI 5303210341
23	WCI 131753200
24	134156200 Frigidaire Screw
25	WCI 5303209901
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131778700
31	WCI 131288210
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
