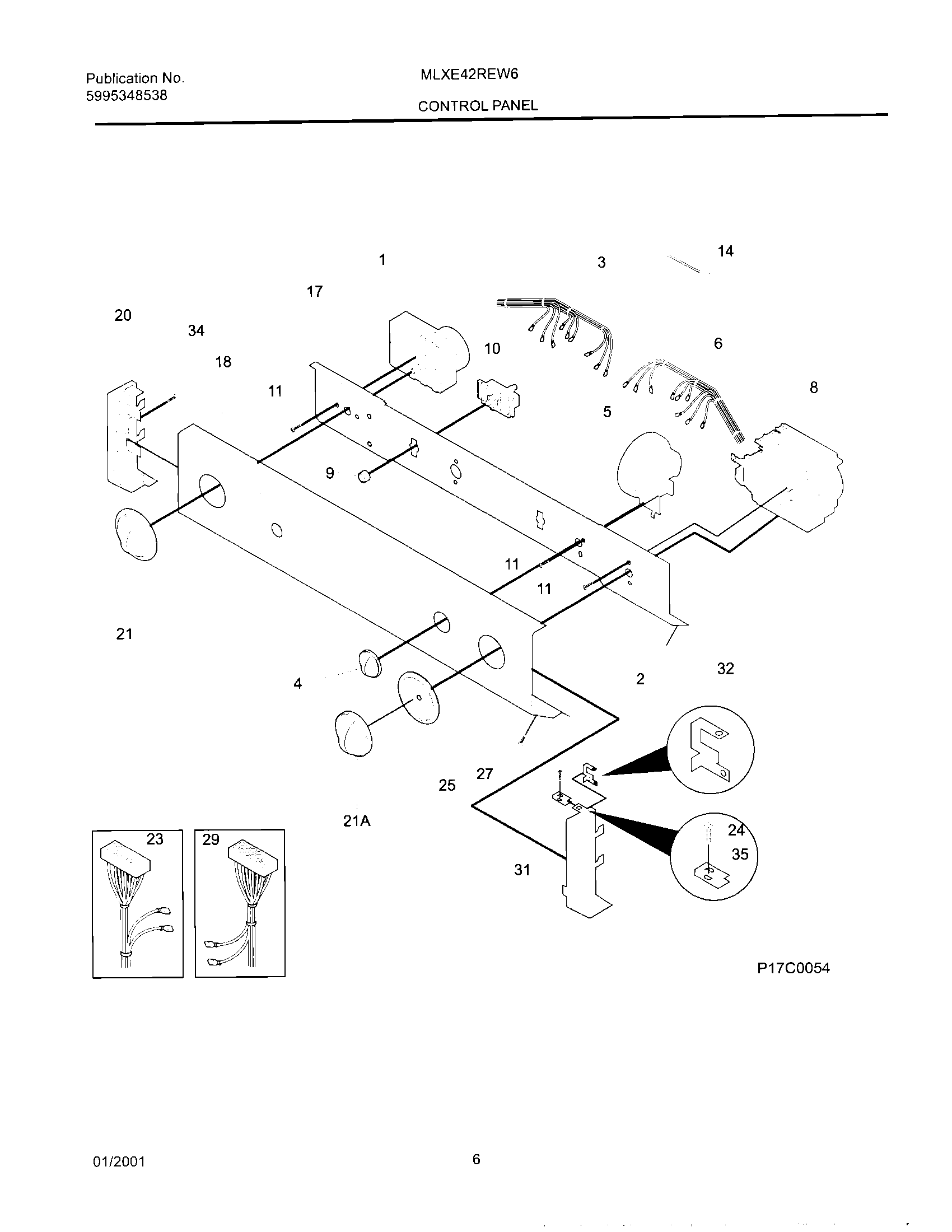

MLXE42REW6 07 – CONTROL PANEL

Products

Position	Product
NI	Asmy-bezel black
NI	5303161300 Frigidaire Strap
1	TIMER-DRYER
2	131168200 Frigidaire Dryer Screw
3	WCI 131305700
4	131858004 Frigidaire Control Knob, White
5	134422700 Frigidaire Switch
6	WCI 131987900
8	131964100 Frigidaire P1-Timer Elec H Mallor
9	KNOB-START SWITCH, BLACK
10	WCI 131628900
11	218359202 Frigidaire Refrigerator Screw
14	RESISTOR-POWER, 4.4K
17	WCI 131983400
18	WCI 131709800
20	WCI 131288100
21	131859104 Frigidaire Dryer Timer Knob
21	WCI 131977000
23	WCI 131753200
24	134156200 Frigidaire Screw
25	WCI 131976701
27	131892100 Frigidaire Screw
29	WCI 131778800
31	WCI 131288210
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
