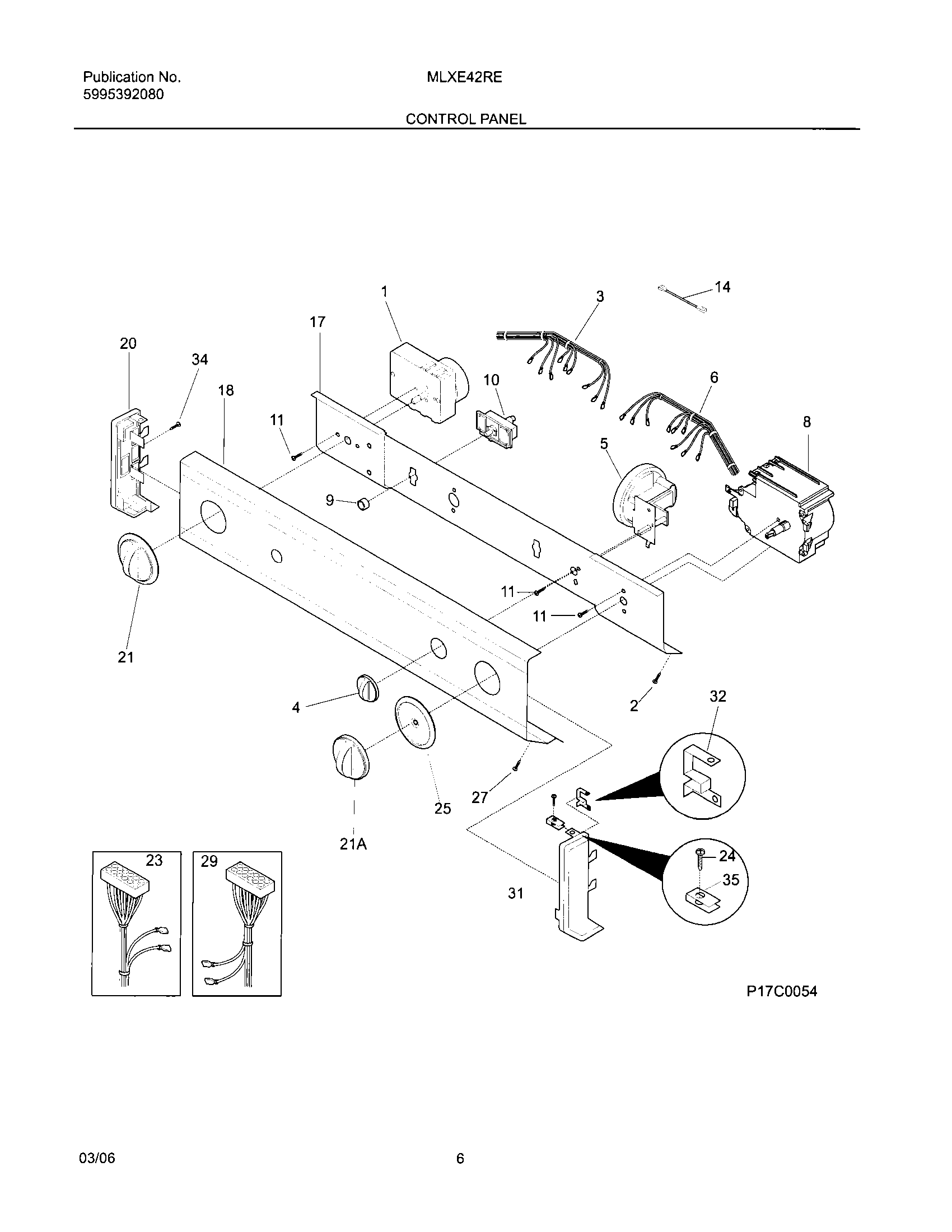

MLXE42REW8 07 – CONTROL PANEL

Products

Position	Product
NI	134101400 Frigidaire Dryer Kit Terminal Block
NI	5303161300 Frigidaire Strap
NI	WCI 5303208586
NI	Asmy-bezel black
1	TIMER-DRYER
2	131168200 Frigidaire Dryer Screw
3	WCI 131305700
4	131858004 Frigidaire Control Knob, White
5	134422700 Frigidaire Switch
6	Wiring Harness,washer control ,w/o temp switch
8	131964100 Frigidaire P1-Timer Elec H Mallor
9	KNOB-START SWITCH, BLACK
10	WCI 131628900
11	218359202 Frigidaire Refrigerator Screw
14	RESISTOR-POWER, 4.4K
17	WCI 131983410
18	WCI 131709800
20	WCI 131288100
21	131859104 Frigidaire Dryer Timer Knob
21A	WCI 131977000
23	WCI 134119400
24	134156200 Frigidaire Screw
25	WCI 131976701
27	SCREW (2)
27	131892100 Frigidaire Screw
29	WCI 134113400
31	WCI 131288210
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
