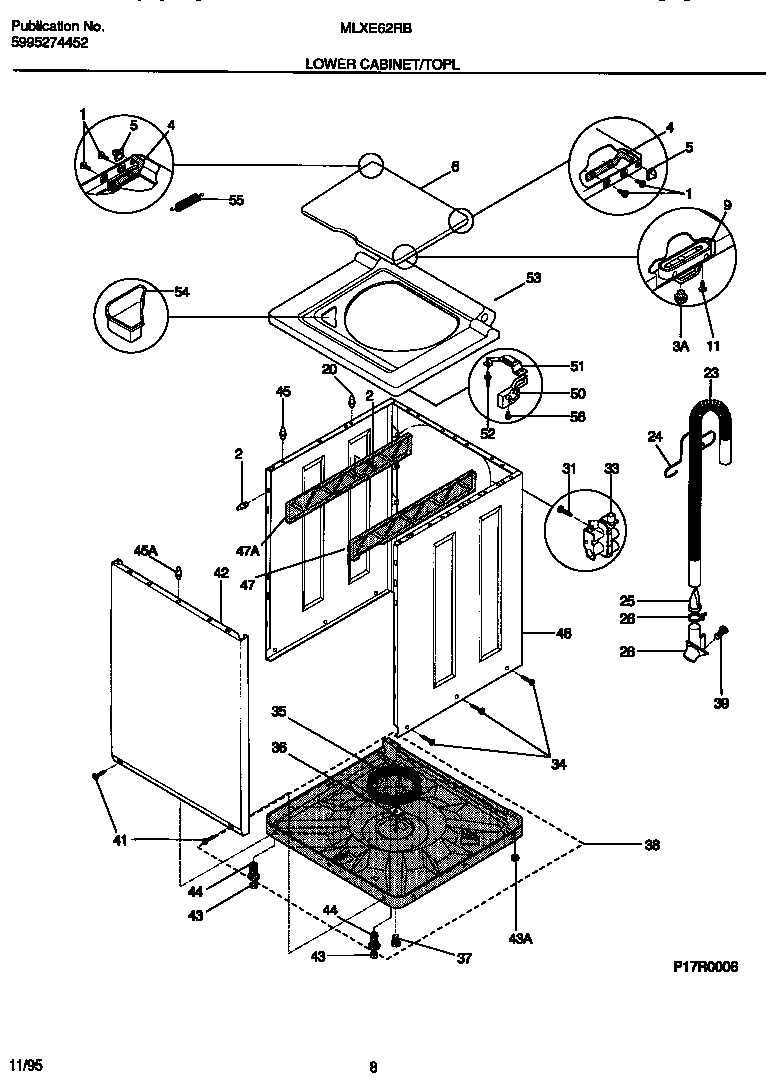

MLXE62RBD2 05 – LOWER CABINET/TOP

MLXE62RBD2 05 – LOWER CABINET/TOP

Written by

in

MLXE62RBD2 05 – LOWER CABINET/TOP

Products

PositionProduct
*01968131453000 Frigidaire Bushing
*019705303309503 Frigidaire Clip
*019695303303590 Frigidaire Dryer 4.0" Cable Tie
1SCREW
2131168200 Frigidaire Dryer Screw
3134075500 Frigidaire Bumper-LID
45304489657 Frigidaire Bar Hinge Kit
55303208743 Frigidaire Grommet
6WCI 5303212873
9131390000 Frigidaire Door Catch-Strike
113204368 Frigidaire Screw-Strike
203204374 Frigidaire Pin
23BWCI 3161250
23AWCI 131210200
24RETAINER
253204375 Frigidaire Check Valve
26WCI 131127616
28WCI 131435000
31131202300 Frigidaire Screw
33134190200 Frigidaire Washer Water Valve
34131205500 Frigidaire Screw
35SNUBBER RING
36SHIPPING BLOCK
37WCI 131102900
38WCI 5303311213
39131205100 Frigidaire Screw
41131302800 Frigidaire Drum Vane Screw
42WCI 131104305
43131422200 Frigidaire P-1 Self Level Leg Pad
43WCI 131422100
44134548800 Frigidaire Washer Leg Levelling
45WCI 131346400
45131346401 Frigidaire Pin
46WCI 131207102
47MARRIAGE BRACKET-LH
47MARRIAGE BRACKET-RH
50WCI 3205646
51BRACKET-LID LOCK
52RIVET (3)
53WCI 131452520
54WCI 3204394
55134890500 Frigidaire Spring
56131243800 Frigidaire Screw
