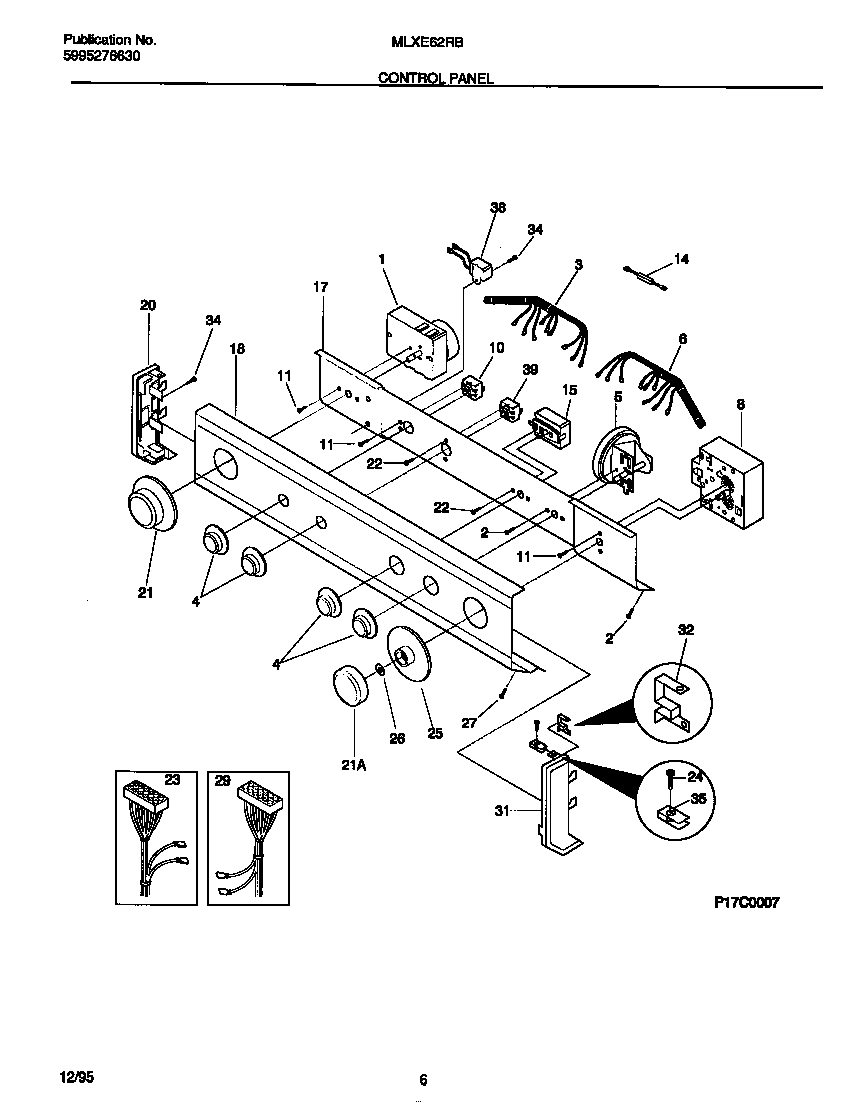

MLXE62RBD3 04 – CONTROL PANEL

MLXE62RBD3 04 – CONTROL PANEL

Written by

in

MLXE62RBD3 04 – CONTROL PANEL

Products

PositionProduct
*507645303161300 Frigidaire Strap
*50765SPACER PAD-CONTROL PANEL BRACKET (2)
*507665303303590 Frigidaire Dryer 4.0" Cable Tie
15303297177 Frigidaire Dryer Control Timer
2131168200 Frigidaire Dryer Screw
3WCI 131324000
4131858004 Frigidaire Control Knob, White
5WCI 131395600
6WCI 131446300
8131437500 Frigidaire Washer Timer
10WCI 5303209890
11218359202 Frigidaire Refrigerator Screw
14RESISTOR-POWER, 4.4K
15WCI 5308008463
17BRACKET-CONTROLS
18WCI 131330600
20WCI 131288100
21131859104 Frigidaire Dryer Timer Knob
21WCI 5303210341
22WCI 3161259
23HARNESS-MAIN DRYER
24134156200 Frigidaire Screw
25WCI 5303209901
26SPACER-TIMER-SHAFT
27SCREW (2)
29WCI 131490400
31WCI 131288210
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
38WCI 5303286537
39SWITCH-DRYER TEMP
