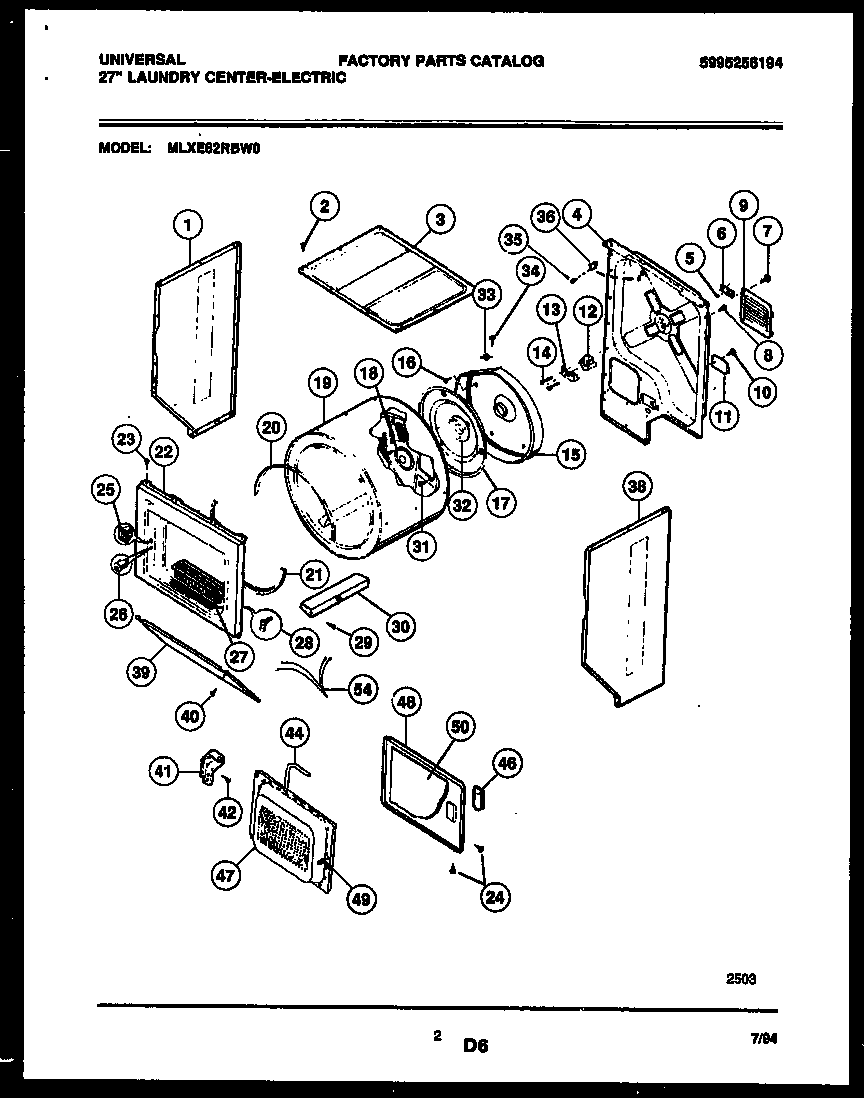

MLXE62RBW0 02 – LAUNDRY BODY PARTS

Products

Position	Product
*46518	LARGE DIA COIL 5/16" TERM
*46518	3202786 Frigidaire Terminal Block
*46518	131472100 Frigidaire Dryer Insulator Heater Coil
1	WCI 131084701
1	WCI 131084700
3	131883301 Frigidaire Panel
4	WCI 5303283283
5	5303281019 Frigidaire Ball Assembly
6	5303281020 Frigidaire Ball Clip
9	PANEL-MOTOR ACCESS
11	WCI 3204250
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15	HEATER ASSY W/HSNG
17	3204254 Frigidaire Baffle Assembly
18	SCREW (3) (PART OF REAR BEARING KIT.)
19	134138400 Frigidaire Drum Kit Assembly O/S3 Xxx
20	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
21	5303283286 Frigidaire Drum Felt Seal Lower Front
22	PANEL-FRONT, ALMOND, DRYER
22	WCI 131150702
24	134156200 Frigidaire Screw
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	SWITCH-DOOR
27	LINT FILTER
28	CLIP GUIDE (4)
29	131382300 Frigidaire Screw-VANE
30	137552900 Frigidaire Vane
31	WCI 5303207393
32	5303931781 Frigidaire Shaft
33	SAFETY THERMSTAT
34	131168200 Frigidaire Dryer Screw
35	WCI 08010804
36	134120900 Frigidaire Dryer Limiter Thermal
38	WCI 131084801
38	WCI 131084800
39	WCI 131084403
39	137546910 Frigidaire Panel
40	SCREW
41	HINGE-UPPER
41A	HINGE-LOWER
42	131302800 Frigidaire Drum Vane Screw
44	137551901 Frigidaire Gasket
46	HANDLE-DOOR-ALMOND
46	WCI 131063600
47	WCI 5303300246
47	WCI 5303300245
48	WCI 3204284
48	WCI 3204285
49	5303207102 Frigidaire Door Strike
50	134535300 Frigidaire Insulator
54	WCI 3205631
