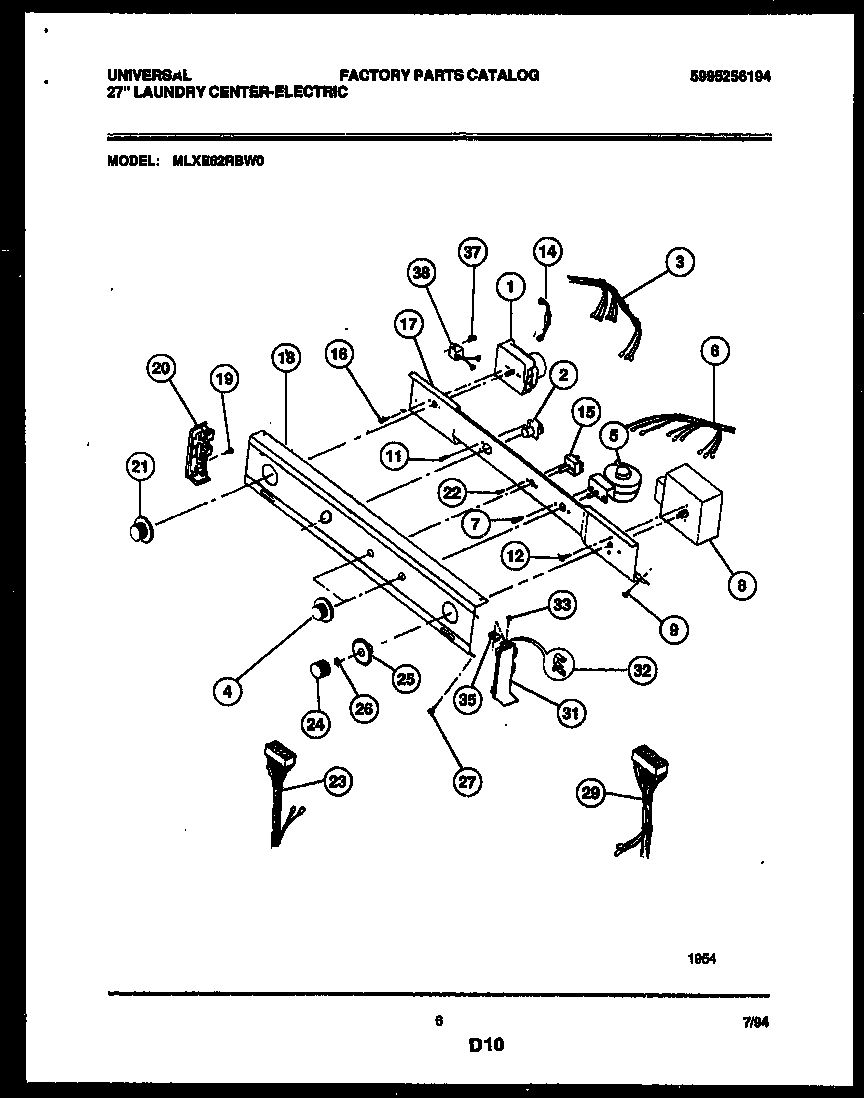

MLXE62RBW0 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
*46525	SWITCH-DRYER TEMP
*46525	SPACER PAD-CONTROL PANEL BRACKET (2)
1	5303297177 Frigidaire Dryer Control Timer
2	WCI 5303209890
3	WCI 131324000
4	131858004 Frigidaire Control Knob, White
5	WCI 5303209894
6	WCI 131205700
8	WCI 131294000
9	131168200 Frigidaire Dryer Screw
14	WCI 131285000
15	WCI 5308008463
17	WCI 131112102
18	WCI 131330600
19	131243700 Frigidaire Screw
20	WCI 5303209671
21	131859104 Frigidaire Dryer Timer Knob
22	WCI 3161259
23	HARNESS-MAIN DRYER
24	WCI 5303210341
25	WCI 5303209901
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131200500
31	WCI 5303210650
32	WCI 3204357
33	SCREW (2)
35	CLIP (8)
37	218359202 Frigidaire Refrigerator Screw
38	WCI 5303286537
