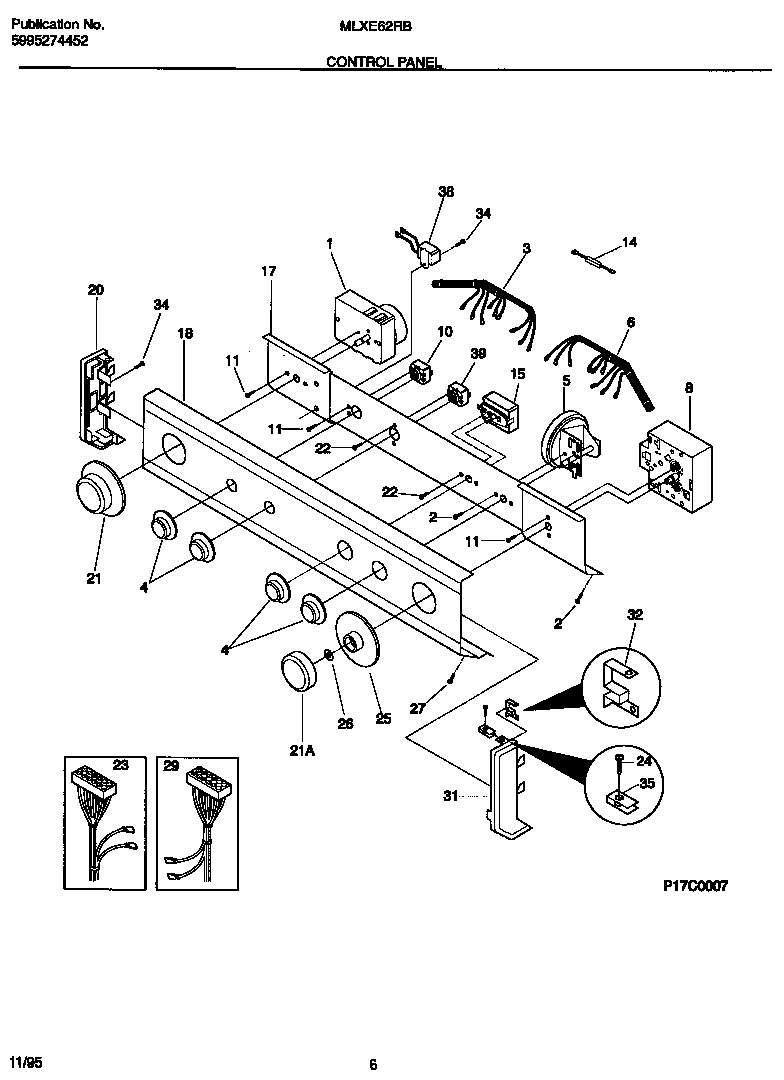

MLXE62RBW2 04 – CONTROL PANEL

Products

PositionProduct
*019655303161300 Frigidaire Strap
*01966SPACER PAD-CONTROL PANEL BRACKET (2)
*019675303303590 Frigidaire Dryer 4.0" Cable Tie
15303297177 Frigidaire Dryer Control Timer
2131168200 Frigidaire Dryer Screw
3WCI 131324000
4131858004 Frigidaire Control Knob, White
5WCI 5303209894
6HARNESS-WIRING CTRL, WASHER
8WCI 131348800
10WCI 5303209890
11218359202 Frigidaire Refrigerator Screw
14RESISTOR-POWER, 4.4K
15WCI 5308008463
17BRACKET-CONTROLS
18WCI 131330600
20WCI 131288100
21131859104 Frigidaire Dryer Timer Knob
21WCI 5303210341
22WCI 3161259
23HARNESS-MAIN DRYER
24134156200 Frigidaire Screw
25WCI 5303209901
26SPACER-TIMER-SHAFT
27SCREW (2)
29WCI 131200500
31WCI 131288210
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
38WCI 5303286537
39SWITCH-DRYER TEMP
