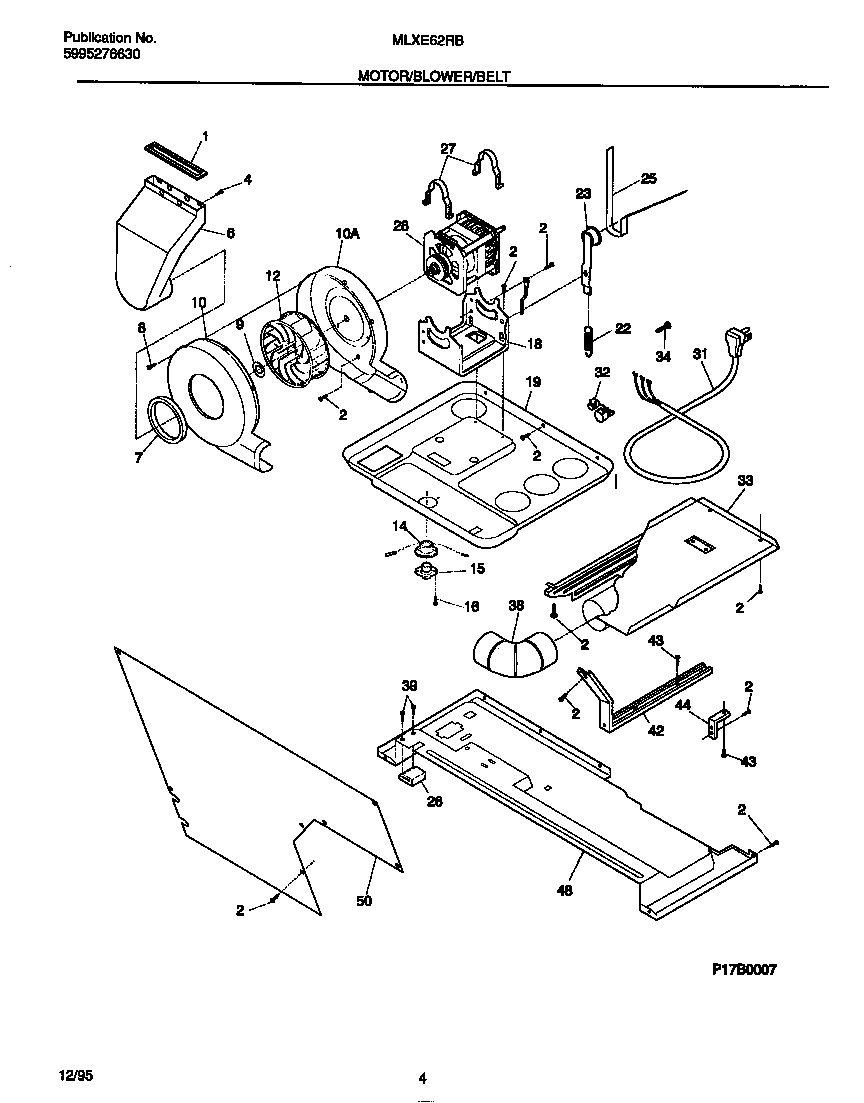

MLXE62RBW3 03 – MOTOR/BLOWER/BELT

Products

Position	Product
*50763	131453000 Frigidaire Bushing
1	131295200 Frigidaire Seal
2	131168200 Frigidaire Dryer Screw
4	131362400 Frigidaire Fastener
6	5304521121 Frigidaire Duct
7	3204490 Frigidaire Seal
8	SCREW (6)
9	5304488479 Frigidaire Washer Hose Clamp
10	WCI 5303271179
10	5304485558 Frigidaire Blower Housing Assembly, Front & Rear
12	BLOWER WHEEL
14	WCI 5303206879
15	3204307 Frigidaire Dryer Thermostat Control, L135
16	134178901 Frigidaire Screw
18	WCI 131367101
19	WCI 131363901
22	3205241 Frigidaire Idler Spring
23	IDLER ARM ASSY
25	BELT-DRYER LC
26	BLOCK-SUPPORT
27	WCI 5303212834
28	MOTOR & PULLEY (DRYER)
31	5308819003 Frigidaire 30 Amp 6'3" Dry Cord
32	WCI 3204317
33	SHIELD-ACCESS
34	131243700 Frigidaire Screw
38	ELBOW
39	131205100 Frigidaire Screw
42	BRACKET (2)
43	SCREW (2)
44	3204326 Frigidaire Bracket Assembly
48	137455500 Frigidaire Lower Pan Assembly
50	SAFETY COVER
