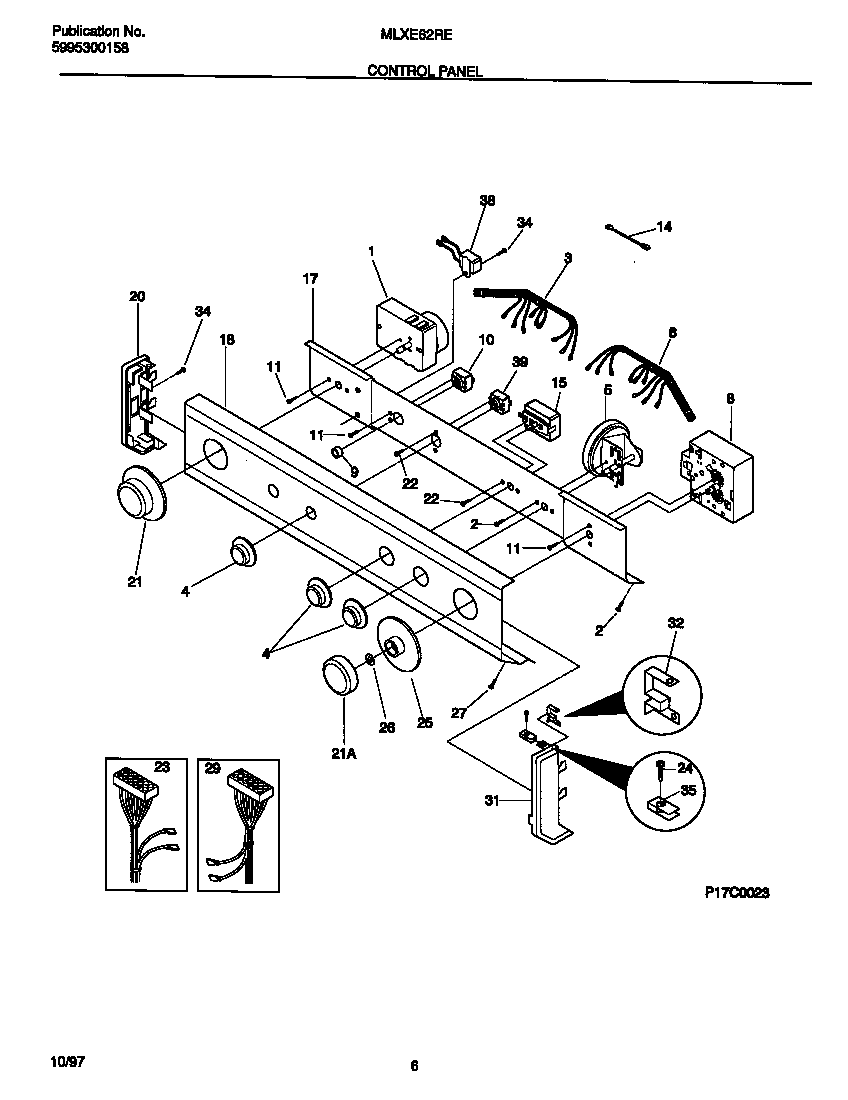

MLXE62RED3 04 – CONTROL PANEL

Written by

Products

Position	Product
*68321	5303161300 Frigidaire Strap
1	5303297177 Frigidaire Dryer Control Timer
2	131168200 Frigidaire Dryer Screw
3	WCI 131662500
4	131858004 Frigidaire Control Knob, White
5	WCI 131395600
6	WCI 131592700
8	131437500 Frigidaire Washer Timer
9	KNOB-START SWITCH, BLACK
10	WCI 131628900
11	218359202 Frigidaire Refrigerator Screw
14	RESISTOR-POWER, 4.4K
15	WCI 131621100
17	WCI 131622902
18	WCI 131624400
20	WCI 131288100
21	WCI 5303210341
21	131859104 Frigidaire Dryer Timer Knob
22	WCI 3161259
23	WCI 131512600
24	134156200 Frigidaire Screw
25	WCI 5303209901
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131520800
31	WCI 131288210
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
39	SWITCH-DRYER TEMP
