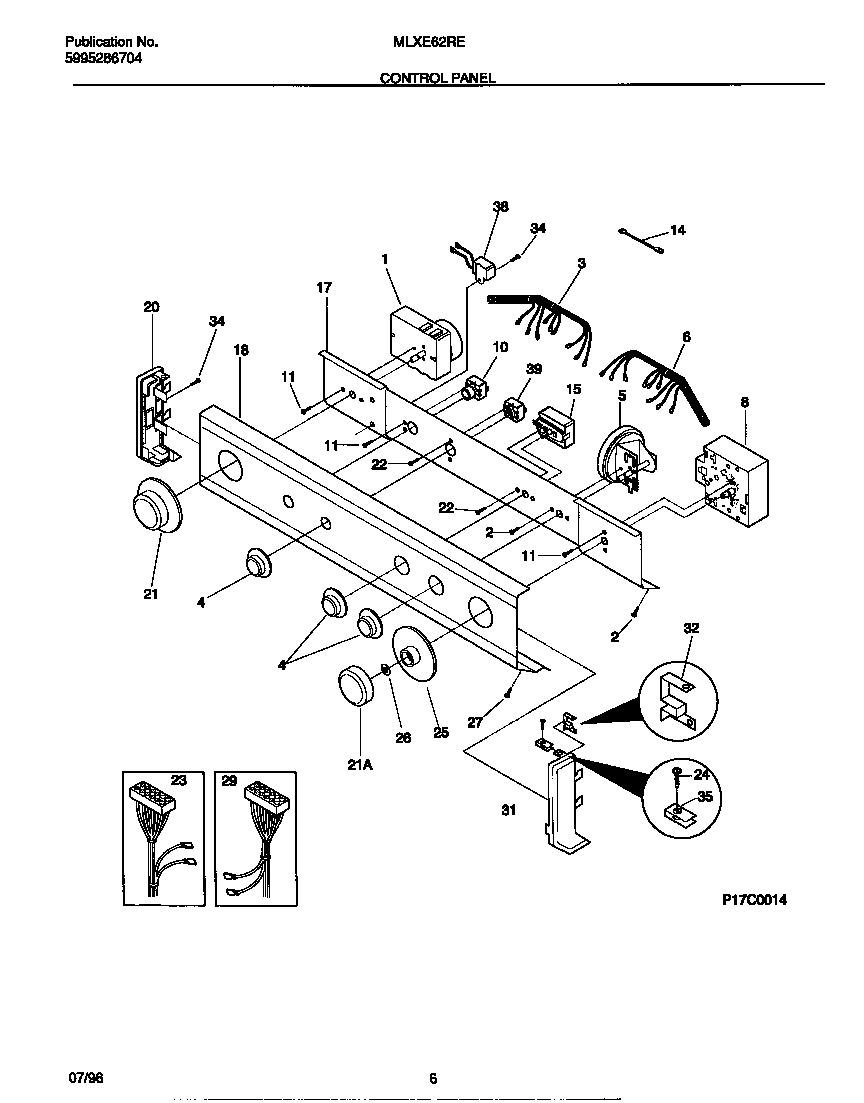

MLXE62REW1 04 – CONTROL PANEL

Products

Position	Product
*15962	5303161300 Frigidaire Strap
*15963	5303303590 Frigidaire Dryer 4.0" Cable Tie
1	5303297177 Frigidaire Dryer Control Timer
2	131168200 Frigidaire Dryer Screw
3	WCI 131324000
4	131858004 Frigidaire Control Knob, White
5	WCI 131395600
6	WCI 131446300
8	131437500 Frigidaire Washer Timer
10	WCI 5303209890
11	218359202 Frigidaire Refrigerator Screw
14	RESISTOR-POWER, 4.4K
15	WCI 5308008463
17	BRACKET-CONTROLS
18	WCI 131547300
20	WCI 131288100
21	131859104 Frigidaire Dryer Timer Knob
21	WCI 5303210341
22	WCI 3161259
23	WCI 131512600
24	134156200 Frigidaire Screw
25	WCI 5303209901
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131520800
31	WCI 131288210
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
39	SWITCH-DRYER TEMP
