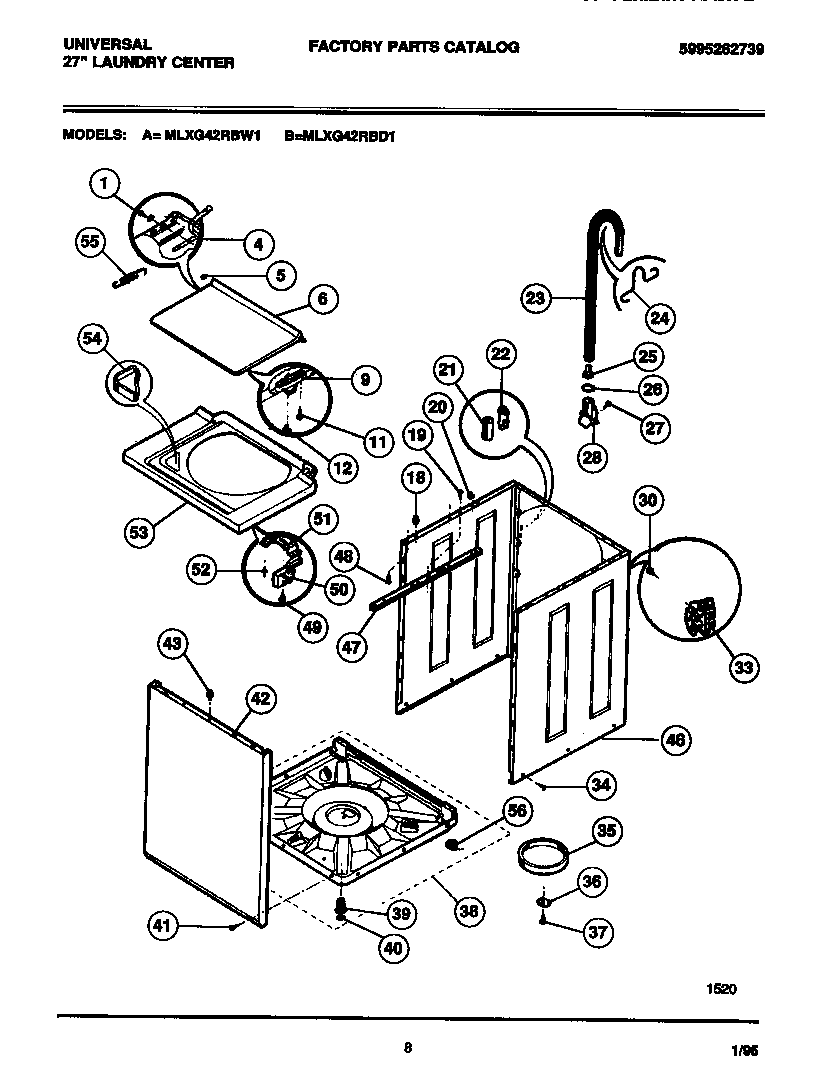

MLXG42RBD1 05 – WASHER-CABINET, TOP PANEL, BASE

Products

Position	Product
*76043	MARRIAGE BRACKET-LH
1	SCREW
4	5304489657 Frigidaire Bar Hinge Kit
5	5303208743 Frigidaire Grommet
6B	WCI 5303212873
6A	5303212872 Frigidaire Lid
9	131390000 Frigidaire Door Catch-Strike
10	WCI 5308002408
11	3204368 Frigidaire Screw-Strike
12	134075500 Frigidaire Bumper-LID
18	WCI 131346400
20	3204374 Frigidaire Pin
21	WCI 5308014903
22	WCI 5303161252
23	WCI 131210200
24	RETAINER
25	3204375 Frigidaire Check Valve
26	WCI 131127616
27	131205100 Frigidaire Screw
28	WCI 3204376
30	131202300 Frigidaire Screw
31	5303015671 Frigidaire Bracket Termination Screw
32	WCI 3204378
33	134190200 Frigidaire Washer Water Valve
34	131205500 Frigidaire Screw
35	SNUBBER RING
36	SHIPPING BLOCK
37	WCI 131102900
38	WCI 5303300247
39	134548800 Frigidaire Washer Leg Levelling
40	PAD-LEG
41	131302800 Frigidaire Drum Vane Screw
42	WCI 131104305
43	131346401 Frigidaire Pin
46	WCI 131207102
47	MARRIAGE BRACKET-RH
48	131168200 Frigidaire Dryer Screw
49	131243800 Frigidaire Screw
50	WCI 3205646
51	BRACKET-LID LOCK
52	RIVET (3)
53	WCI 5303212875
54	WCI 3204394
55	134890500 Frigidaire Spring
56	131422200 Frigidaire P-1 Self Level Leg Pad
