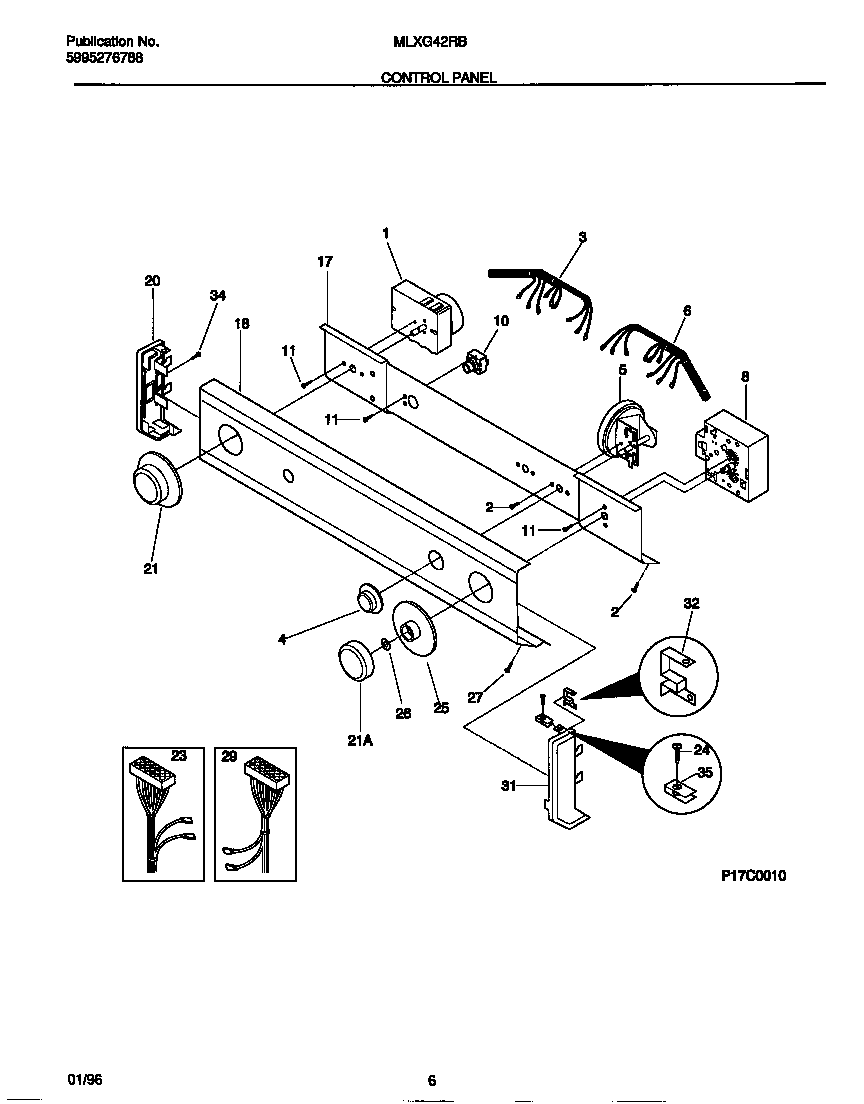

MLXG42RBD3 04 – CONTROL PANEL

MLXG42RBD3 04 – CONTROL PANEL

Written by

in

MLXG42RBD3 04 – CONTROL PANEL

Products

PositionProduct
*680095303303590 Frigidaire Dryer 4.0" Cable Tie
*68006131209800 Frigidaire Clamp
*68008SPACER PAD-CONTROL PANEL BRACKET (2)
*680075303161300 Frigidaire Strap
1WCI 131225400
2131168200 Frigidaire Dryer Screw
3WCI 131323300
4131858004 Frigidaire Control Knob, White
5WCI 5303209894
6WCI 131449600
8WCI 131437300
10WCI 5303209890
11218359202 Frigidaire Refrigerator Screw
17BRACKET-CONTROLS
18PANEL-CONTROL, ALMOND
20WCI 131288100
21131859104 Frigidaire Dryer Timer Knob
21WCI 5303210341
23HARNESS-MAIN DRYER
24134156200 Frigidaire Screw
25WCI 5303209901
26SPACER-TIMER-SHAFT
27SCREW (2)
29WCI 131490400
31WCI 131288210
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
