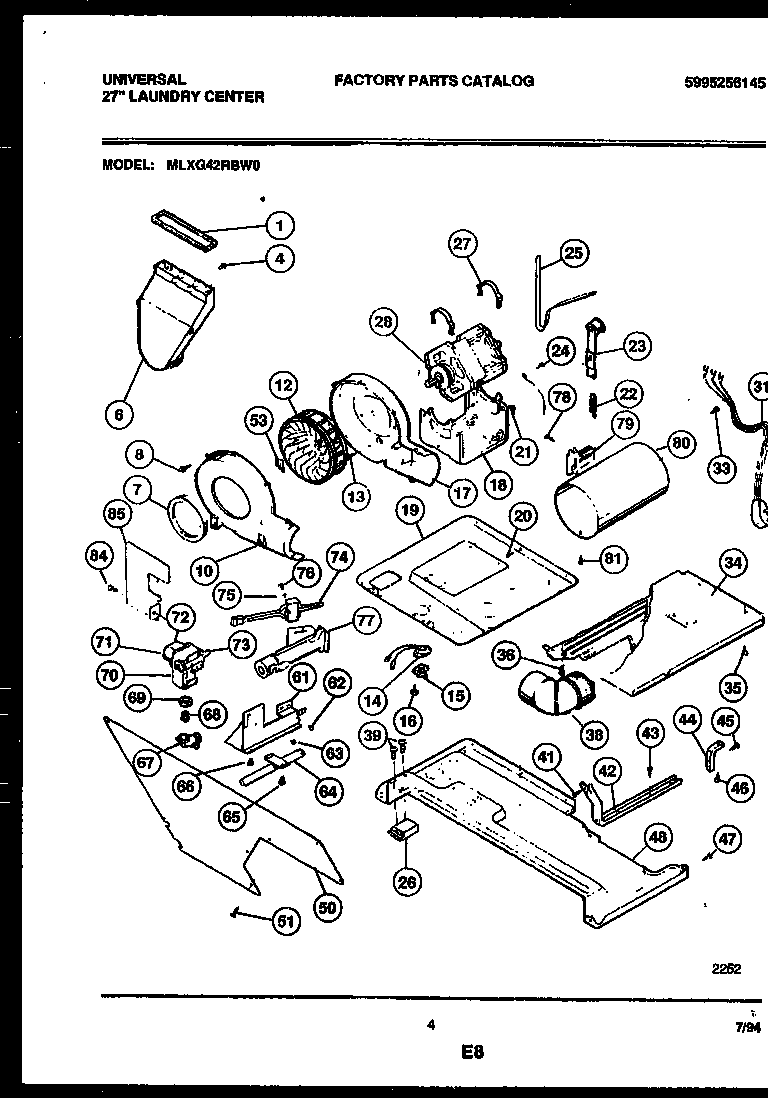

MLXG42RBW0 03 – MOTOR, BLOWER AND IDLER ARM ASSEMBL

Products

Position	Product
*46642	PCK3100 Frigidaire Conversion Kit
*46643	WCI 5303937054
*46643	WCI 5303272164
1	WCI 131151200
4	SCREW (2)
6	5304521121 Frigidaire Duct
7	3204490 Frigidaire Seal
8	SCREW (6)
10	5304485558 Frigidaire Blower Housing Assembly, Front & Rear
12	BLOWER WHEEL
14	WCI 5303207400
15	WCI 131322600
16	134178901 Frigidaire Screw
17	WCI 5303271179
19	WCI 3204311
21	WCI 3281077
22	3205241 Frigidaire Idler Spring
23	IDLER ARM
25	BELT-DRYER LC
26	BLOCK-SUPPORT
27	WCI 5303212834
28	WCI 5303283288
31	WCI 5303207402
33	134154100 Frigidaire Screw 10-32 x 0.375 Co
34	SHIELD-ACCESS
38	ELBOW
39	131205100 Frigidaire Screw
42	BRACKET (2)
44	3204326 Frigidaire Bracket Assembly
46	SCREW (2)
48	137455500 Frigidaire Lower Pan Assembly
50	SAFETY COVER
51	131302800 Frigidaire Drum Vane Screw
53	5304488479 Frigidaire Washer Hose Clamp
61	BRACKET-VALVE
63	131243800 Frigidaire Screw
64	WCI 5303207405
65	WCI 08011280
66	131243700 Frigidaire Screw
67	VALVE-ANGLE
68	TAIL PIECE
69	NUT-HEX UNION
70	DRYER GAS VALVE
71	5303931775 Frigidaire Dryer Coil Kit
73	5303207410 Frigidaire Orifice
74	5303937186 Frigidaire Dryer Flat Igniter Assembly
75	5300809968 Frigidaire Dishwasher P-1 Washer
76	131205300 Frigidaire Screw
77	WCI 131307400
79	5303281135 Frigidaire Gas Dryer Flame Sensor Radiant
80	131712405 Frigidaire Tube
81	131168200 Frigidaire Dryer Screw
84	SCREW
85	WCI 5303212889
