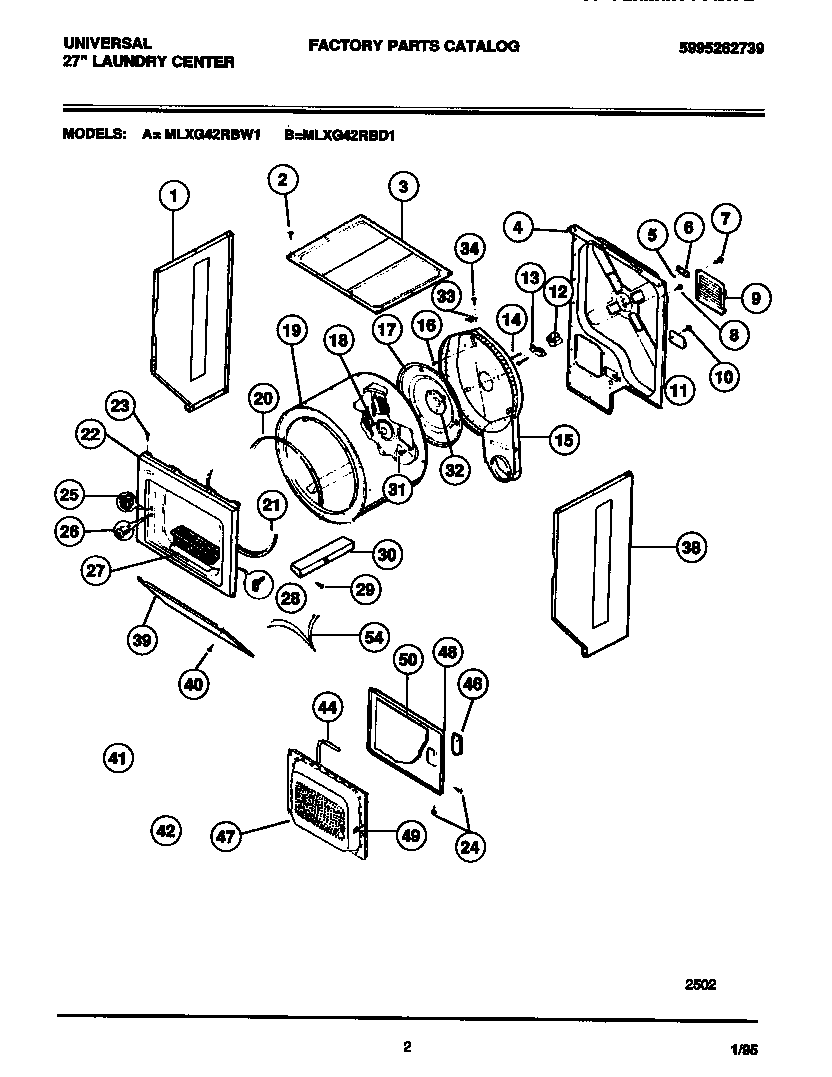

MLXG42RBW1 02 – DRYER-CABINET, DRUM, HEATER

MLXG42RBW1 02 – DRYER-CABINET, DRUM, HEATER

Written by

in

MLXG42RBW1 02 – DRYER-CABINET, DRUM, HEATER

Products

PositionProduct
1WCI 131084700
2WCI 131178200
3131883301 Frigidaire Panel
4WCI 5303283283
55303281019 Frigidaire Ball Assembly
65303281020 Frigidaire Ball Clip
9PANEL-MOTOR ACCESS
11WCI 3207395
12131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13131724301 Frigidaire Dryer Drum Bearing Bracket
14131205400 Frigidaire Screw
15HEATER HOUSING & DUCT
173204254 Frigidaire Baffle Assembly
18SCREW (3) (PART OF REAR BEARING KIT.)
19134138400 Frigidaire Drum Kit Assembly O/S3 Xxx
205303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
215303283286 Frigidaire Drum Felt Seal Lower Front
22BPANEL-FRONT, ALMOND, DRYER
22AWCI 131150702
23131168200 Frigidaire Dryer Screw
24134156200 Frigidaire Screw
25131658800 Frigidaire Dryer Door Catch Repair Kit
26SWITCH-DOOR
27LINT FILTER
28CLIP GUIDE (4)
29WCI 131205200
30137552900 Frigidaire Vane
31WCI 5303207393
325303931781 Frigidaire Shaft
33WCI 5303207396
34131243700 Frigidaire Screw
38AWCI 131084800
38BWCI 131084801
39137546910 Frigidaire Panel
39WCI 131084403
41HINGE-UPPER
42131302800 Frigidaire Drum Vane Screw
44137551901 Frigidaire Gasket
46WCI 131063600
47WCI 5303300245
48WCI 3204284
495303207102 Frigidaire Door Strike
50134535300 Frigidaire Insulator
54WCI 3205631
