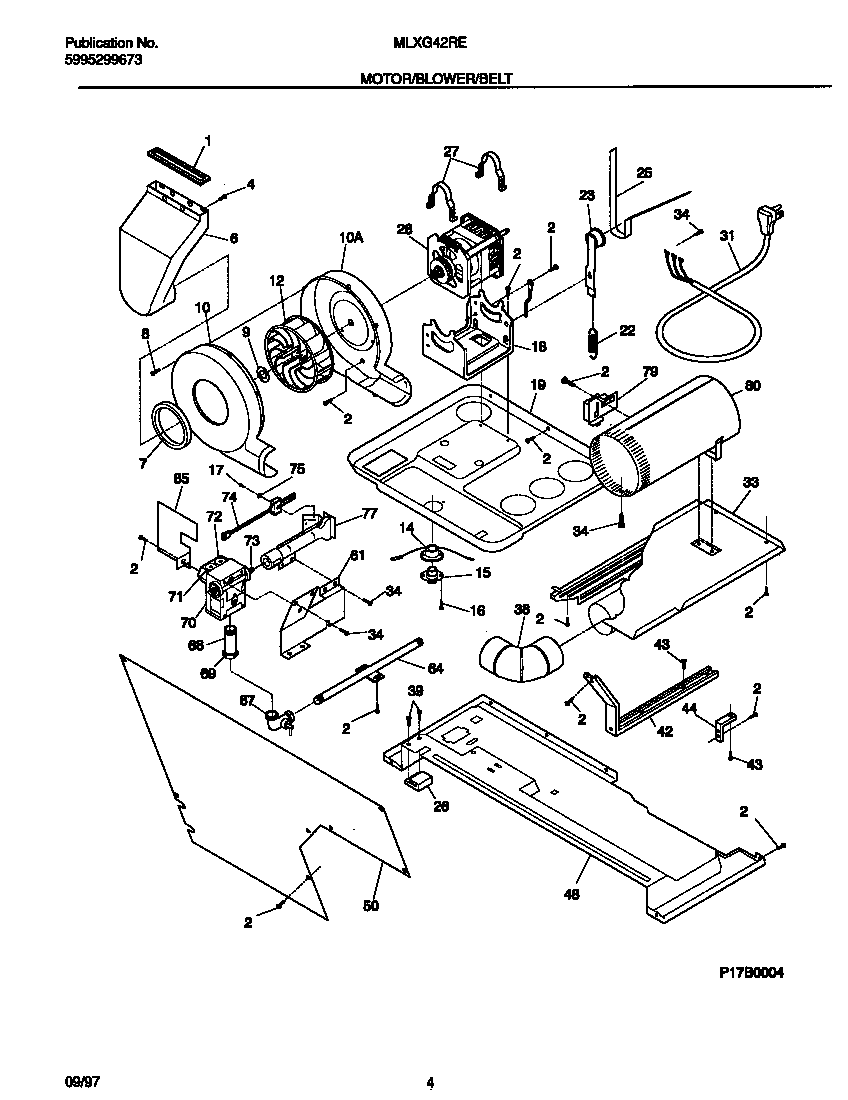

MLXG42RED2 03 – MOTOR/BLOWER/BELT

Products

Position	Product
*63763	WCI 5303937054
*63760	08015112 Frigidaire CAP
*63762	PCK3100 Frigidaire Conversion Kit
*63761	131453000 Frigidaire Bushing
1	131295200 Frigidaire Seal
2	131168200 Frigidaire Dryer Screw
4	131362400 Frigidaire Fastener
6	5304521121 Frigidaire Duct
7	3204490 Frigidaire Seal
8	SCREW (6)
9	5304488479 Frigidaire Washer Hose Clamp
10	WCI 131575200
10	5304485558 Frigidaire Blower Housing Assembly, Front & Rear
12	BLOWER WHEEL
14	WCI 5303207400
15	WCI 131322600
16	134178901 Frigidaire Screw
17	131420300 Frigidaire Screw
18	WCI 131367101
19	WCI 131363901
22	3205241 Frigidaire Idler Spring
23	IDLER ARM ASSY
25	BELT-DRYER LC
26	BLOCK-SUPPORT
27	WCI 131419800
28	5303937189 Frigidaire Drive Motor with Blower Housing
31	134500500 Frigidaire Power Cord
33	SHIELD-ACCESS
34	131243700 Frigidaire Screw
38	ELBOW
39	131205100 Frigidaire Screw
42	BRACKET (2)
43	SCREW (2)
44	3204326 Frigidaire Bracket Assembly
48	137455500 Frigidaire Lower Pan Assembly
50	SAFETY COVER
61	BRACKET-VALVE
64	WCI 5303207405
67	VALVE-SHUT OFF
68	TAIL PIECE
69	NUT-HEX UNION
70	DRYER GAS VALVE
71	5303931775 Frigidaire Dryer Coil Kit
73	5303207410 Frigidaire Orifice
74	5303937186 Frigidaire Dryer Flat Igniter Assembly
75	5300809968 Frigidaire Dishwasher P-1 Washer
77	WCI 131637400
79	5303281135 Frigidaire Gas Dryer Flame Sensor Radiant
80	131712405 Frigidaire Tube
85	WCI 5303212889
