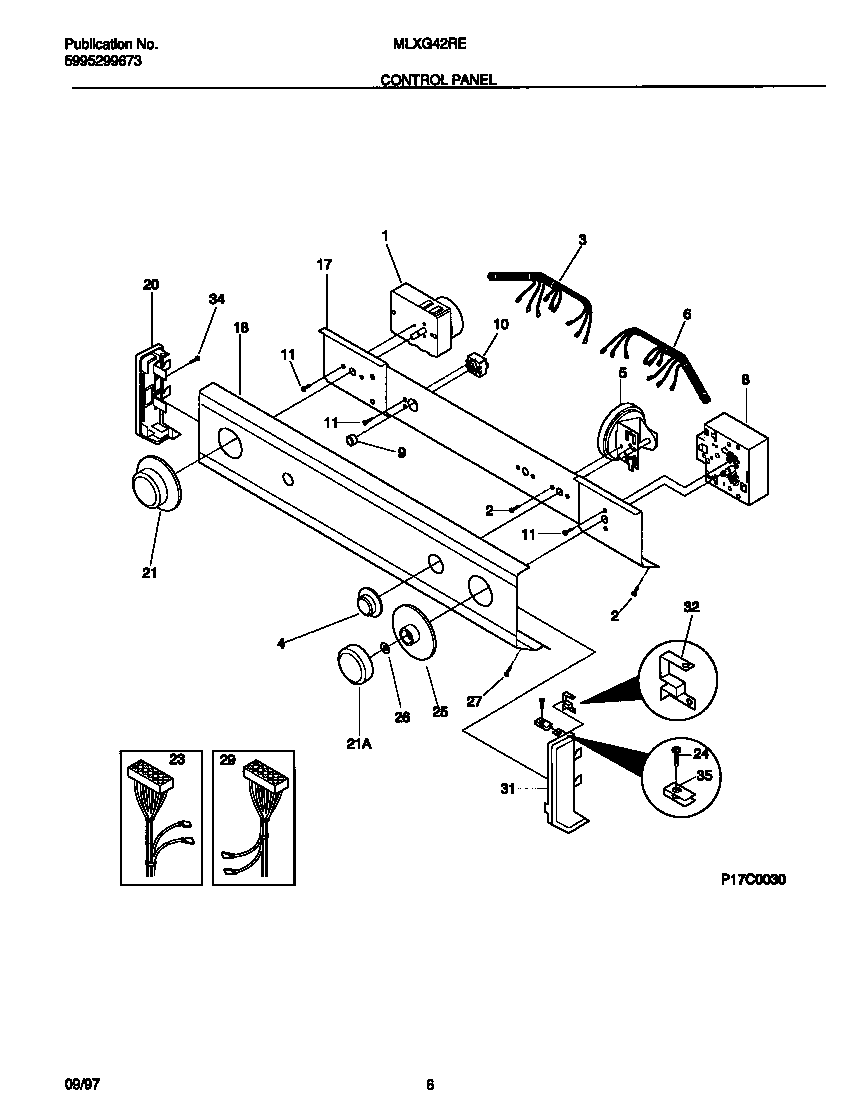

MLXG42RED2 04 – CONTROL PANEL

Products

Position	Product
*63765	5303161300 Frigidaire Strap
*63764	131209800 Frigidaire Clamp
1	WCI 131225400
2	131168200 Frigidaire Dryer Screw
3	WCI 131323300
4	131858004 Frigidaire Control Knob, White
5	WCI 5303209894
6	WCI 131449600
8	WCI 131437300
9	KNOB-START SWITCH, BLACK
10	WCI 131628900
11	218359202 Frigidaire Refrigerator Screw
17	WCI 131622902
18	WCI 131624200
20	WCI 131288100
21	131859104 Frigidaire Dryer Timer Knob
21	WCI 5303210341
23	WCI 131491400
24	134156200 Frigidaire Screw
25	WCI 5303209901
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131520800
31	WCI 131288210
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
