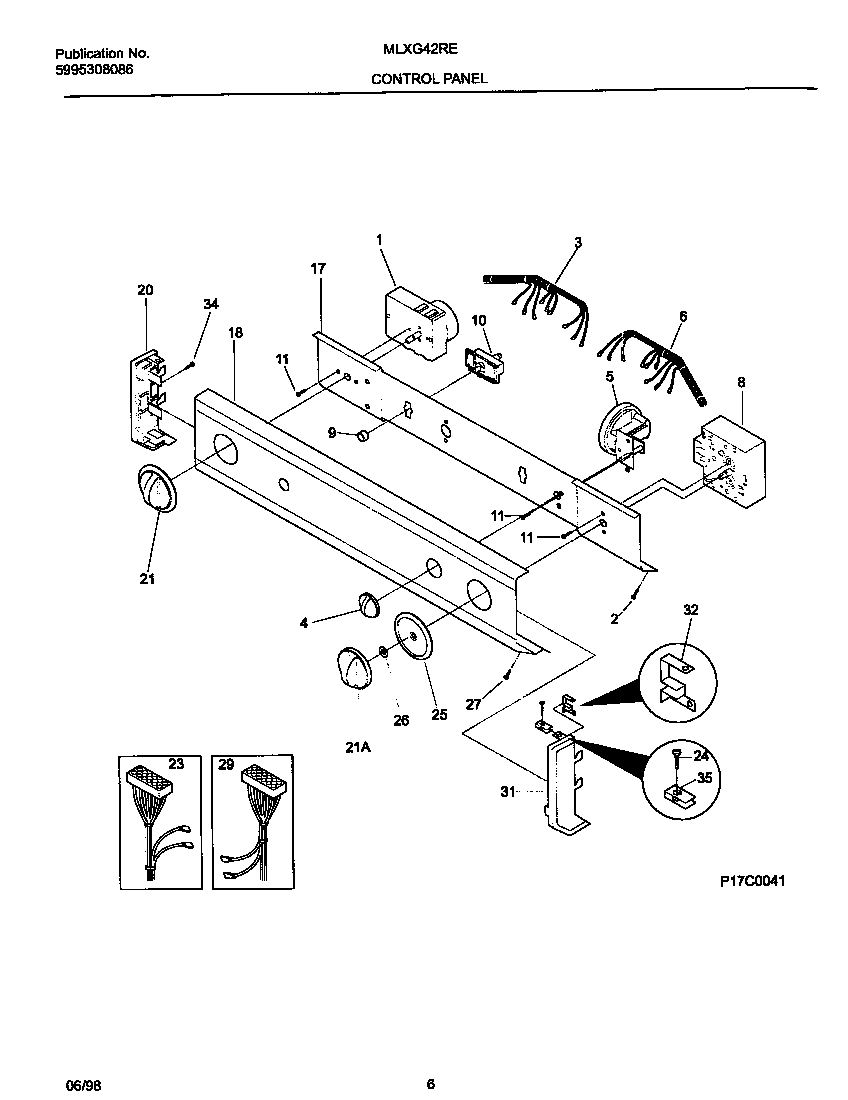

MLXG42RED3 04 – CONTROL PANEL

Products

Position	Product
*78883	5303161300 Frigidaire Strap
*78882	131209800 Frigidaire Clamp
1	WCI 131225400
3	WCI 131323300
4	131858004 Frigidaire Control Knob, White
5	134422700 Frigidaire Switch
6	WCI 131694400
7	131168200 Frigidaire Dryer Screw
8	WCI 131437300
9	KNOB-START SWITCH, BLACK
10	WCI 131628900
11	218359202 Frigidaire Refrigerator Screw
17	WCI 131693302
18	WCI 131709800
20	WCI 131288100
21	WCI 5303210341
21	131859104 Frigidaire Dryer Timer Knob
23	WCI 131658300
24	134156200 Frigidaire Screw
25	WCI 5303209901
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131520800
31	WCI 131288210
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
