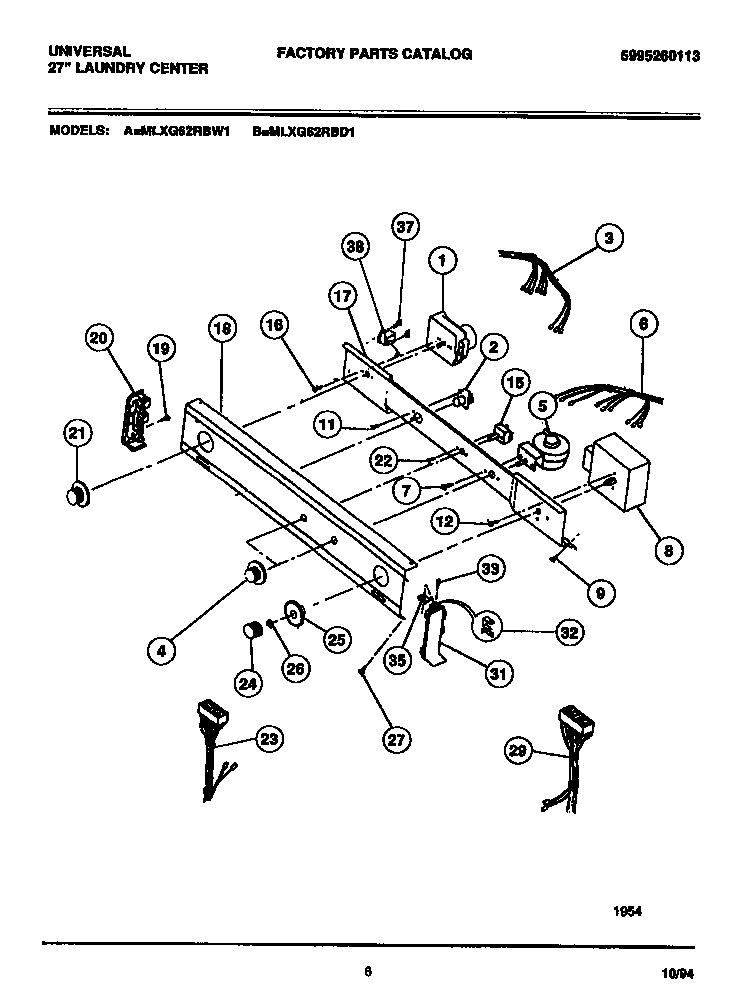

MLXG62RBD1 04 – CONSOLE & CONTROLS

MLXG62RBD1 04 – CONSOLE & CONTROLS

Written by

in

MLXG62RBD1 04 – CONSOLE & CONTROLS

Products

PositionProduct
*87527SWITCH-DRYER TEMP
*87522SPACER PAD-CONTROL PANEL BRACKET (2)
1TIMER
2WCI 5303209890
3WCI 131324000
4131858004 Frigidaire Control Knob, White
5WCI 5303209894
6WCI 131205700
8WCI 131294000
9131168200 Frigidaire Dryer Screw
12218359202 Frigidaire Refrigerator Screw
15WCI 5308008463
17BRACKET-CONTROLS
18WCI 131330600
20WCI 5303209671
21131859104 Frigidaire Dryer Timer Knob
22WCI 3161259
23HARNESS-MAIN DRYER
24WCI 5303210341
25WCI 5303209901
26SPACER-TIMER-SHAFT
27SCREW (2)
29WCI 131200500
31WCI 5303210650
32WCI 3204357
33134156200 Frigidaire Screw
35CLIP (8)
37131243700 Frigidaire Screw
38WCI 5303286537
