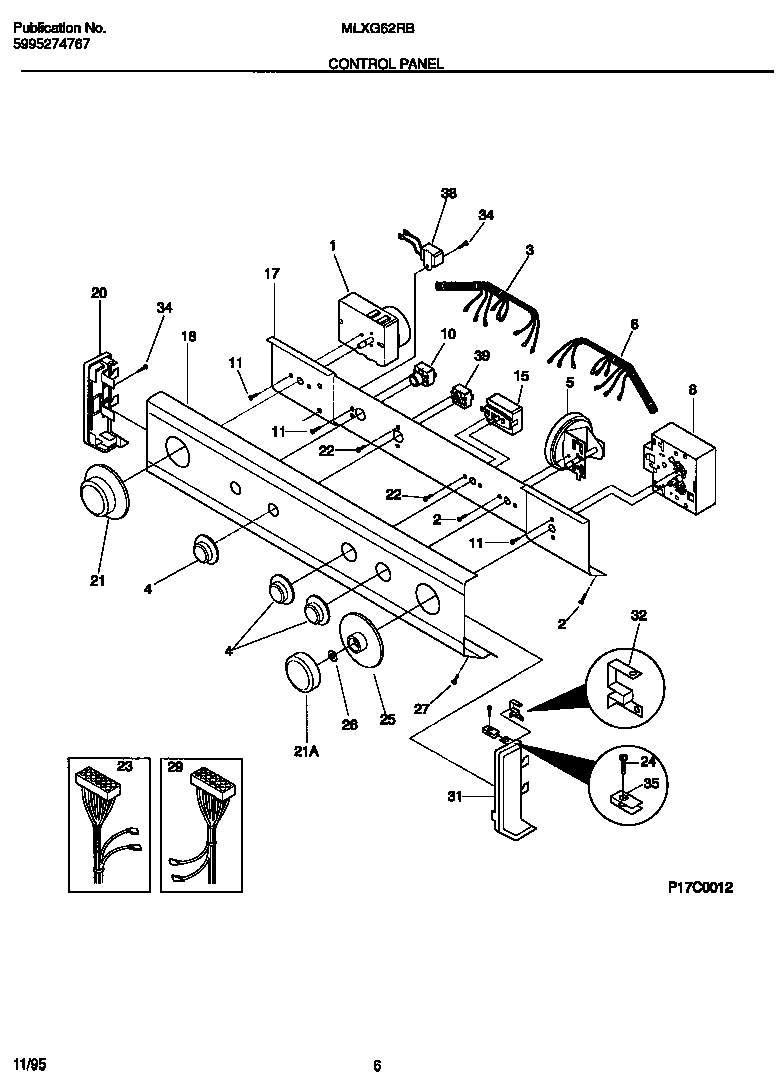

MLXG62RBD2 04 – CONTROL PANEL

Products

Position	Product
*95930	5303161300 Frigidaire Strap
*95929	131209800 Frigidaire Clamp
*95932	5303303590 Frigidaire Dryer 4.0" Cable Tie
*95928	CLIP
*95931	SPACER PAD-CONTROL PANEL BRACKET (2)
1	TIMER
2	131168200 Frigidaire Dryer Screw
3	WCI 131324100
4	131858004 Frigidaire Control Knob, White
5	WCI 5303209894
6	HARNESS-WIRING CTRL, WASHER
8	WCI 131348800
10	WCI 5303209890
11	218359202 Frigidaire Refrigerator Screw
15	WCI 5308008463
17	BRACKET-CONTROLS
18	WCI 131330600
20	WCI 131288100
21	131859104 Frigidaire Dryer Timer Knob
21	WCI 5303210341
22	WCI 3161259
23	HARNESS-MAIN DRYER
24	134156200 Frigidaire Screw
25	WCI 5303209901
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131200500
31	WCI 131288210
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
39	SWITCH-DRYER TEMP
