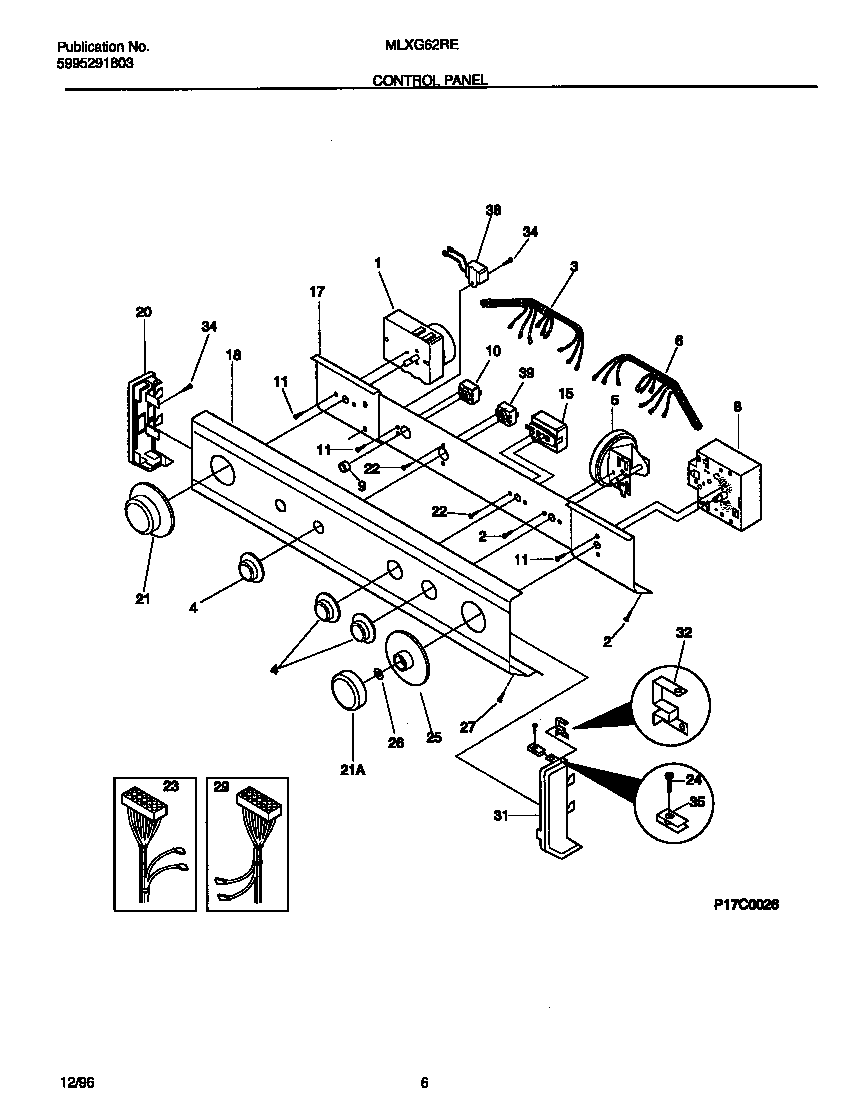

MLXG62REW1 04 – CONTROL PANEL

MLXG62REW1 04 – CONTROL PANEL

Written by

in

MLXG62REW1 04 – CONTROL PANEL

Products

PositionProduct
*83444131209800 Frigidaire Clamp
*834455303161300 Frigidaire Strap
1TIMER
2131168200 Frigidaire Dryer Screw
3WCI 131324100
4131858004 Frigidaire Control Knob, White
5WCI 131395600
6WCI 131592700
8131437500 Frigidaire Washer Timer
9KNOB-START SWITCH, BLACK
10WCI 131628900
11218359202 Frigidaire Refrigerator Screw
15WCI 131621100
17WCI 131622902
18WCI 131624400
20WCI 131288100
21WCI 5303210341
21131859104 Frigidaire Dryer Timer Knob
22WCI 3161259
23WCI 131491400
24134156200 Frigidaire Screw
25WCI 5303209901
26SPACER-TIMER-SHAFT
27SCREW (2)
29WCI 131520800
31WCI 131288210
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
38WCI 5303286537
39SWITCH-DRYER TEMP
