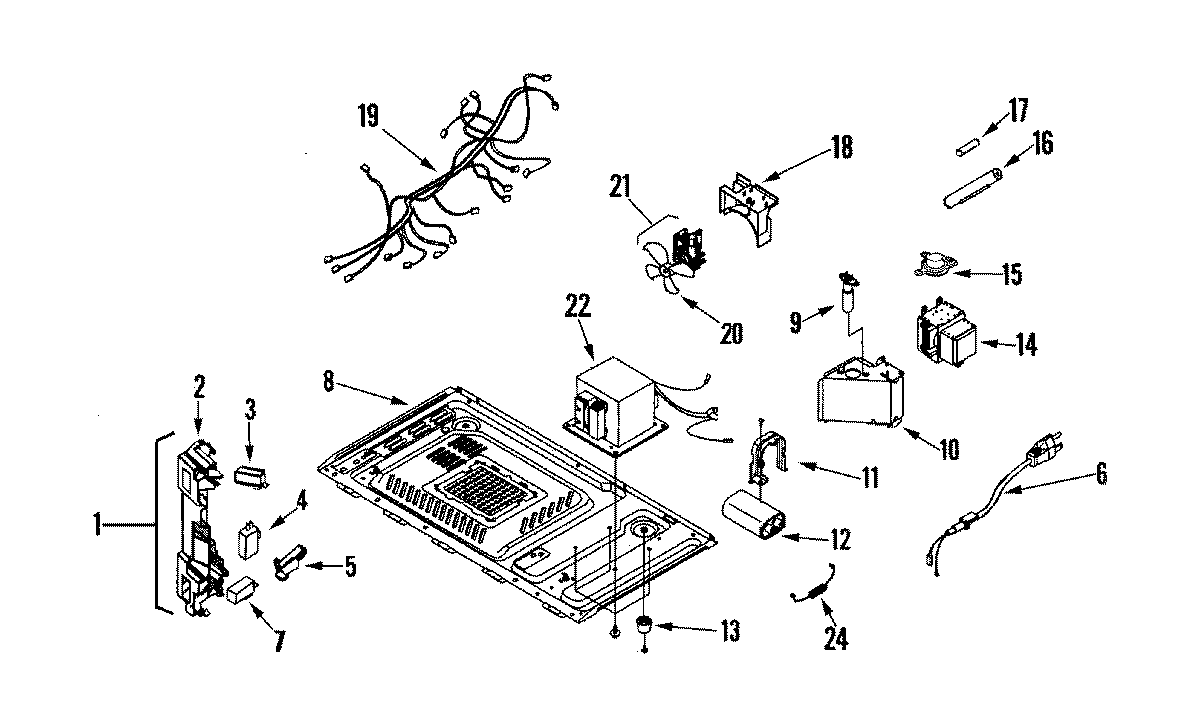

MMC5080AAW 03 – INTERNAL CONTROLS/LATCH ASY./BASE

Written by

Products

Position	Product
1	MAY DE96-00115A
2	MAY DE66-40001D
3	MAY 3405-001033
4	WP3405-001034 Whirlpool Microwave Switch
5	LEVER-DOOR
6	MAY DE39-00040E
7	MAY 3405-001042
8	DE61-00557A Samsung Base Plate
9	4713-001102 Samsung Microwave Incandescent Lamp 125V 25W
10	MAY DE71-60457B
11	MAY DE61-00139A
12	DE91-70063D Samsung Oven Microwave High Voltage Diode
12	MAY DE59-00005A
13	FOOT
14	WPW10126794 Whirlpool Microwave Magnetron
15	DE47-20173A Samsung Thermostat
17	MAY 3601-001197
18	MAY DE71-00148A
19	MAY DE96-00382A
21	DE96-00086B Samsung Motor Fan Assembly
22	DE26-00094A Samsung Transformer H.V.
