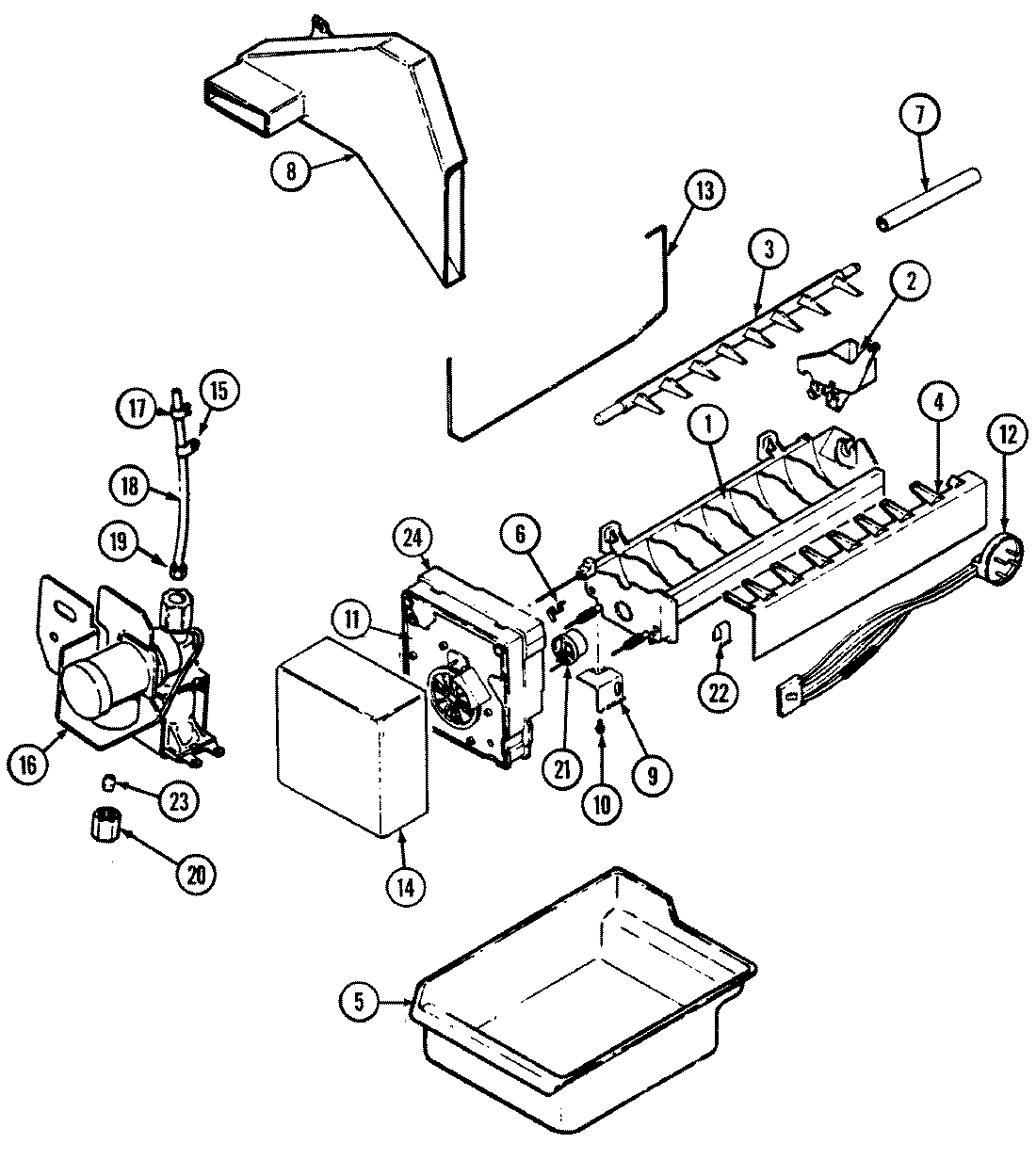

MMD1700CGE 04 – OPTIONAL ICE MAKER KIT (ICE-25)

Products

Position	Product
1	WP99003172 Whirlpool Silicone L
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	MAY 68327-1
6	WP2315522 Whirlpool Refrigerator Clip
7	MAY 67666-8
8	MAY 68412-3
8	MAY 68412-2
8	MAY 68412-1
9	BRACKET, MODULE & HEATER
10	MAY 95108-1
11	MAY Y06100048
11	MAY 400021-1
12	MAY 70076-2
13	MAY 68112-1
14	MAY 68328-2
15	MAY 23197-8
15	W10833902 Whirlpool Refrigerator Clamp
15	SCREW
16	MAY 401017-1
16	MAY 69364-2
17	WPM0114003 Whirlpool Microwave Speed Clip Clamp
18	MAY 67579-6
19	WP627018 Whirlpool Refrigerator Nut
20	WP245183 Whirlpool Nut
21	MAY 95093-1
21	WP627985 Whirlpool Icemaker Cycling Thermostat
22	MAY 68118-1
23	WP487627 Whirlpool Refrigerator Sleeve
24	SCREW
24	WP2195914 Whirlpool Refrigerator Ice Maker Housing
