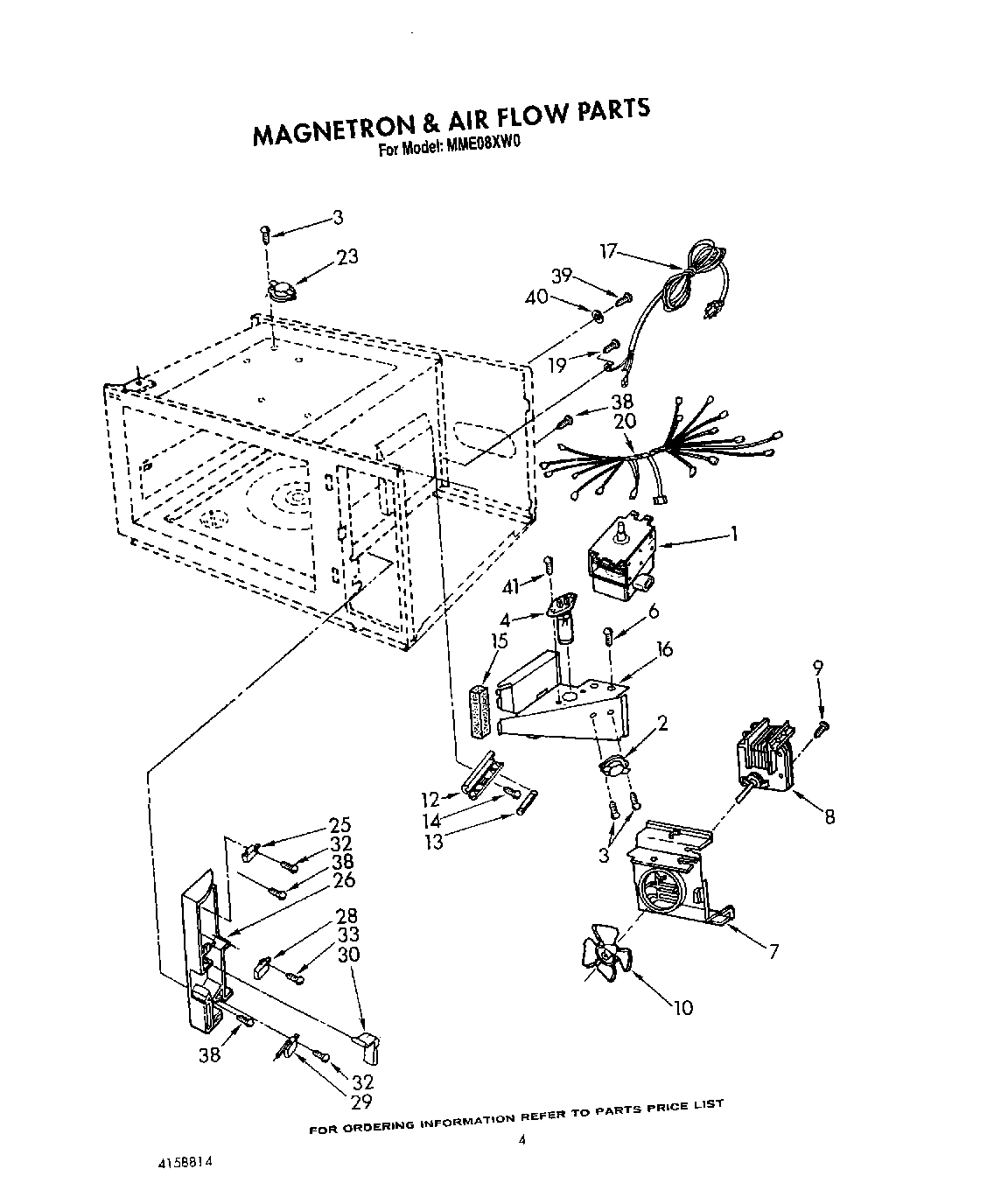

MME08XW0 04 – MAGNETRON AND AIR FLOW, LIT/OPTIONAL

MME08XW0 04 – MAGNETRON AND AIR FLOW, LIT/OPTIONAL

Written by

in

MME08XW0 04 – MAGNETRON AND AIR FLOW, LIT/OPTIONAL

Products

PositionProduct
Repair Parts List
Tech Sheet
Under The cabinet Mounting Kit
Installation Instructions for 4158693 Kit
Wall Template
Guide, Use And Care
U.T.C. Card
1Magnetron
2Thermostat
3Screw (2)
4Base Less Light
6Screw
7Bracket, Fan
8Motor, Fan
9Screw (2)
108184292 Whirlpool Microwave Fan Blade
12Holder, Fuse
13Fuse
14Screw (2)
15Cushion
16Air Duct
17Cord, Power
19Screw
20Wiring Harness
23Thermostat, Oven
254392027 Whirlpool Microwave Primary Switch
26Latch Board
29Micro Switch, Secondary
30Release Rod
32Screw (2)
33Screw
38Special Screw (2)
39Screw (2)
40Washer
41W11380570 Whirlpool Microwave Screw
