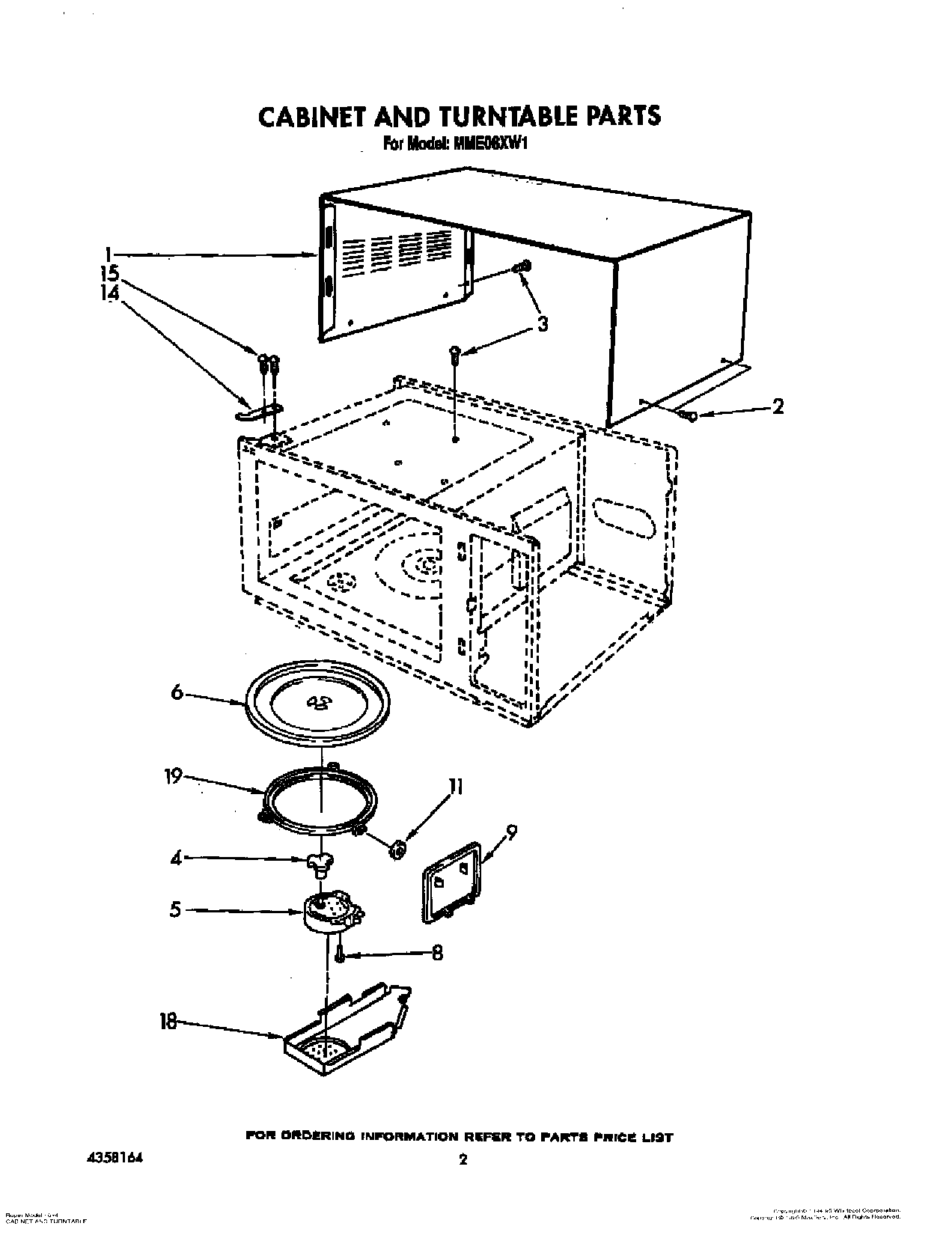

MME08XW1 02 – CABINET AND TURNTABLE

MME08XW1 02 – CABINET AND TURNTABLE

Written by

in

MME08XW1 02 – CABINET AND TURNTABLE

Products

PositionProduct
1Cabinet Wrapper
2Screw
3W11380570 Whirlpool Microwave Screw
4Shaft, Turntable
5Motor, Turntable
6Tray, Glass
8Screw (2)
9Cap, Air Guide
11Roller, Table (3)
14Hinge Plate, Upper
15Screw (2)
18Cover, Turntable Motor
19Base, Turntable
